Custom Lithium ion Battery Pack

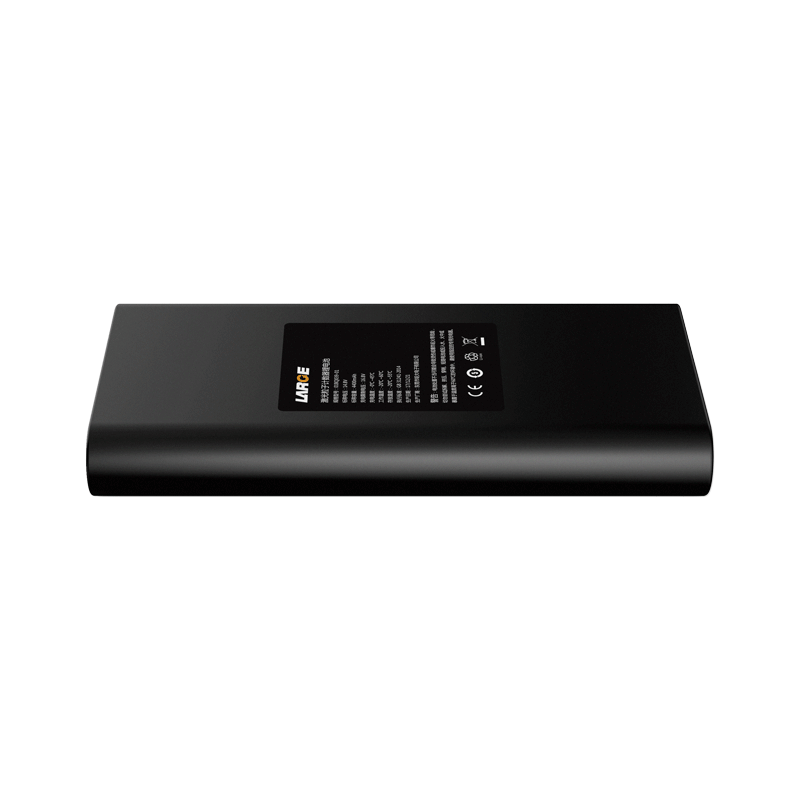

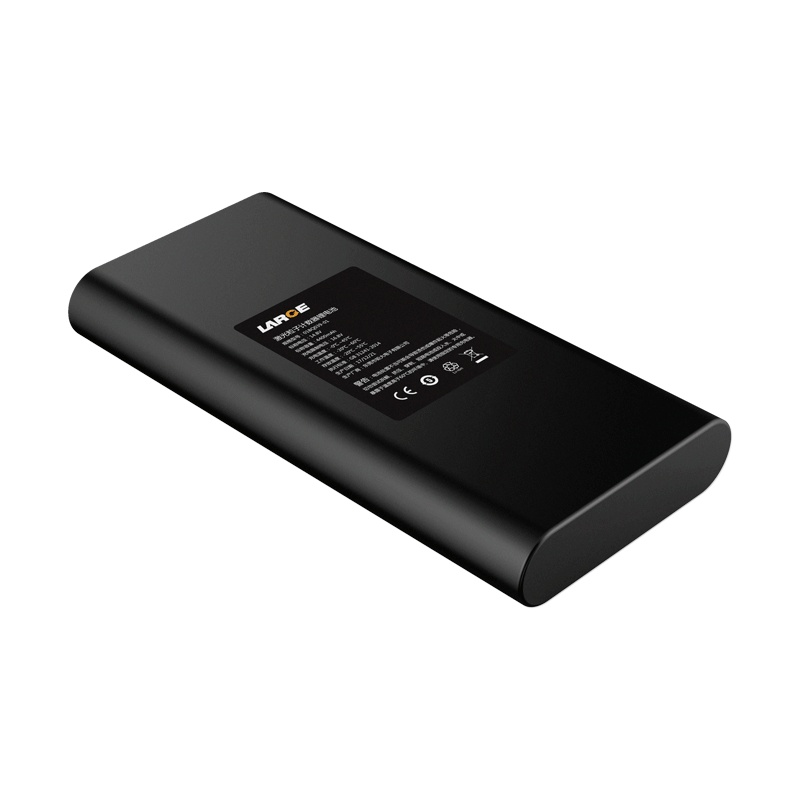

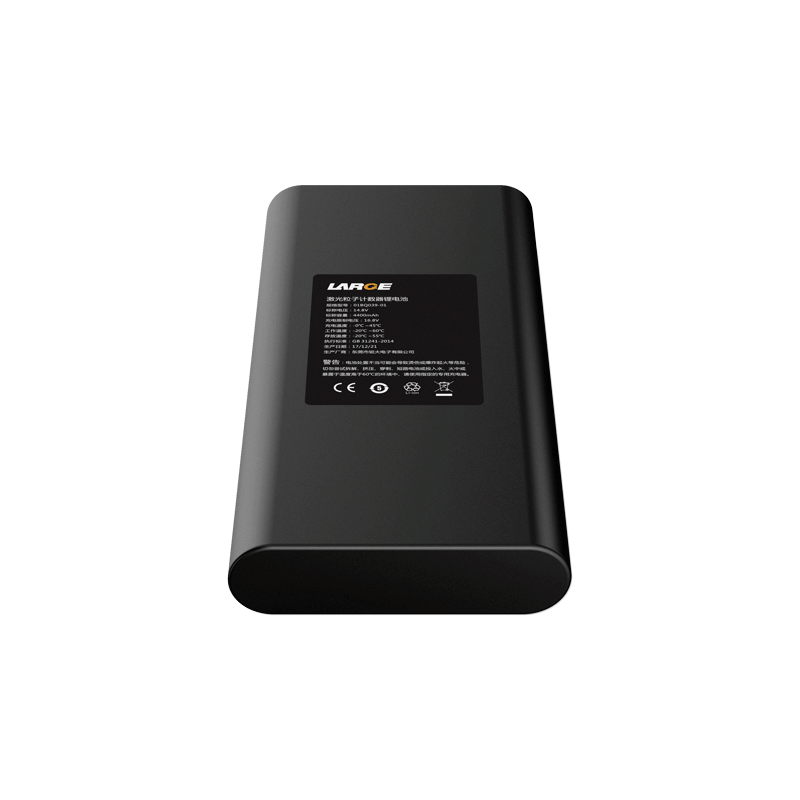

14.8V 4400mAh 18650 Ternary Battery Bak Battery for Laser Particle Counter

Product Detail

Product number: 01BQ039-01

Combination mode: ICR18650-4S2P

Nominal voltage: 14.8V

Nominal capacity: 4400mAh

Standard continuous discharge current: 0.2C

Maximum continuous discharge current: 1C

Operating temperature: Charging: 0~45℃ Discharge: -20~60℃

Product dimension: MAX 19.7*71*147.3mm

Finished product internal resistance: 280 mΩ or less

Lead model: UL1007/20#, 50mm in length


*
*
*
