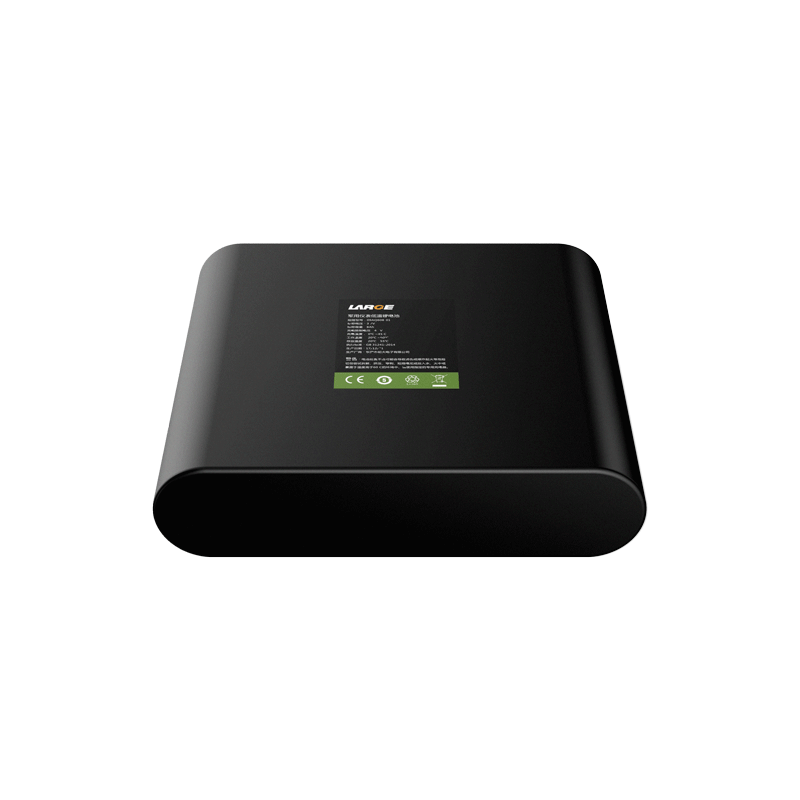

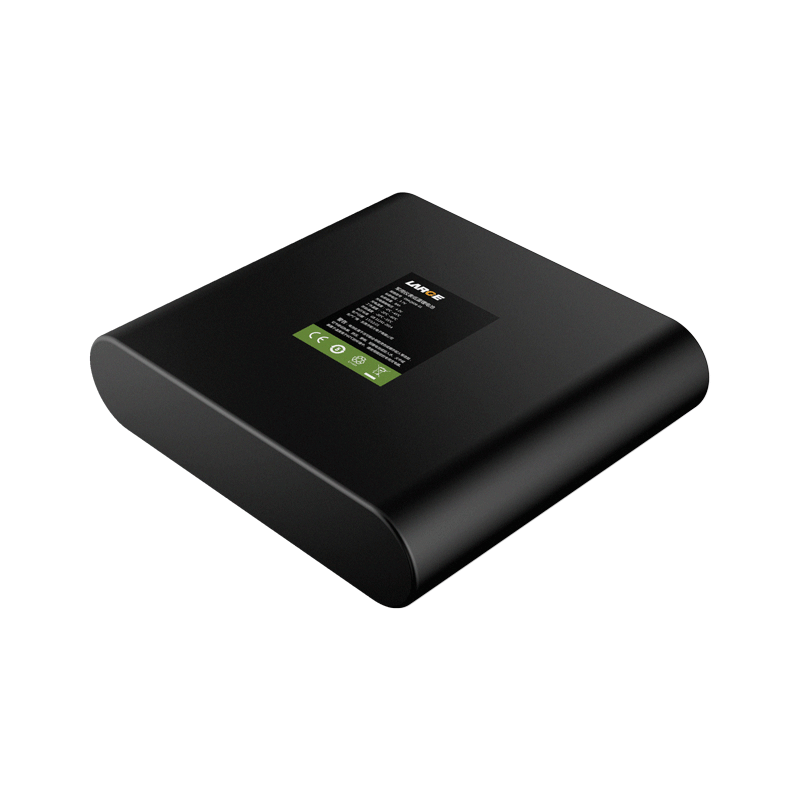

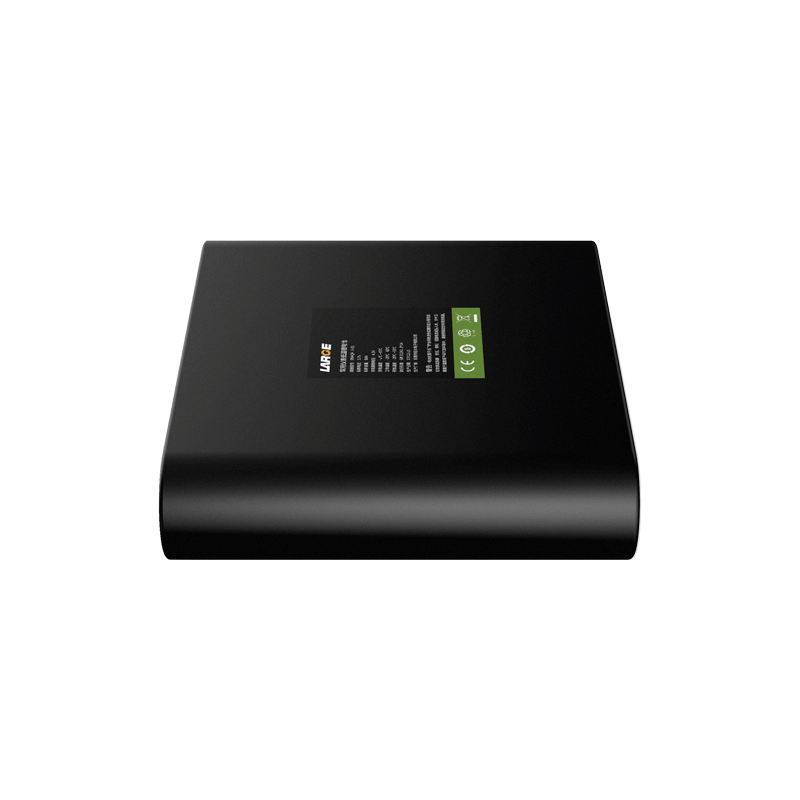

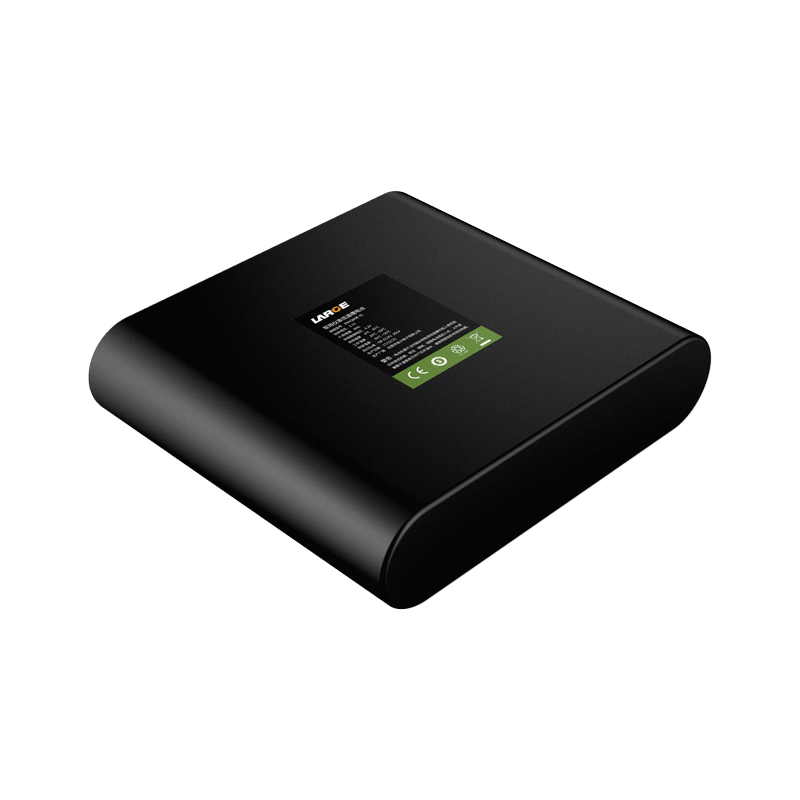

Custom Lithium Ion Battery Pack

3.7V 8000mAh 18650 Low Temperature Lithium Battery for Military Instrument

  • Model number:09AQ608-01

  • Nominal voltage:3.7V

  • Nominal capacity:8000mAh

  • Battery cell:18650/3.7V/2000mAh

  • Dimension:85*72*22mm(Max)

  • Application:military low temperature instrument

Product Detail

Product number: 09AQ608-01

Cell model:18650/3.7V/2000mAh

Battery specification: 18650-1S4P/3.7V/8000mAh

Nominal voltage:3.7V

Nominal capacity:8Ah

Charging voltage: 4.2V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 4A

End-off voltage: 2.3V

Internal resistance: ≤150mΩ

Battery weight: 180g

Product dimension: 85*72*22mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~60℃

Storage temperature: -20~35℃

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: military low temperature instrument


*
*
*
