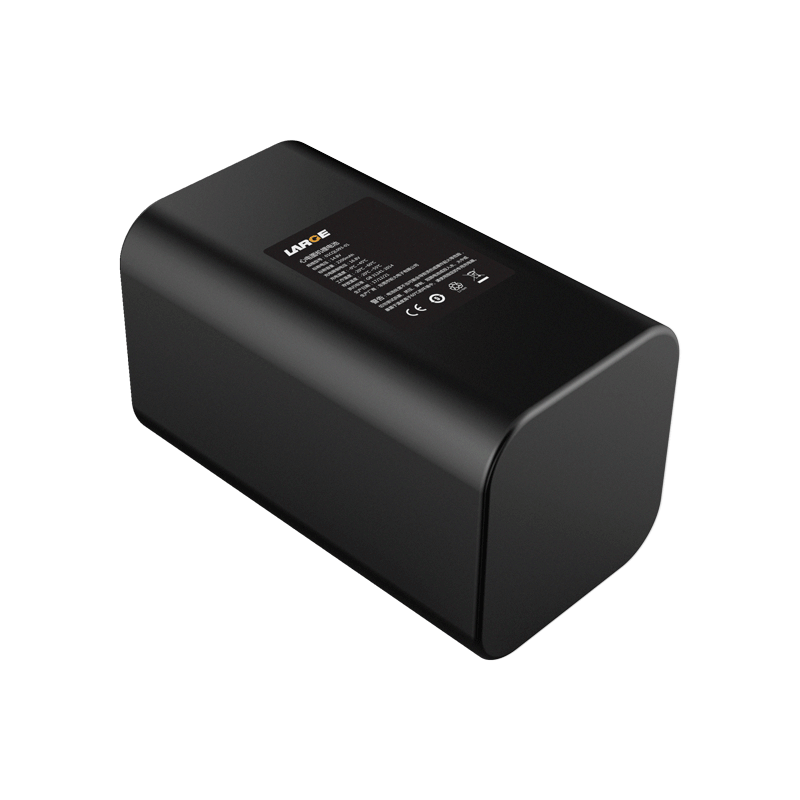

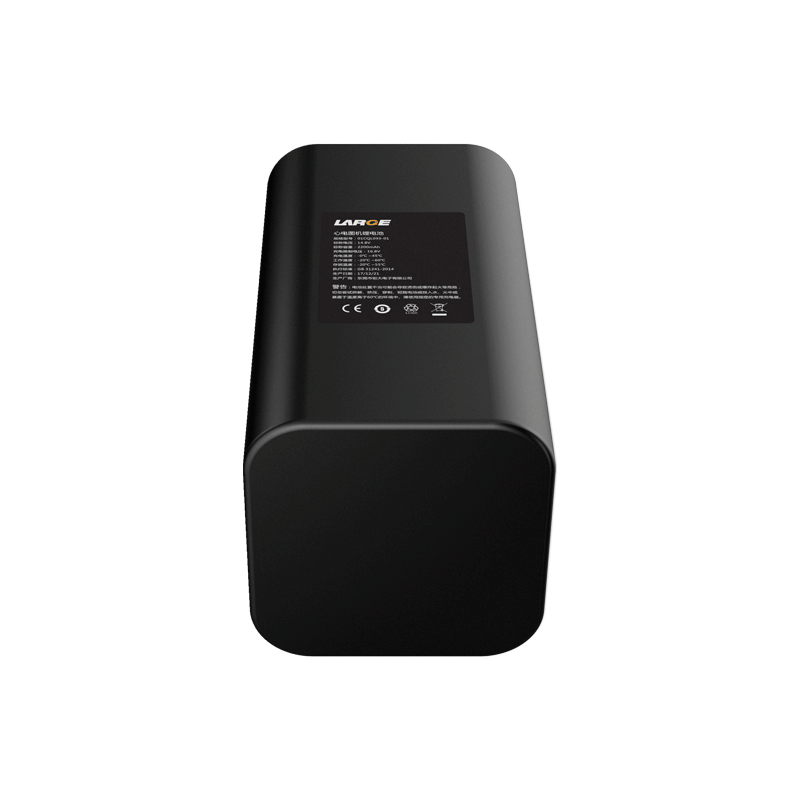

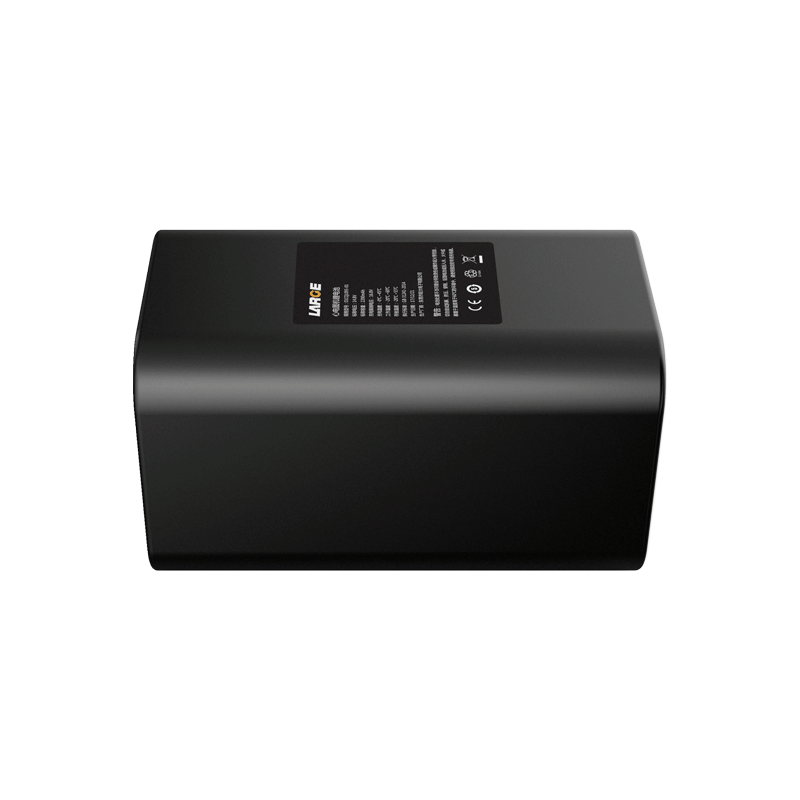

Custom Lithium ion Battery Pack

14.8V 2200mAh 18650 Ternary Battery Bak Battery for Electrocardiograph

Product Detail

Product Number: 02AQ100-01

Combination mode: 18650-4S1P

Nominal voltage: 14.8V

Nominal capacity: 2200mAh

Standard continuous discharge current: 0.2C

Maximum continuous discharge current: 1C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Product dimension: MAX 37.8*39.1*67.7mm

Finished product internal resistance: 380 mΩ or less

Lead model: JST-SMP-2P reverse UL1007/20#, length 85mm

*
*
*
