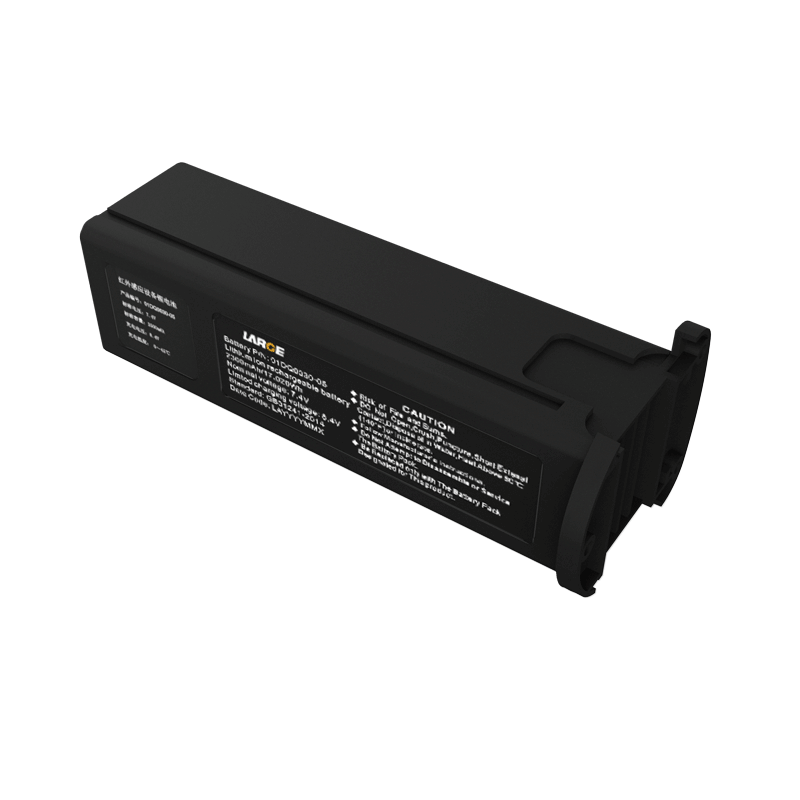

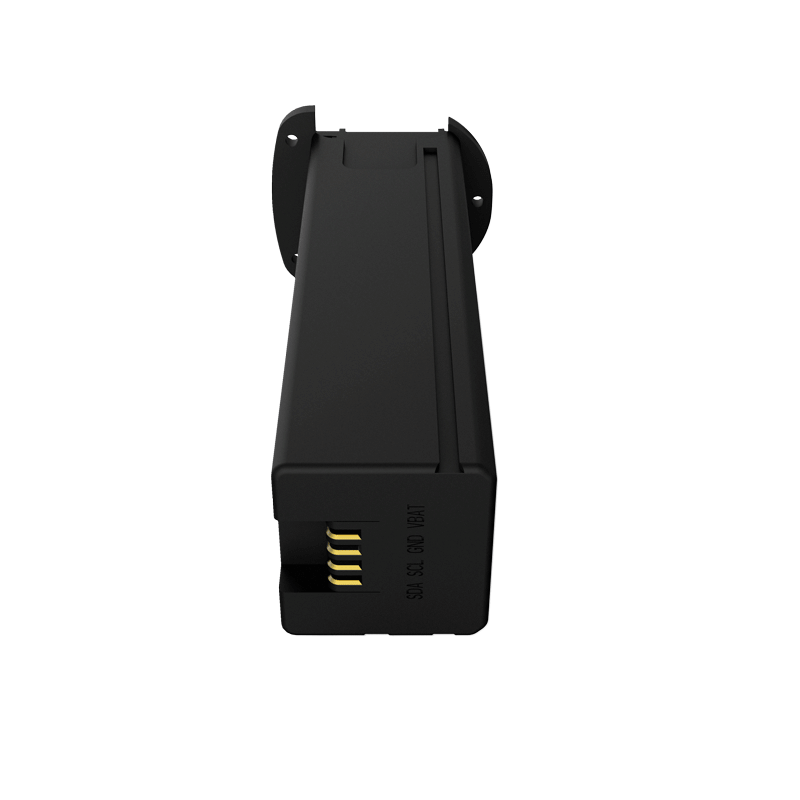

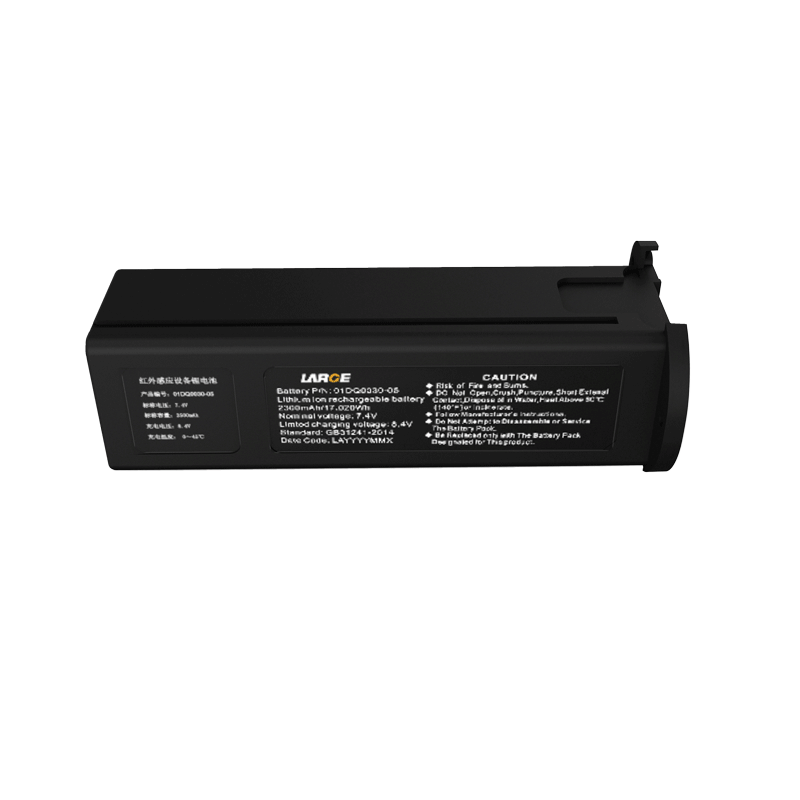

7.4V 2500mAh Polymer Lithium Ion Battery for Infrared Induction Equipment with I2C Communication

Product Detail

Product number: 01DQ0030-05

Cell model:552380/3.7V/1250mAh

Battery specification: 552380-2S2P/7.4V/2500mAh

Nominal voltage:7.4V

Nominal capacity:2500mAh

Charging voltage: 8.4V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 2.5A

End-off voltage: 6V

Internal resistance: ≤240mΩ

Battery weight: 0.2Kg

Product dimension: 100*40*26.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: ABS+PC

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, temperature detection, etc.

Application field: monitoring equipment


Product features

1. Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

2. The battery pack has good security, nice performance and long cycle life.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
