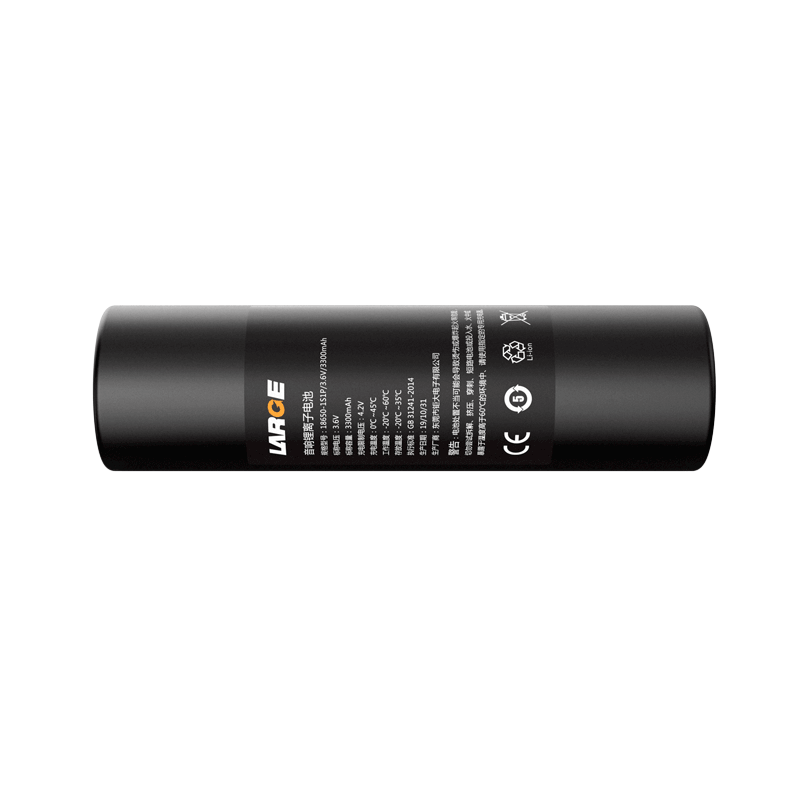

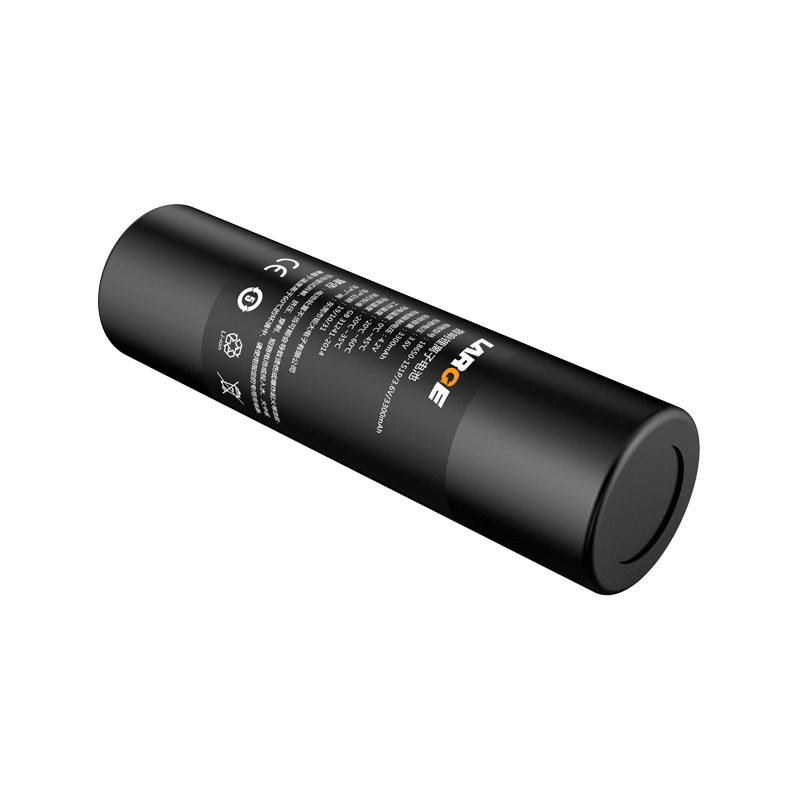

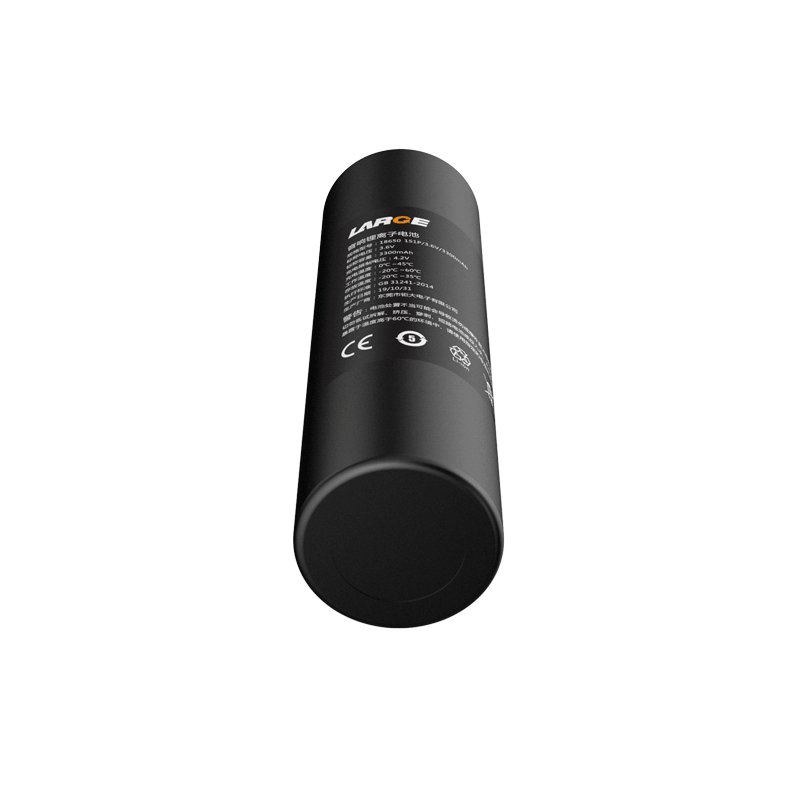

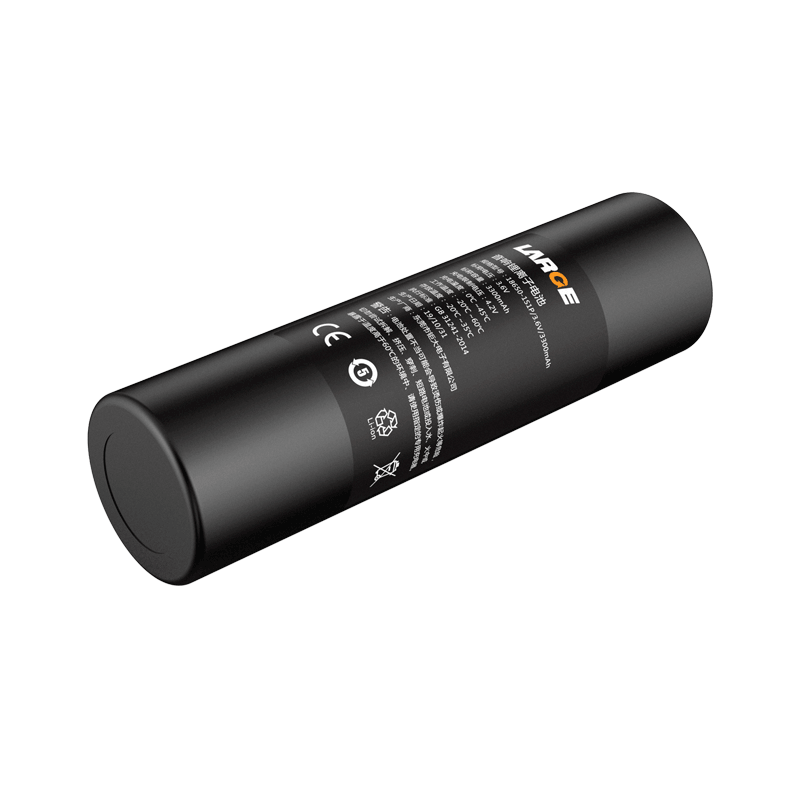

18650 3.6V 3300mAh Lithium Ion Battery Sanyo Battery for Sound Equipment

Product Detail

Product number: 01WQ0037-09

Cell model:18650/3.6V/3300mAh

Battery specification: 18650-1S1P/3.6V/3300mAh

Nominal voltage:3.6V

Nominal capacity:3300mAh

Charging voltage: 4.2V

Charging current: ≤1.6A

Discharging current: 0.6A

Instant discharging current: 3A

End-off voltage: 2.5V

Internal resistance: ≤200mΩ

Battery weight: 0.05Kg

Product dimension: 68.3*19*19mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20℃~35℃

Battery case: ordinary pouch cell

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: industrial instrumentation, sound equipment

*
*
*
