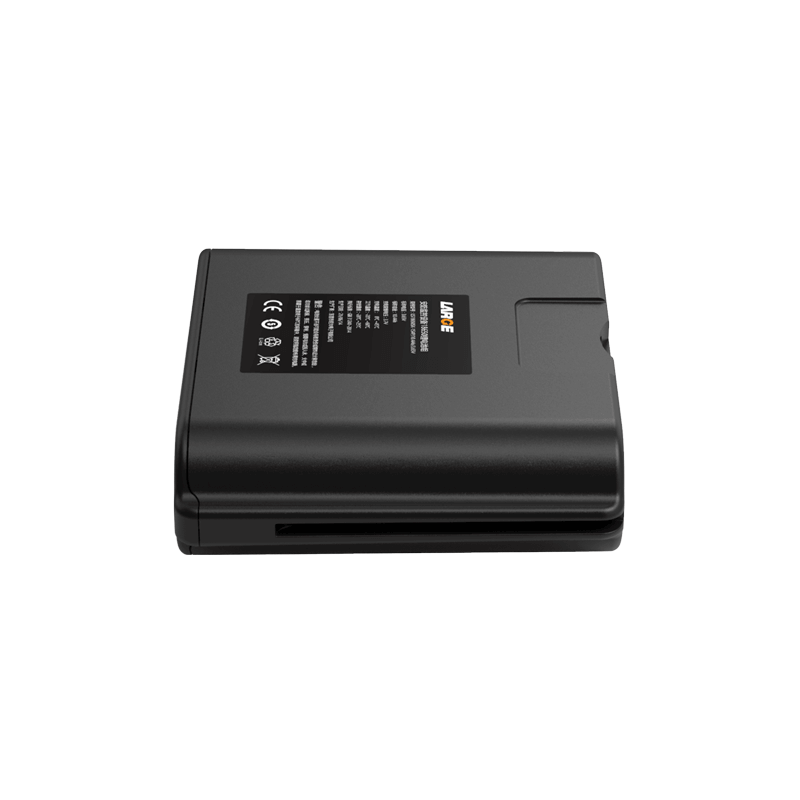

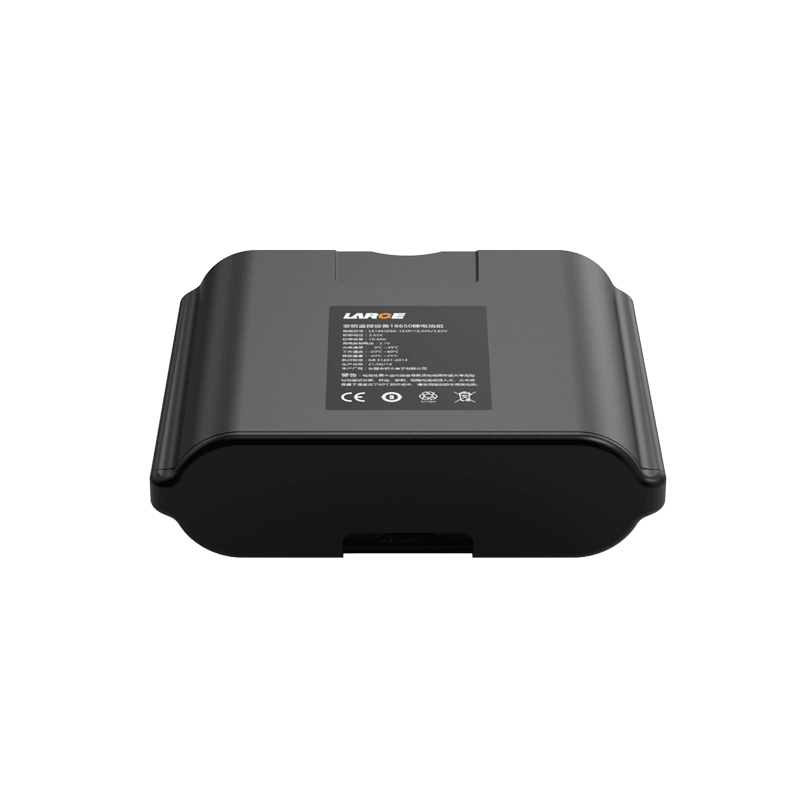

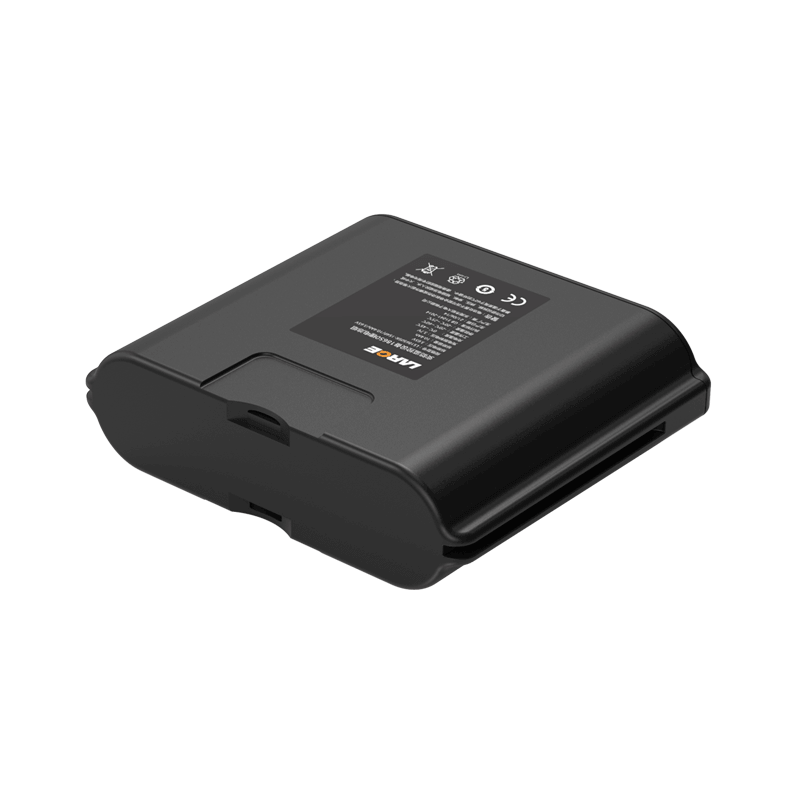

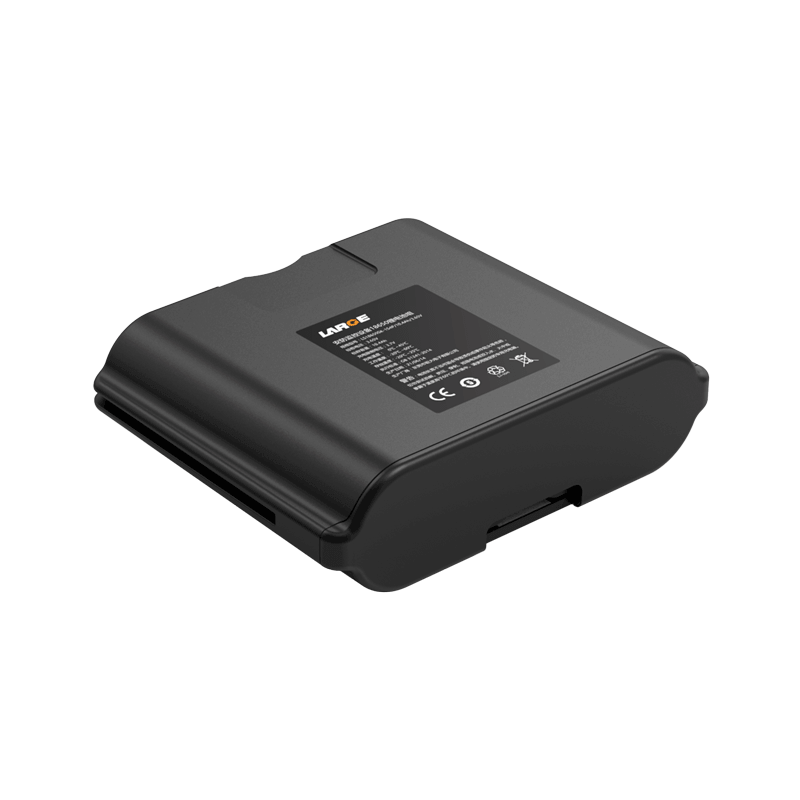

18650 3.65V 10.4Ah LS Ternary Battery for Security Monitoring Equipment With ABS+PC Communication

18650 3.65V 10.4Ah LS Ternary Battery for Security Monitoring Equipment With  ABS+PC Communication
18650 3.65V 10.4Ah LS Ternary Battery for Security Monitoring Equipment With  ABS+PC Communication
18650 3.65V 10.4Ah LS Ternary Battery for Security Monitoring Equipment With  ABS+PC Communication
18650 3.65V 10.4Ah LS Ternary Battery for Security Monitoring Equipment With  ABS+PC Communication

Product Detail

Project number: 01DQ0040-18

Cell model: LR18650SK/2600mAh/3.65V-LSV

Battery specification: LS18650SK-1S4P/ 10.4AH /3.65V

Nominal voltage: 3.7V

Nominal capacity: 10.4Ah

Charging voltage: 5V to 4.2V charging

Charging current: ≤ 2.5a

Discharge current: 3.0A

Instantaneous discharge current: 9A

Discharge cut-off voltage: 3.0V

Internal resistance: ≤250m ω

Battery weight: 250G

Product dimension: 24.2*87.0*71.0mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 25 ° C

Battery case: ABS+PC

Intelligent lithium battery protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection, USB charging and so on

Application: Security monitoring

*
*
*
