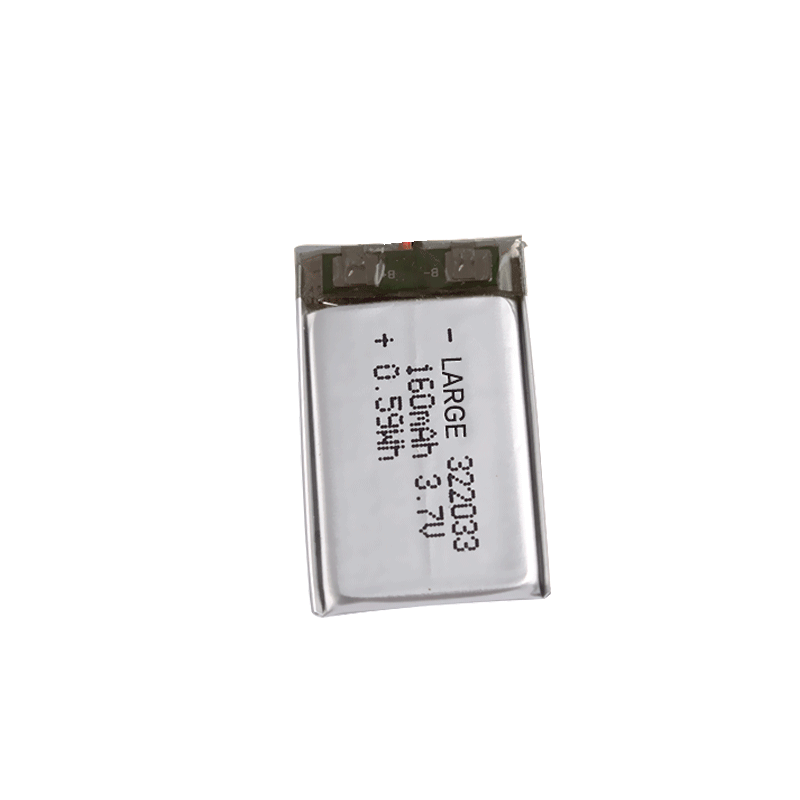

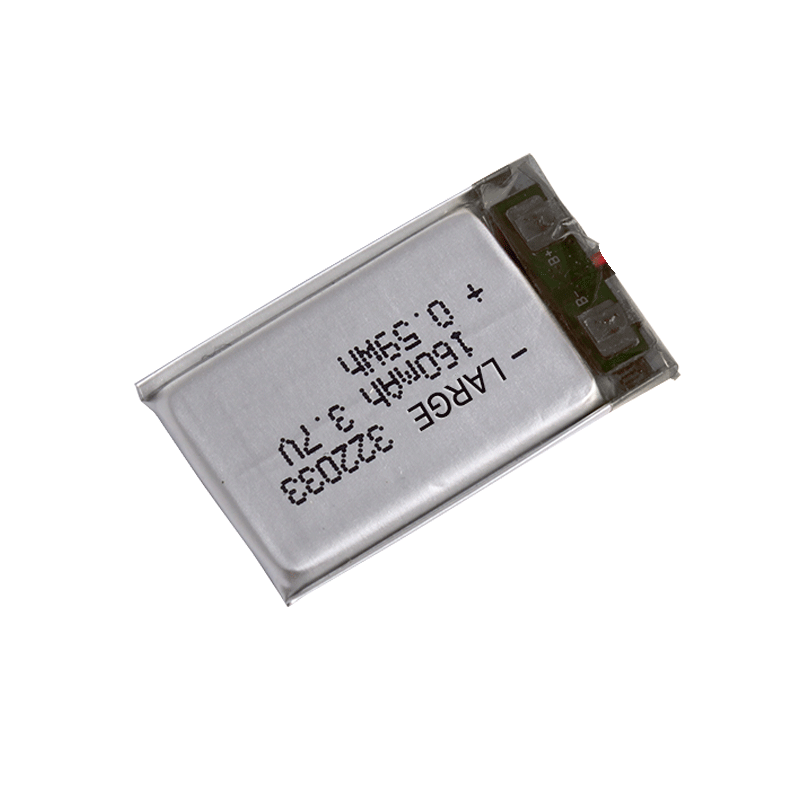

3.7V 160 322033 Lithium Polymer Battery Lithium Cobalt Acid Battery

Product number: 00BQ0001-14

Battery model: P323033-R01/160mah /3.7V

Nominal voltage: 3.7V

Nominal capacity: 165mAh

Factory voltage: 3.80V~3.95V

Product dimension: Max: 35.0mm*20.5mm*3.2mm

Internal resistance of products: ≦ 320 m Ω

Battery weight: about 6.0g

Output mode: JST-ZHR-2P forward /UL3302/26#

Duration: 12 months

Operating temperature: 0~+45℃ charging, -10℃~+60℃ discharge

Battery charging: Limiting voltage of charge: 4.2V Charging current: 33mA(standard), 165mA(maximum)

Battery discharge: Discharge cut-off voltage: 3.0V Discharge current: 33mA(standard), 165mA(maximum)
