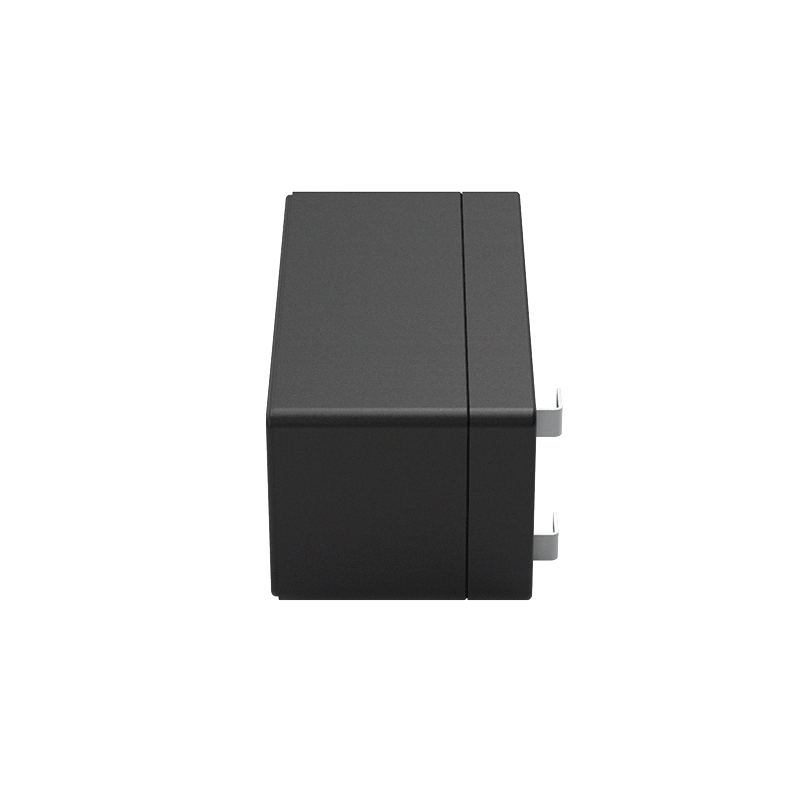

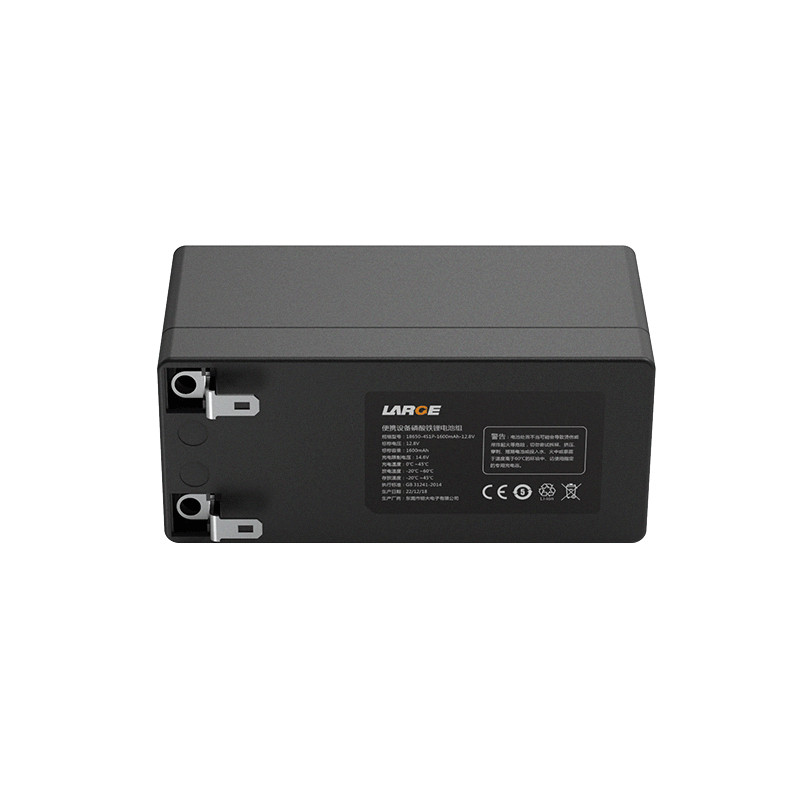

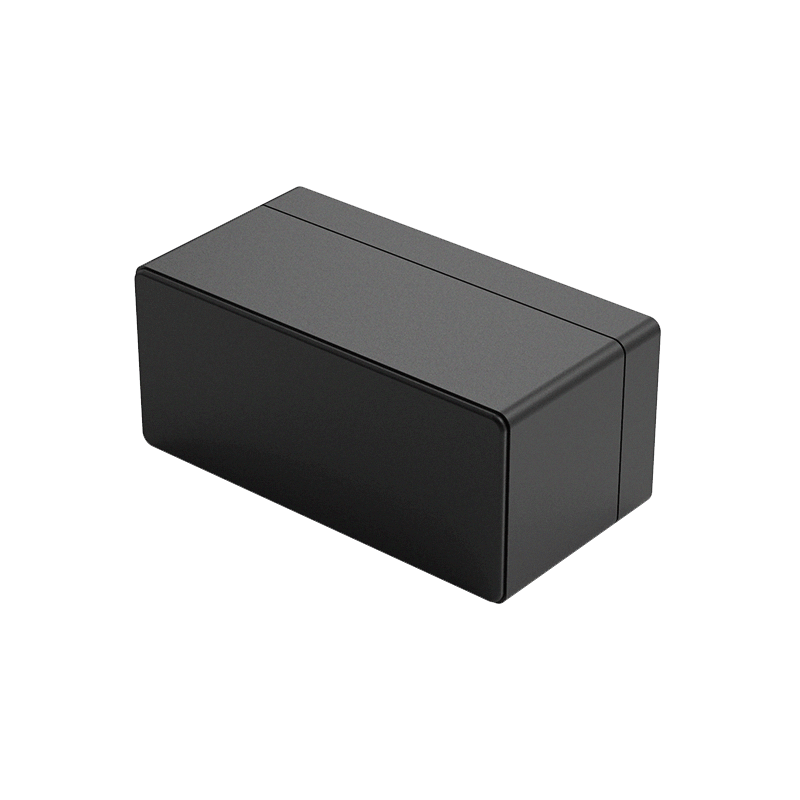

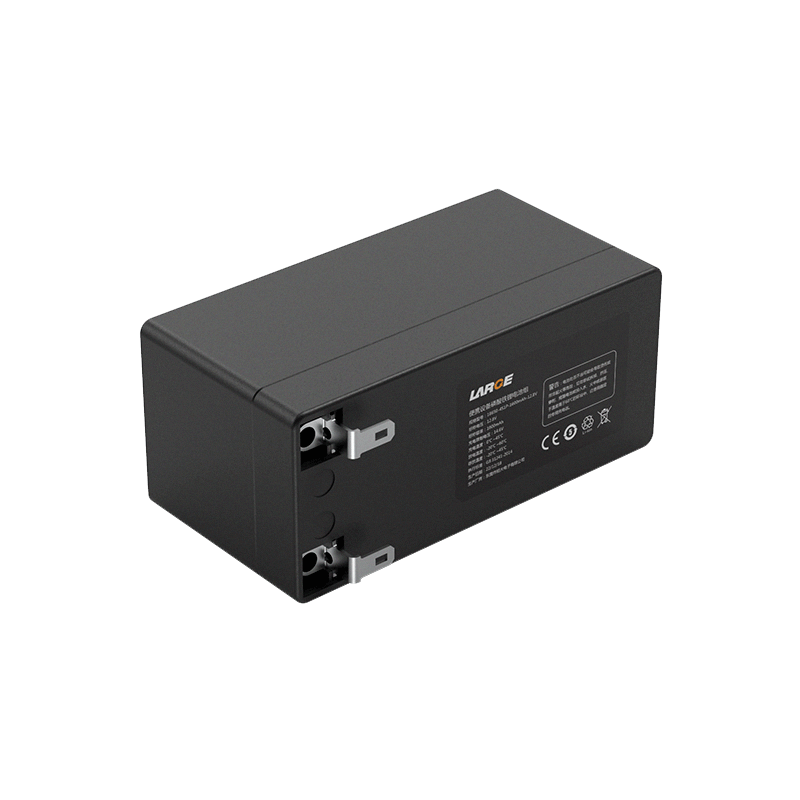

18650 12.8V 1600mAh Portable Device FePO4 Battery Pack

18650 12.8V 1600mAh Portable Device FePO4 Battery Pack
18650 12.8V 1600mAh Portable Device FePO4 Battery Pack
18650 12.8V 1600mAh Portable Device FePO4 Battery Pack
18650 12.8V 1600mAh Portable Device FePO4 Battery Pack

Product Detail

Product number: 33DZ023-05

Battery model: 18650/3.2V/1800mAh

Battery specification: 18650-4S1P-1600mAh-12.8V

Nominal voltage: 12.8V

Nominal capacity: 1600mAh

Charging voltage: 14.6V

Charging current: ≤1650mA

Discharge current: ≤1600mA

Instantaneous discharge current: 4-8A

Discharge cut-off voltage: 8.8V

Finished internal resistance: ≤200mΩ

Battery weight: 200g

Product size: 43*52*97mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 45℃

Battery case: plastic case

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature and so on

Application: Backup power supply


Product Features

1.Conforms to CQC (GB31241-2014) standard.

2.Cell: The ultra-safe lithium iron phosphate cell can be discharged at -20 ° C.

3.The battery pack has nice safety, good low temperature performance and long cycle life;

4.It has overtemperature protection;

5.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.

*
*
*
*
*
