Custom Lithium Ion Battery Pack

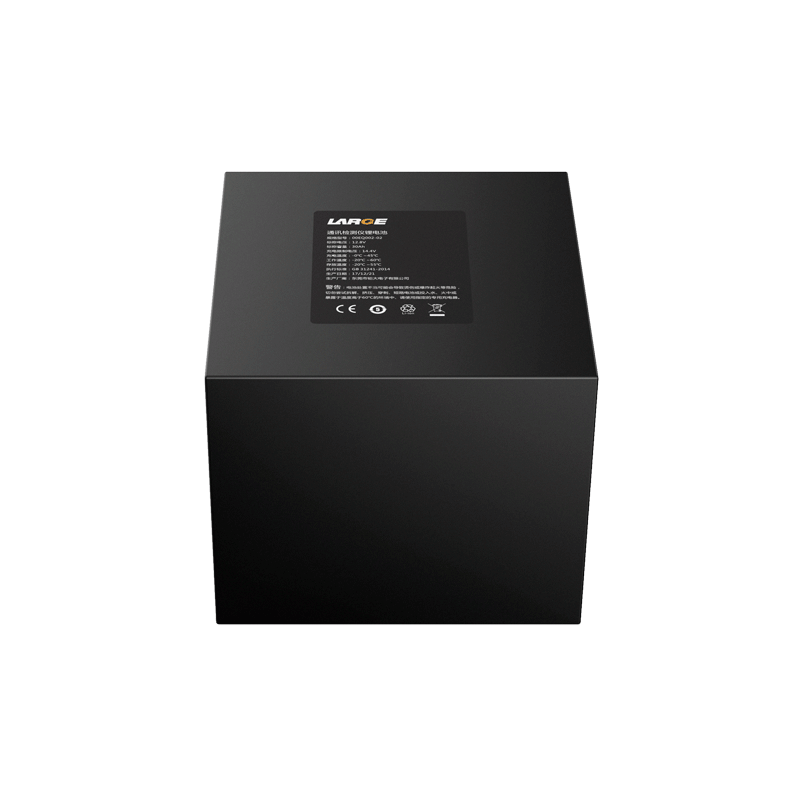

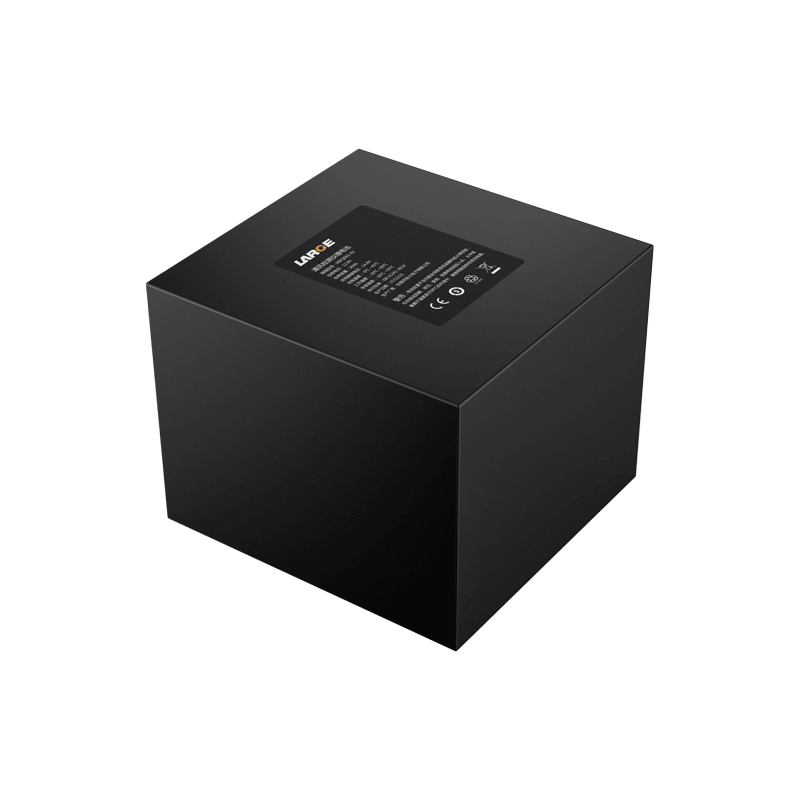

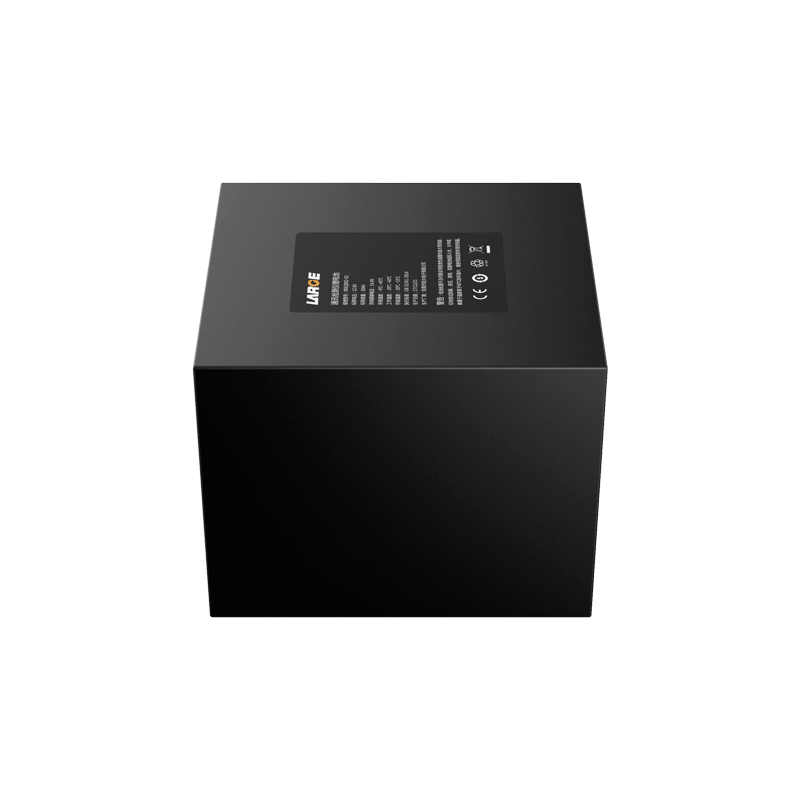

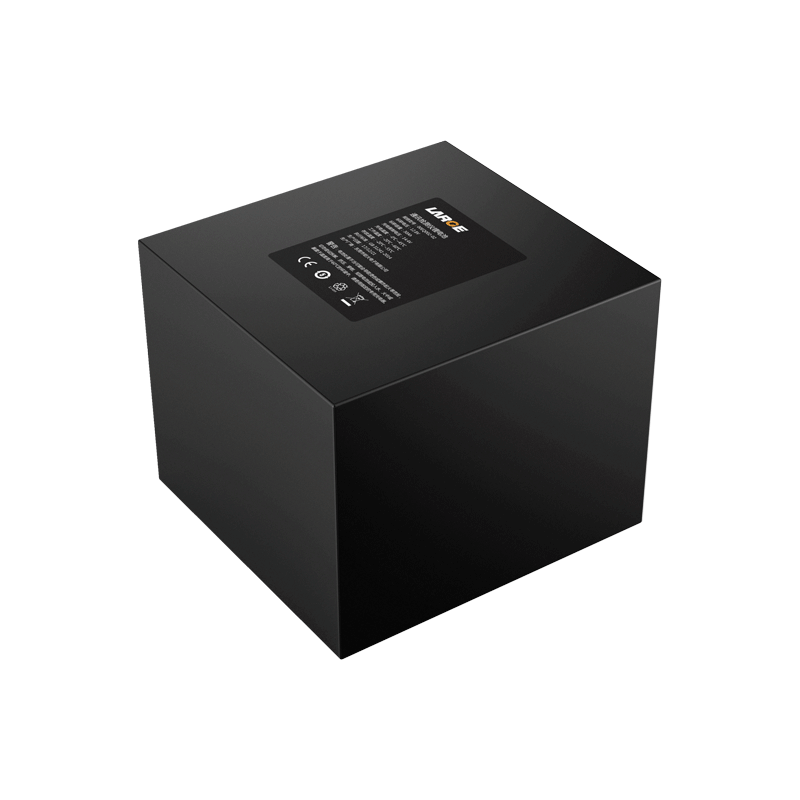

26650 12.8V 30Ah LiFePO4 Battery for Communication Equipment

  • Model number:00BQ002-02

  • Nominal voltage:12.8V

  • Nominal capacity:30000mAh

  • Battery cell:26650/3.2V/3.0Ah

  • Dimension:148*140*116mm(Max)

  • Application:communication equipment, testing equipment

Product Detail

Product number: 00BQ002-02

Cell model:26650/3.2V/3.0Ah

Battery specification: 26650-4S10P/12.8V/30Ah

Nominal voltage:12.8V

Nominal capacity:30Ah

Charging voltage: 14.4V

Charging current: ≤5A

Discharging current: 5A

Instant discharging current: 10A

End-off voltage: 10.0V

Internal resistance: ≤150mΩ

Battery weight: 4.0Kg

Product dimension: 148*140*116mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: blue PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: communication equipment, testing equipment

*
*
*
