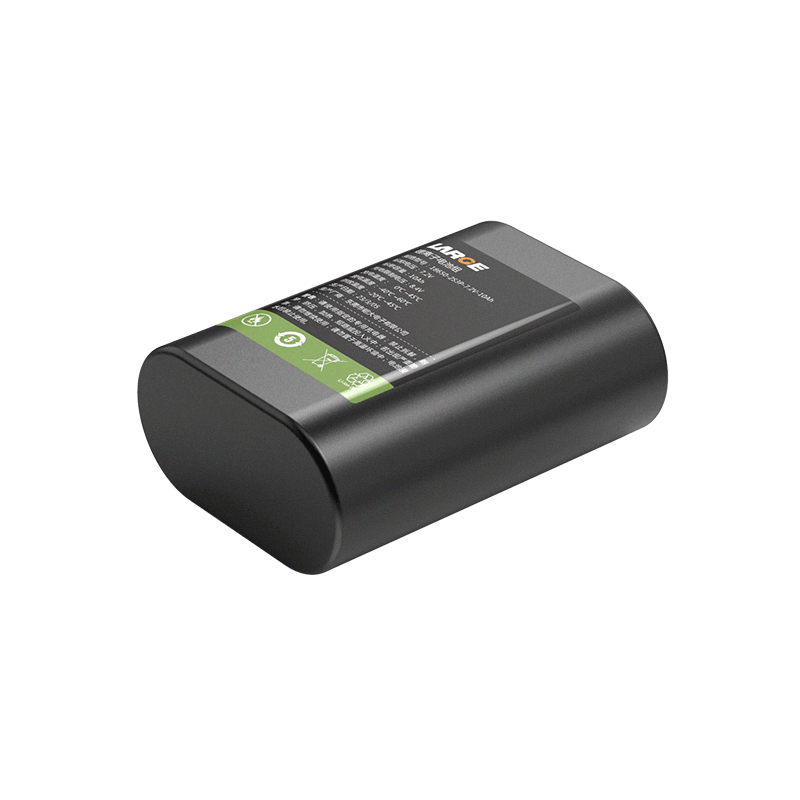

18500 3.6V 4000mAh Outdoor Detector Low Temperature Lithium-ion Battery

Product number: 01WQ0117-01

Battery model: 18500/2000mAh/3.6V

Battery specification: 18500-1S2P/4000mAh/3.6V

Nominal voltage: 3.6V

Nominal capacity: 4000mAh

Charging voltage: 4.2V

Charging current: ≤1.9A

Discharge current: 3.8A

Instant discharge current: 3.8A

Discharge cut-off voltage: 2.5V

Internal resistance of finished product: ≤100mΩ

Battery weight: 80g

Product size: 55×38×21.5mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20 ~ 55℃

Battery case: Industrial grade

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Outdoor monitoring
