23 Years' Battery Customization

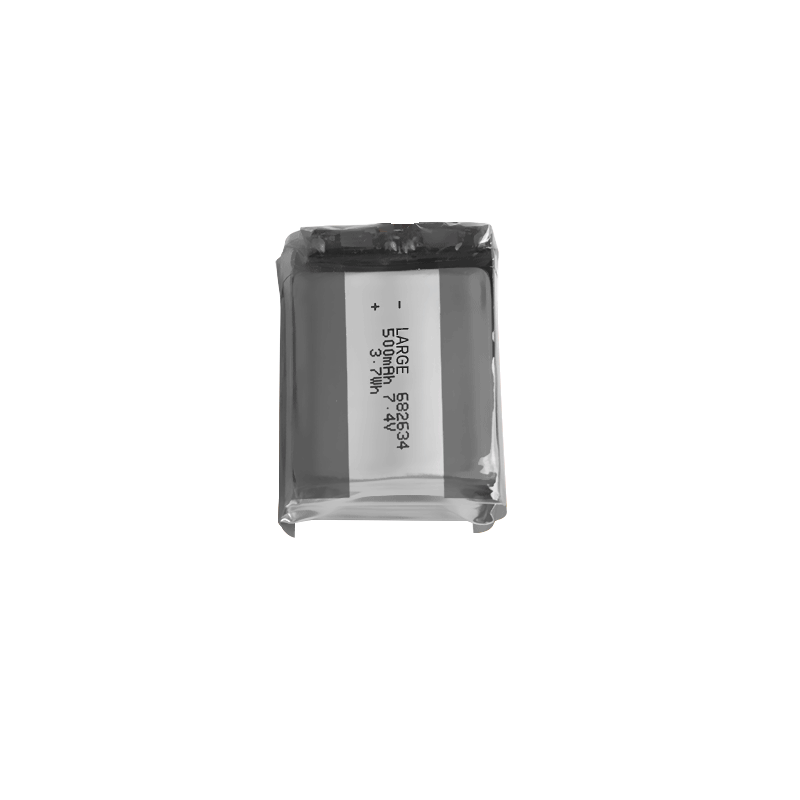

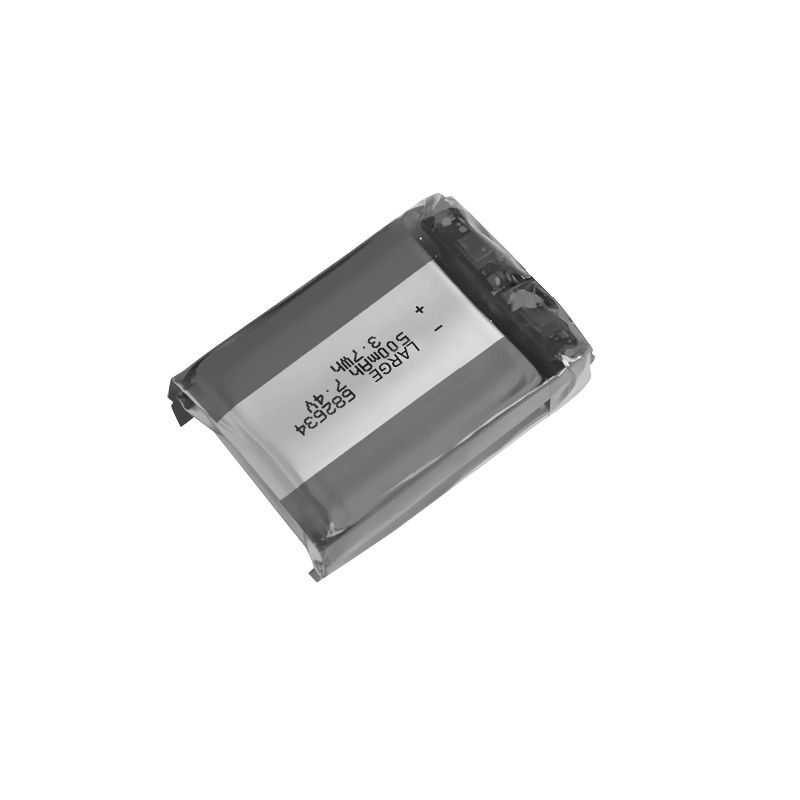

7.4v 500mAh 682634 Pouch Cell Lithium Polymer Battery Lithium Cobalt Acid Battery

7.4v 500mAh 682634 Pouch Cell Lithium Polymer Battery Lithium Cobalt Acid Battery
7.4v 500mAh 682634 Pouch Cell Lithium Polymer Battery Lithium Cobalt Acid Battery
7.4v 500mAh 682634 Pouch Cell Lithium Polymer Battery Lithium Cobalt Acid Battery

Product Detail

Product number: 00BQ0001-12

Battery model: P682634-R01/500mah /3.7V

Nominal voltage: 3.7V

Nominal capacity: 500mAh

Factory voltage: 3.80V~3.95V

Product dimension: Max: 37.0mm*27.0mm*7.0mm

Internal resistance of products: ≦ 200 m Ω

Battery weight: about 12.0g

Output mode: JST-ZHR-2P forward /UL3302/26#

Duration: 12 months

Operating temperature: 0~+45℃ charging, -10℃~+60℃ discharge

Battery charging: Charging limit voltage: 4.2V Charging current: 100mA(standard) 500mA(maximum)

Battery discharge: Discharge cut-off voltage: 3.0V Discharge current: 100mA(standard) 500mA(maximum)

*
*
*
*
*
