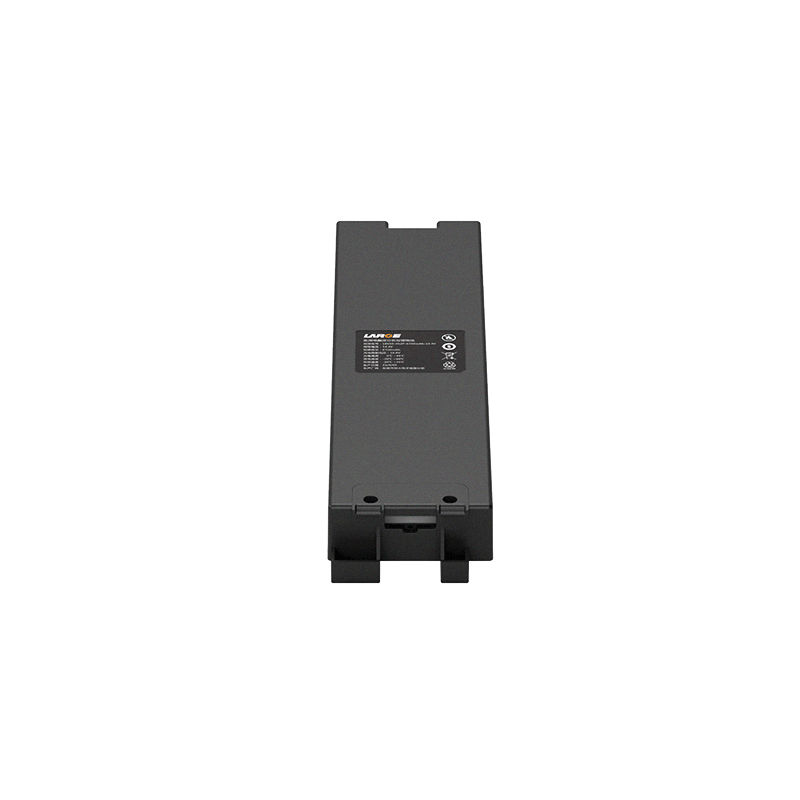

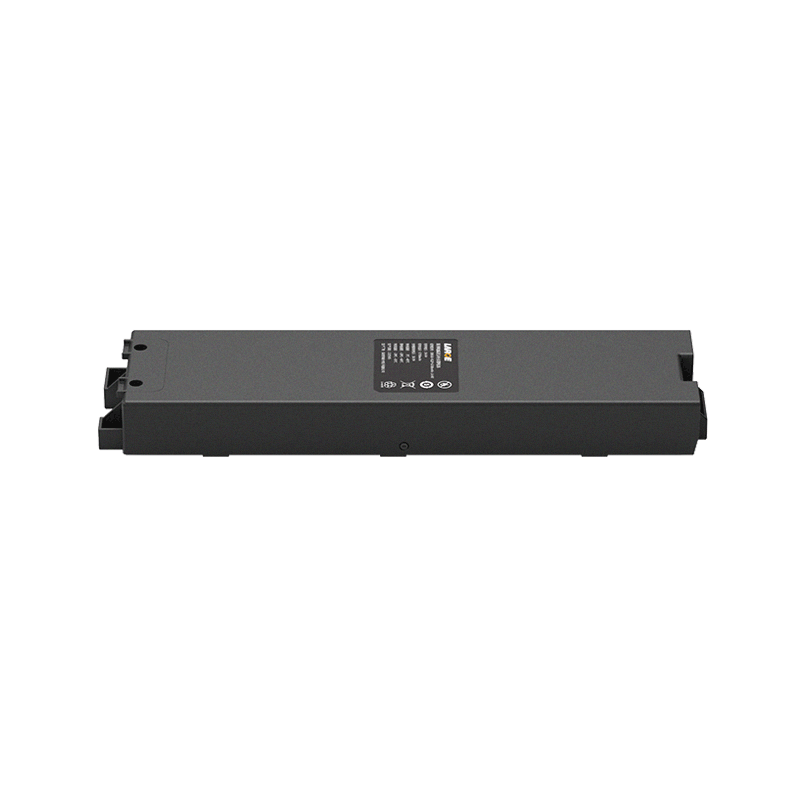

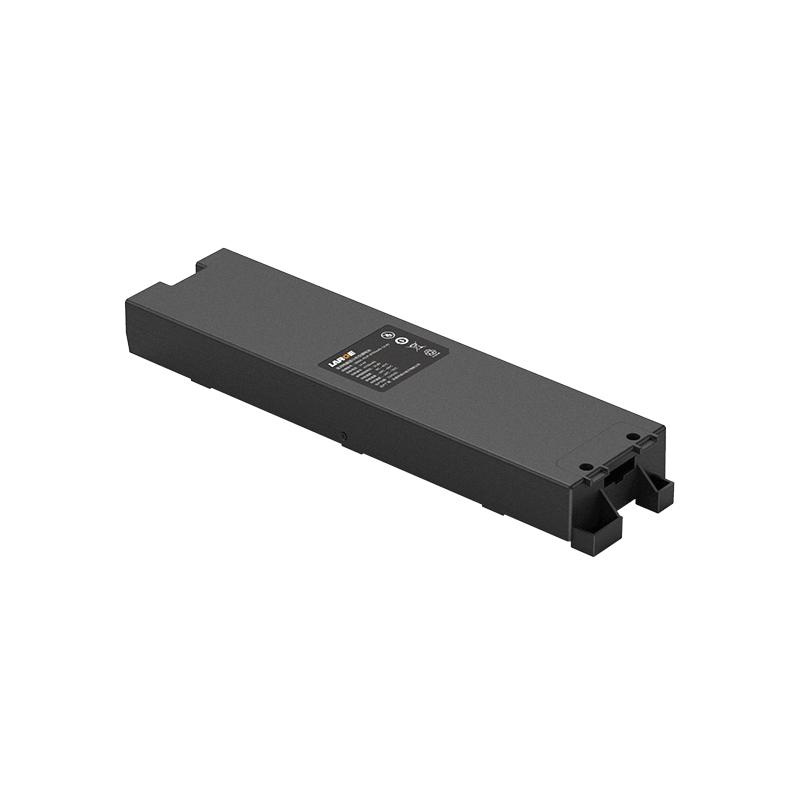

14.4V 7.5Ah 5G Device 18650 Lithium-ion Battery Pack

Product number: 01DQ0047-08

Battery model: INR18650-25R8/2500mAh/3.6V

Battery specification: 18650-4S3P/7.5Ah/14.4V (smart + shell)

Nominal voltage: 14.4V

Nominal capacity: 12.4Ah

Charging voltage: 16.8V

Charging current: ≤3.0A

Discharge current: 60A

Instantaneous discharge current: 90.0A

Discharge cut-off voltage: 10.0V

Finished internal resistance: ≤25mΩ

Battery weight: 1.5Kg

Product size: 27.5*71.5*283.6mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 23℃

Battery case: ABS+PC

Communication protocol: SMBUS

Intelligent lithium-ion battery protection: power management, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application fields: 5G equipment, Internet of Things
