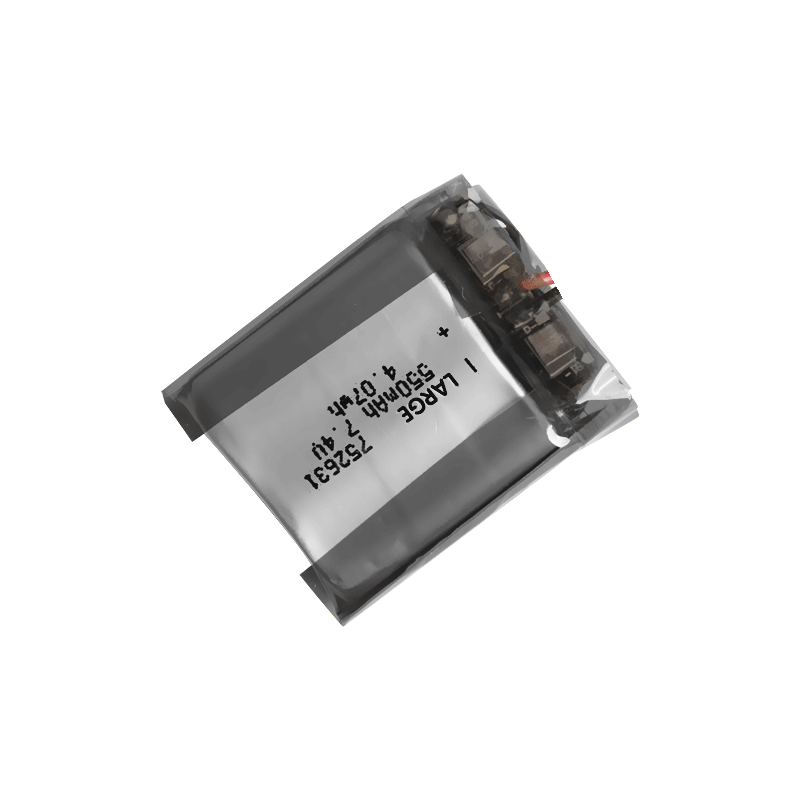

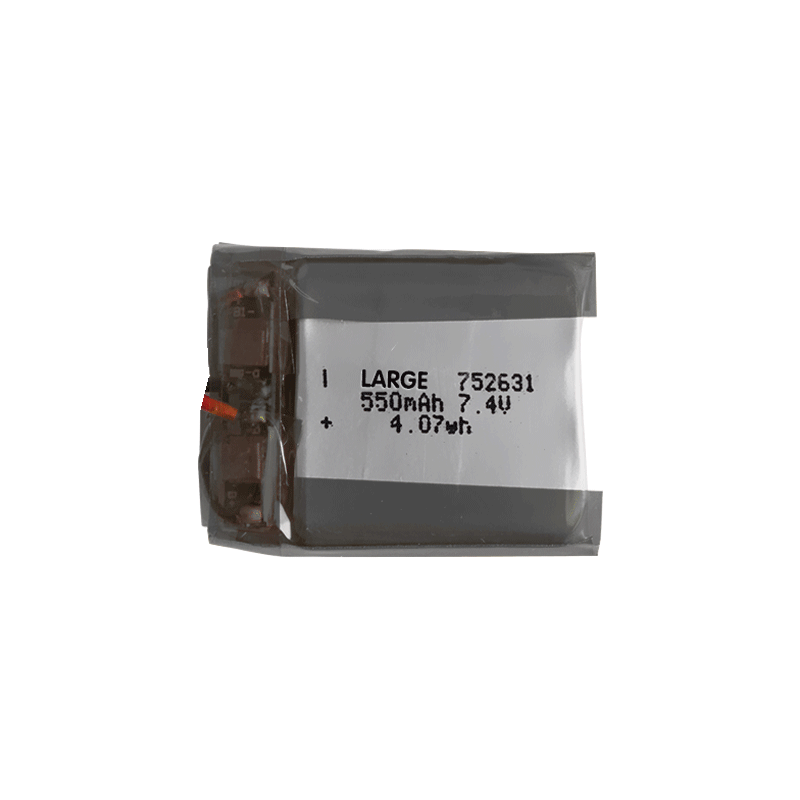

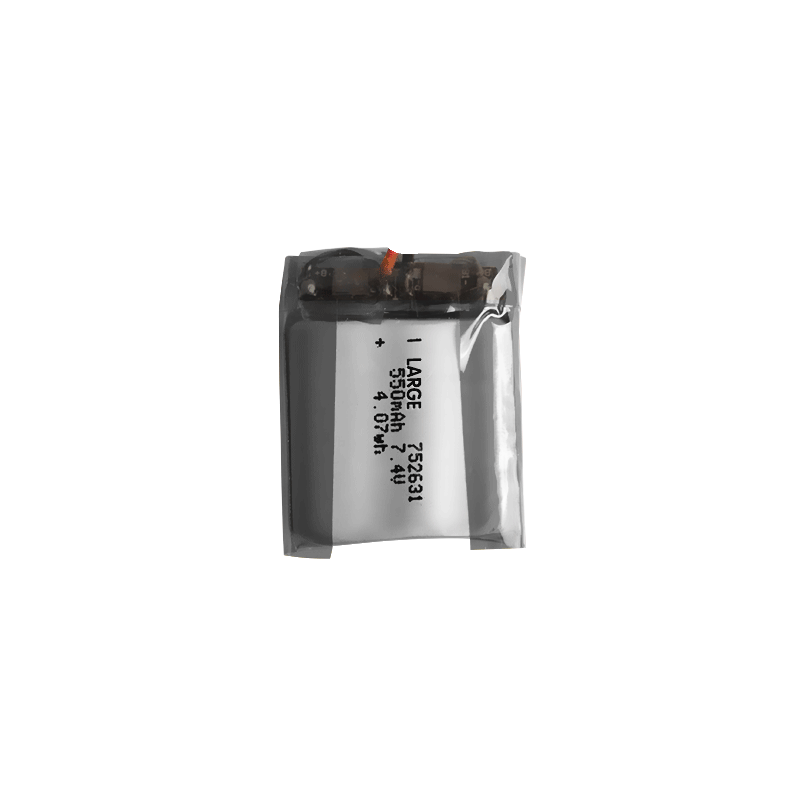

7.4V 550mAh 752631 Lithium Polymer Battery Lithium Cobalt Acid Battery

7.4V 550mAh 752631 Lithium Polymer Battery Lithium Cobalt Acid Battery
7.4V 550mAh 752631 Lithium Polymer Battery Lithium Cobalt Acid Battery
7.4V 550mAh 752631 Lithium Polymer Battery Lithium Cobalt Acid Battery

Product Detail

Product number: 00BQ0001-08

Battery model: P752631-2S-R01/520mah /7.4V

Nominal voltage: 7.4V

Nominal capacity: 550mAh

Factory voltage: 7.6V~7.9V

Product dimension: Max: 34.0mm*26.6mm*15.5mm

Internal resistance of products: ≦ 240 m Ω

Battery weight: about 26.0g

Output mode: JST-ZHR-2p forward /UL1007/26#

Duration: 12 months

Operating temperature: 0~+45℃ charging, -10℃~+60℃ discharge

Battery charging: Charging limit voltage: 8.4V Charging current: 110mA(standard) 500mA(maximum)

Battery discharge: Discharge cut-off voltage: 6.0V Discharge current: 110mA(standard) 825mA(maximum)

*
*
*
*
*
