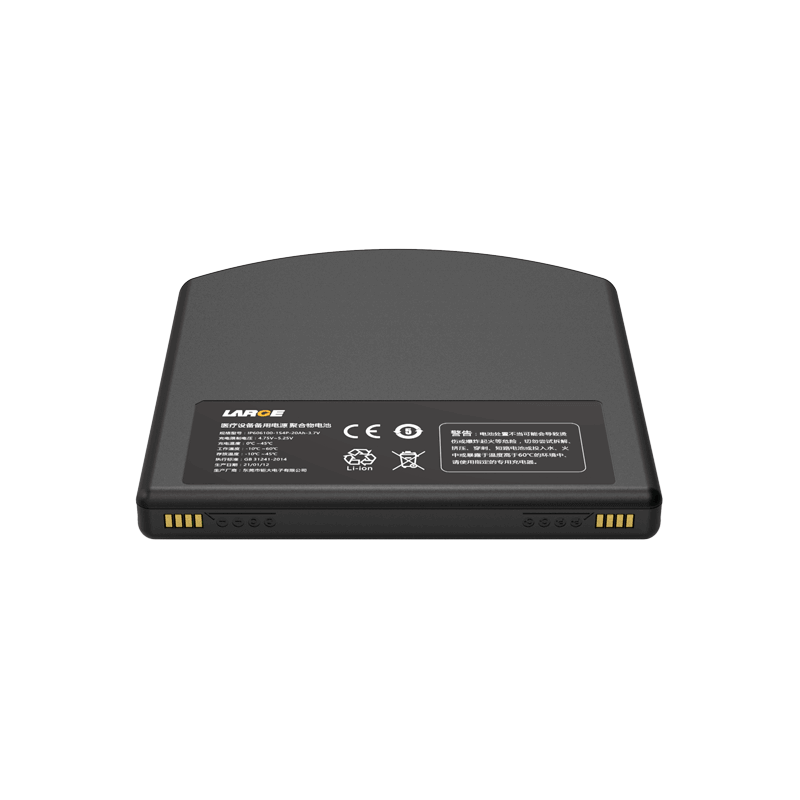

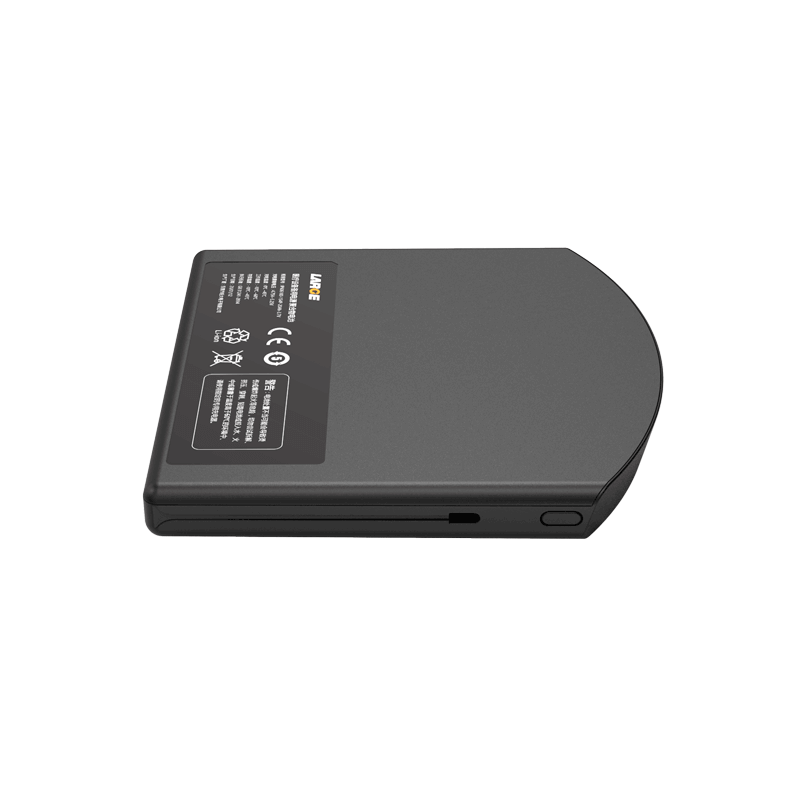

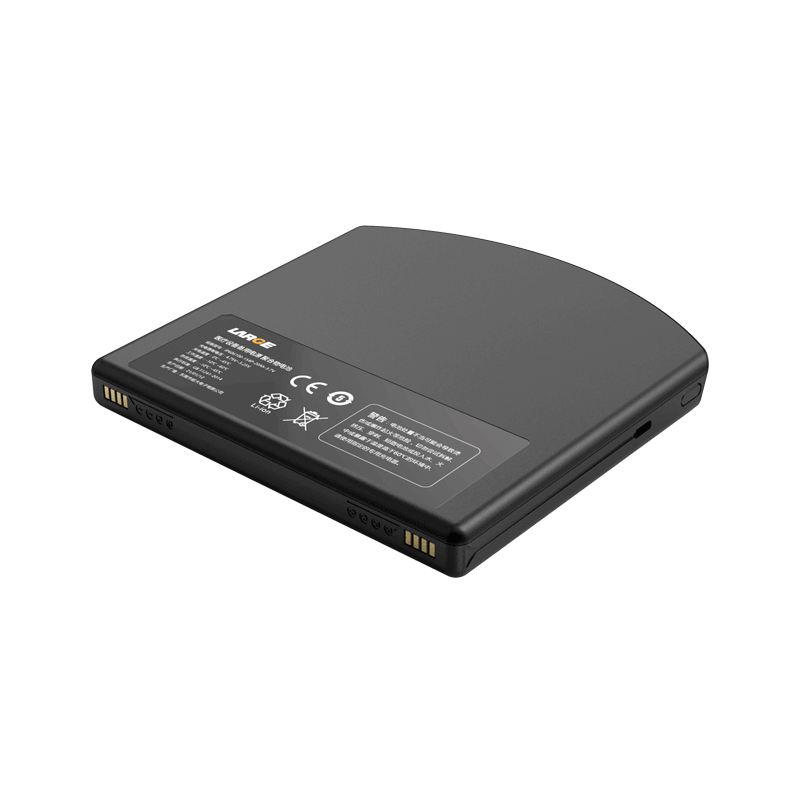

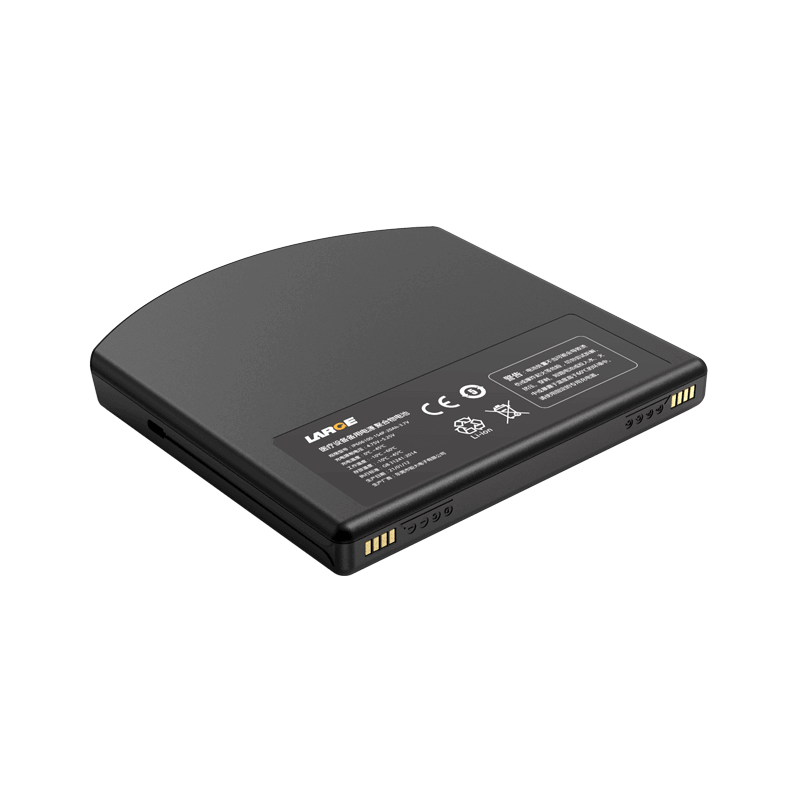

IP606100 3.7V 20Ah Ternary Battery Lithium Polymer Battery for Medical Equipment

Product number: 34AQ077-01

Battery specification: IP606100-1S4P-20AH-3.7V

Product dimension: 135.45*133.04*15.54mm (Max)

Rated output voltage: 4.75V~5.25V

Nominal capacity: 20Ah

Charging voltage: 4.75V~5.25V

Charging current: ≤2A

Discharge current: ≤2A

Discharge cut-off voltage: 2.8V

Battery weight: 500g

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 60 ℃

Storage temperature: -10~+45℃ (less than 1 month) -10~ 35 ℃(less than 3 months);

Battery encapsulation: Plastic case

Lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: medical equipment

Product features

1.Plastic shell with upper and lower cover ultrasonic technology is simple and reliable, and is easy to install.

2.I2C communication protocol

3.Output terminal: Conncet Pogo metal block and host machine;

4.Battery protection management: Use imported well-known brand protection chip with good stability, high precision monitoring, precise control to eliminate safety risks.

5.The battery pack has good safety, nice discharge performance and long cycle life;

6.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
