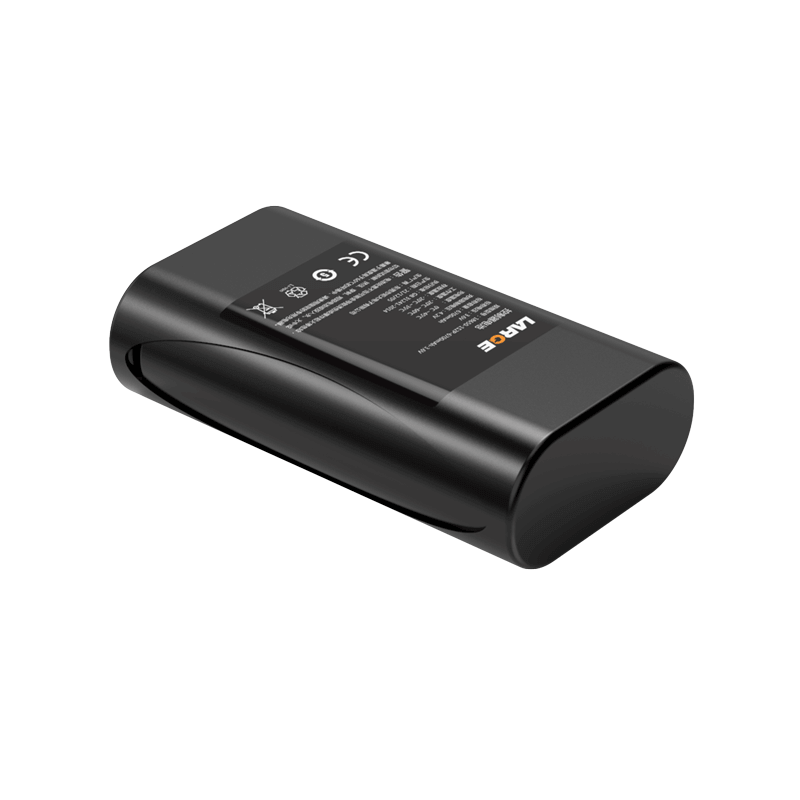

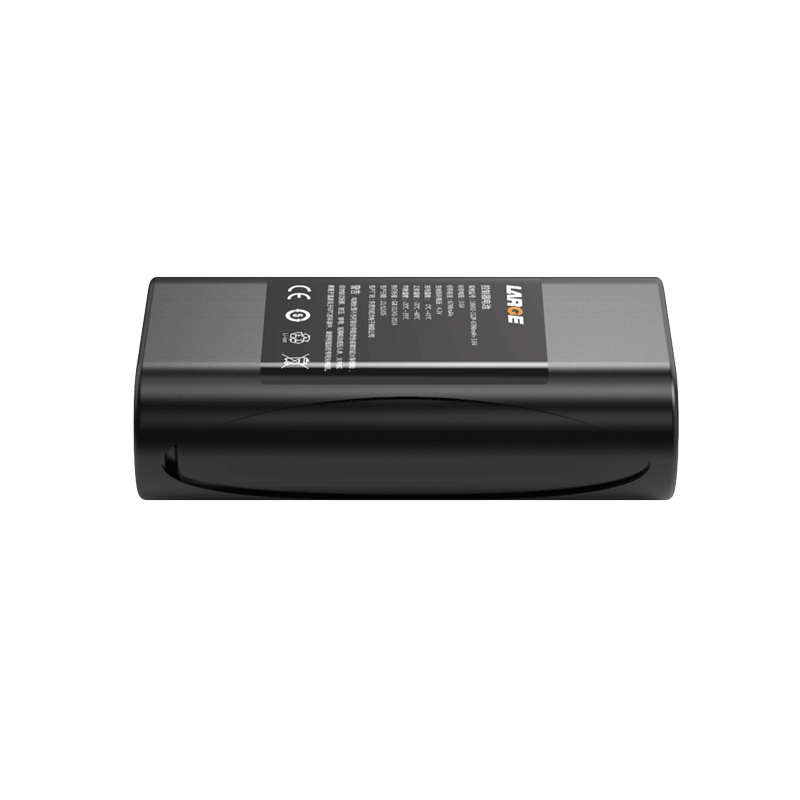

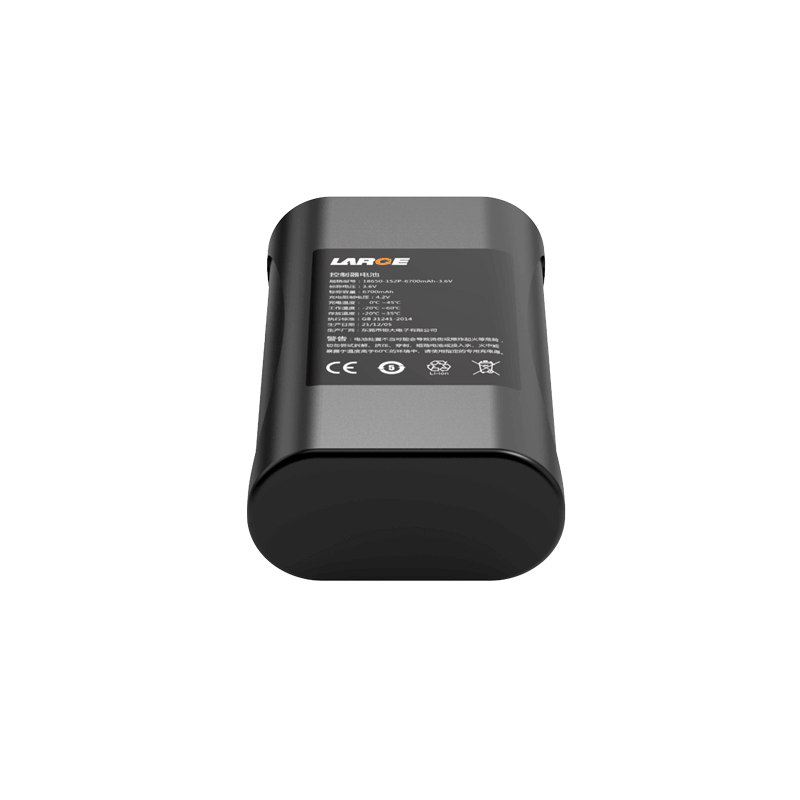

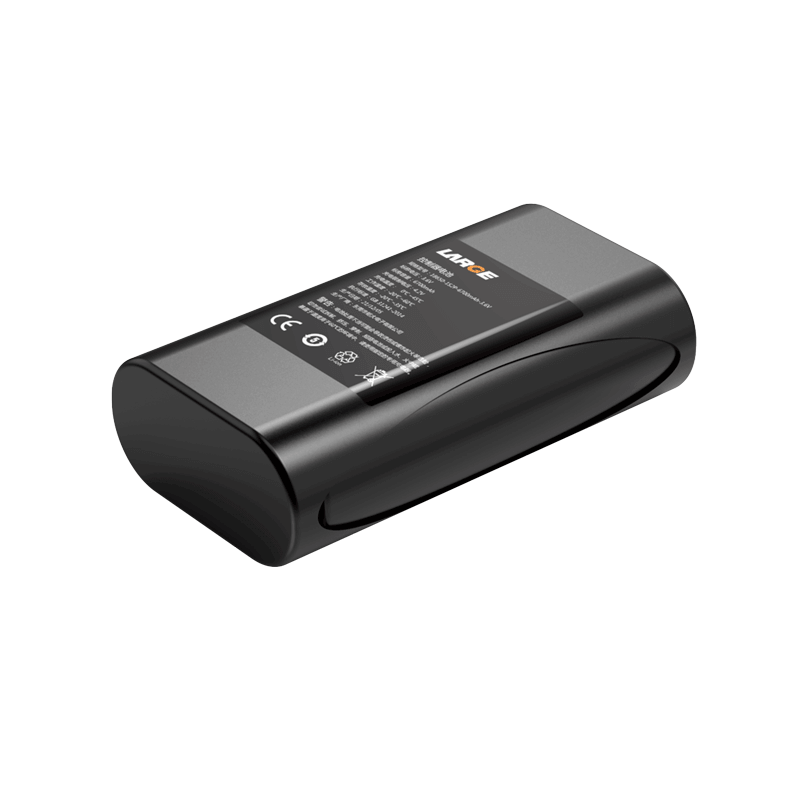

18650 6700mAh 3.6V Lithium-ion Battery for Controller

18650 6700mAh 3.6V Lithium-ion Battery for Controller
18650 6700mAh 3.6V Lithium-ion Battery for Controller
18650 6700mAh 3.6V Lithium-ion Battery for Controller
18650 6700mAh 3.6V Lithium-ion Battery for Controller

Product Detail

Product number: 01DQ0145-01

Cell model: 18650-3350MAH-3.6V

Specification: 18650-1S2P-6700MAH-3.6V

Product size: 67*37.5*19mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 6700mAh

Charging voltage: 4.2V

Charging current: ≤3A

Discharge current: ≤3A

Discharge cut-off voltage: 3.0V

Finished product internal resistance: ≤150mΩ

Battery weight: 110G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Portable controller, portable equipment


Product Features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to install.

2.Connector output terminal: The MOLEX plug is used to output the connector to increase conductive reliability.

3.Battery protection management: Adopt imported seiko protection chips with good stability, high precision monitoring and precise control, to eliminate potential safety hazards to the maximum.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.

*
*
*
