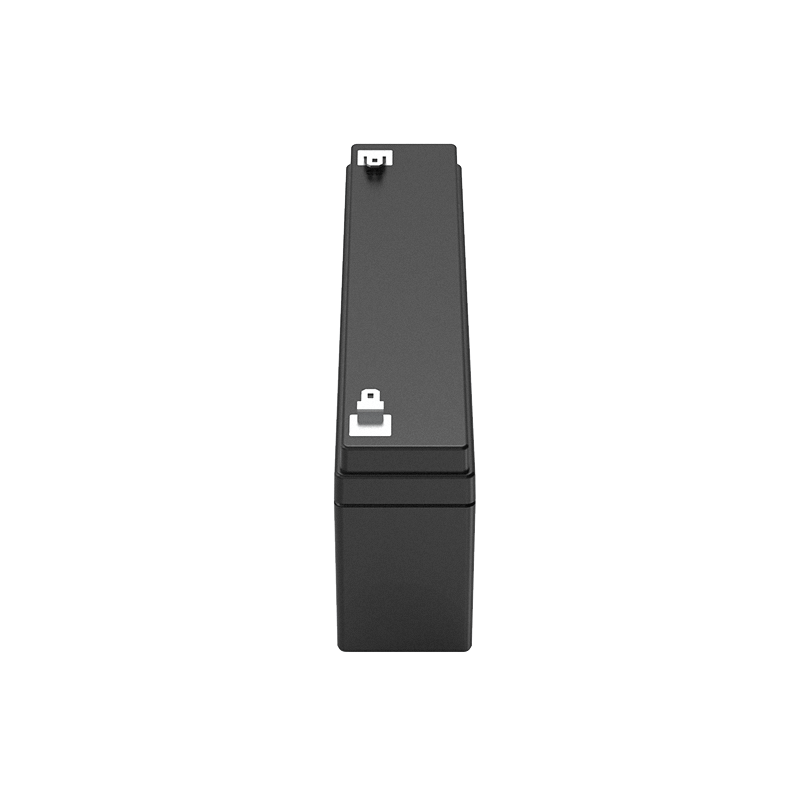

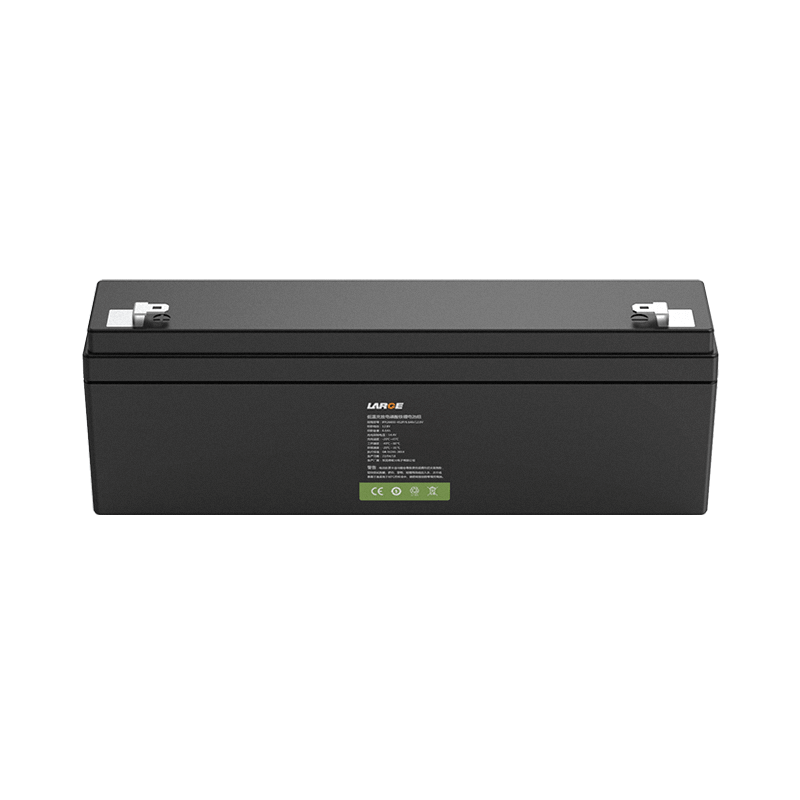

26650 12.8V 6.6Ah Low Temperature LiFePO4 Battery for Signal Detection

26650 12.8V 6.6Ah Low Temperature LiFePO4 Battery for Signal Detection
26650 12.8V 6.6Ah Low Temperature LiFePO4 Battery for Signal Detection
26650 12.8V 6.6Ah Low Temperature LiFePO4 Battery for Signal Detection
26650 12.8V 6.6Ah Low Temperature LiFePO4 Battery for Signal Detection

Product Detail

Project number: 01WQ00071-02T

Cell model: IFR26650/3300mah /3.2V

Battery specification: IFR26650-4S2P/6.6AH/12.8V

Nominal voltage: 12.8V

Nominal capacity: 6.6Ah

Charging voltage: 14.4V

Charging current: ≤4.0A

Discharge current: 6.0A

Instantaneous discharge current: 8A

Discharge cut-off voltage: 10.0V

Product internal resistance: ≤240mΩ

Battery weight: 1000g

Product size: 94.0*65*151mm

Charging temperature: -20 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20 to 35 ° C

Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Signal detection

*
*
*
