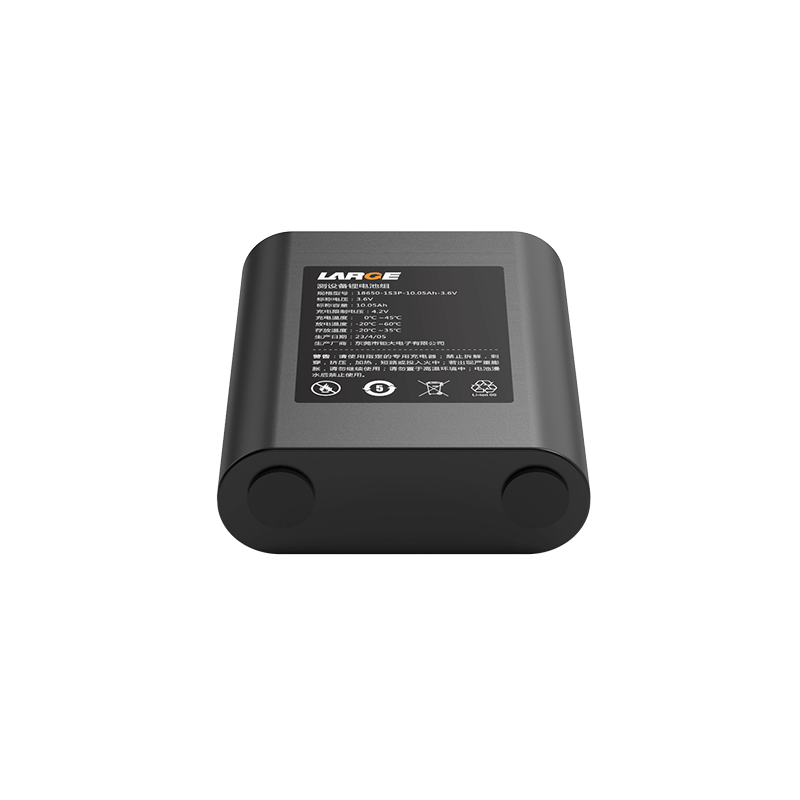

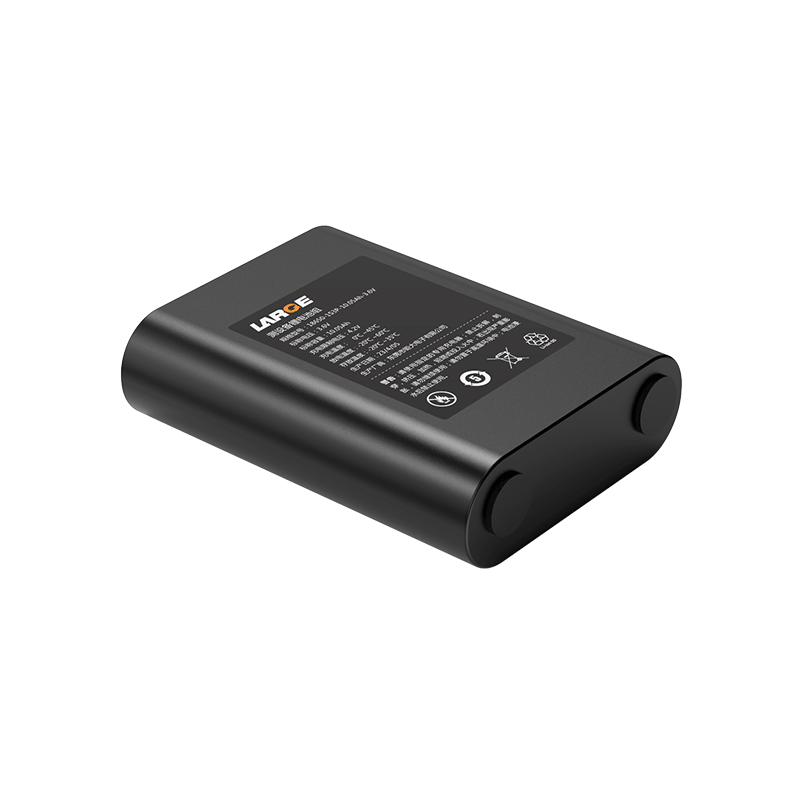

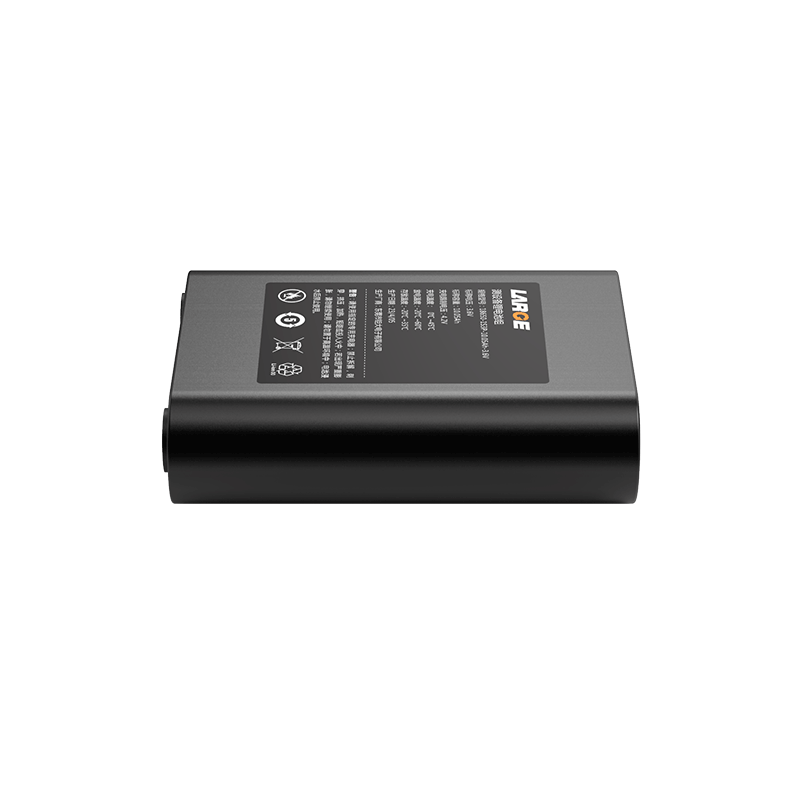

18650 3.6V 10.05Ah Detection Equipment Lithium-ion Battery Pack

Product number: 01DQ0057-03

Battery model: 18650-3350mAh-3.6V

Battery specification: 18650-1S3P-10.05Ah-3.6V

Product size: 71*57*19.5mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 10.05Ah

Internal resistance of finished product: ≤100mΩ

Charging voltage: 4.2V

Charging current: ≤4.0A

Discharge current: ≤3.0A

Discharge cut-off voltage: 2.8V

Battery weight: 500g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35℃

Battery package: Blue PVC heat shrink film

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Testing equipment, portable testing equipment

Product Features

1.Blue PVC heat shrink film package is simple and reliable,and easy to install;

2.Connector plug output terminal: using MOLEX plug output mode to increase the electrical reliability of the plug;

3.Battery protection management: Use special lithium battery protection chip with high stability, high precision monitoring, accurate control, temperature protection and other functions to maximize the elimination of safety hazards;

4.The battery pack has nice safety, good discharge performance and long cycle life;

5.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
