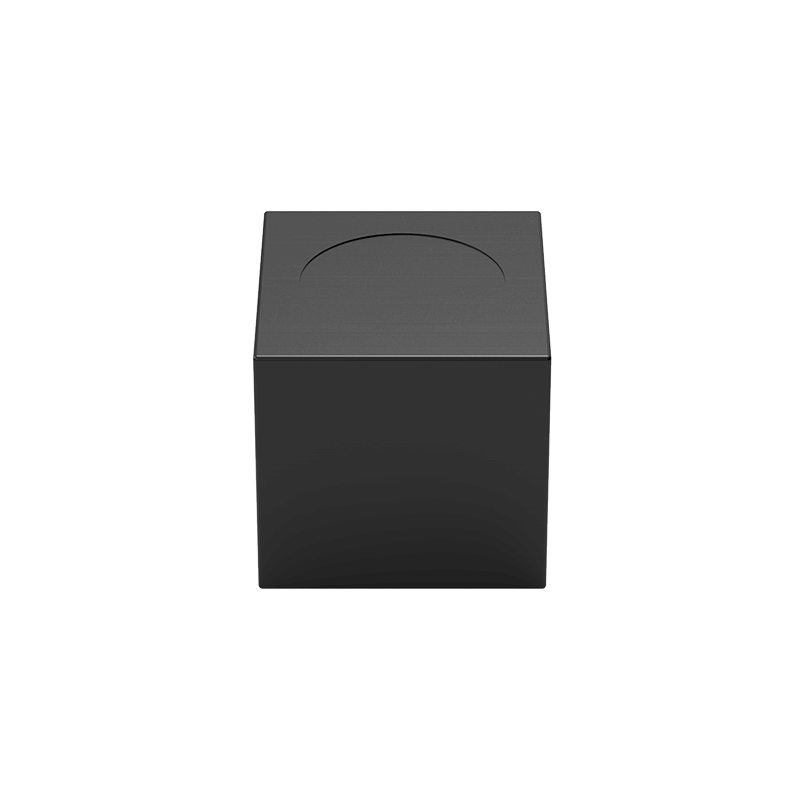

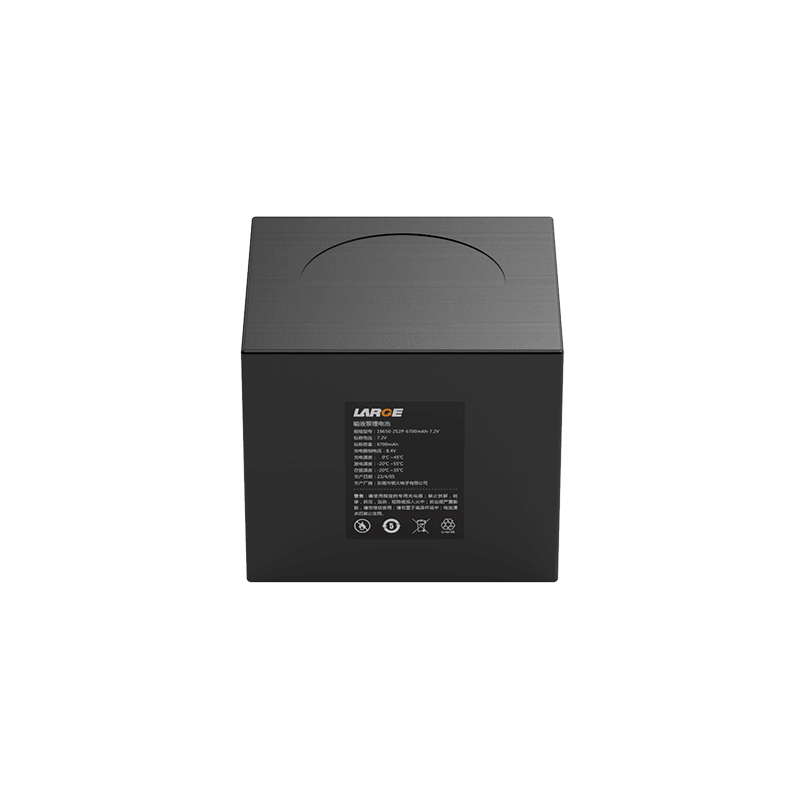

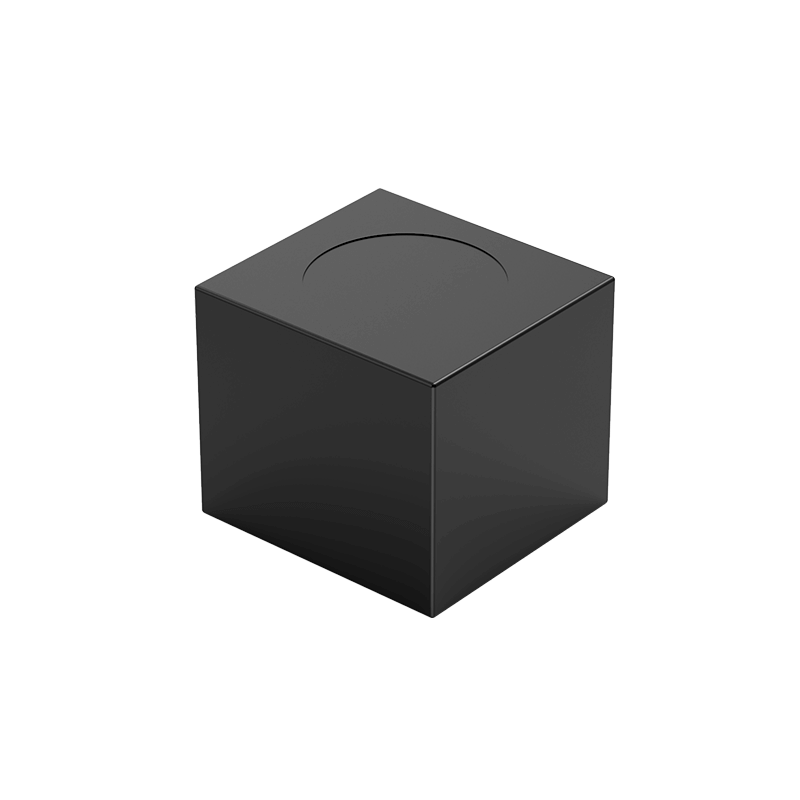

12.8V 52.0Ah Outdoor Monitoring Ball Square Lithium Iron Phosphate Battery Pack

Product number: 01WQ0093-01

Cell model: IF52/52Ah/3.2V

Battery specifications: IF52-4S1P/52Ah/12.8V

Nominal voltage: 12.8V

Nominal capacity: 52Ah

Rated capacity: 50Ah

Charging voltage: 14.6V

Charging current: ≤5.0A

Discharge current: 8.0A

Instantaneous discharge current: 9.0A

Discharge cut-off voltage: 15.0V

Internal resistance of finished product: ≤100mΩ

Battery weight: ≤4.5KG

Communication protocol: 485 (baud rate: 9600)

Product size: 133*140*154mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 25℃

Battery case: PVC

Intelligent lithium-ion battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, charge and discharge over temperature protection, power calculation, etc.

Application fields: outdoor monitoring and control, security communication
