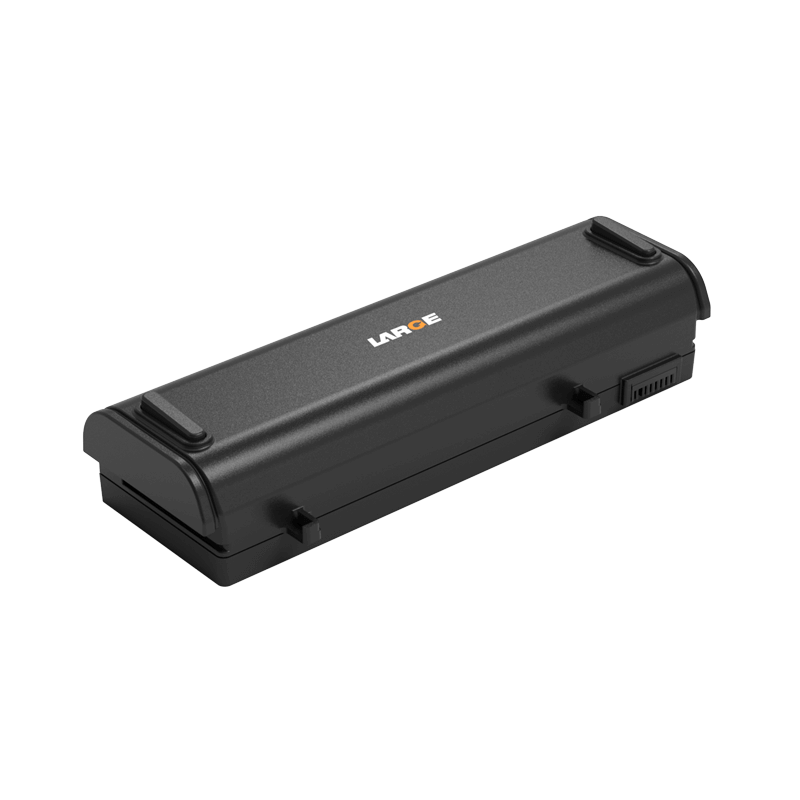

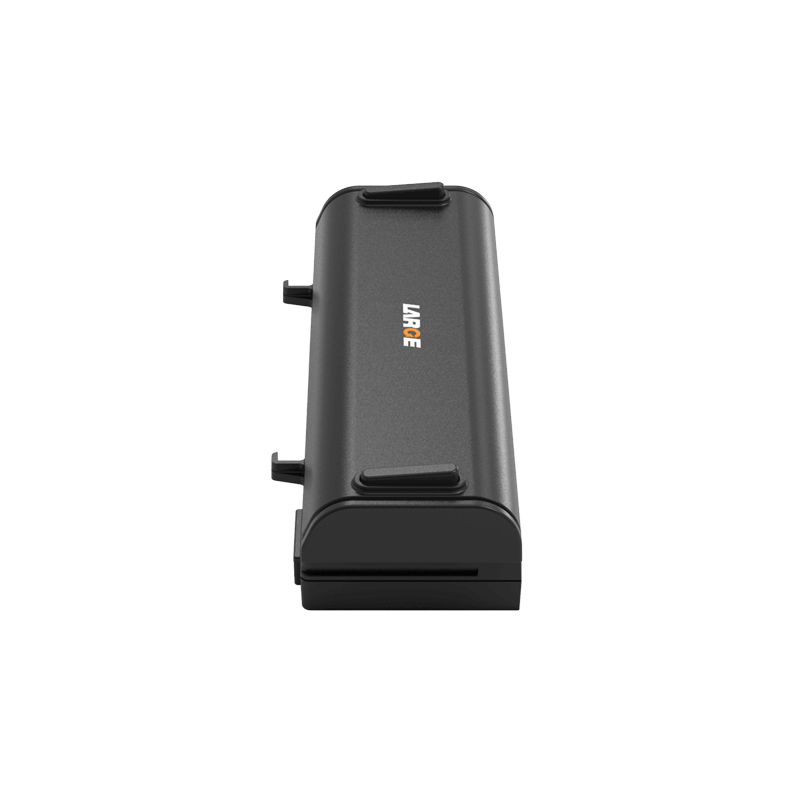

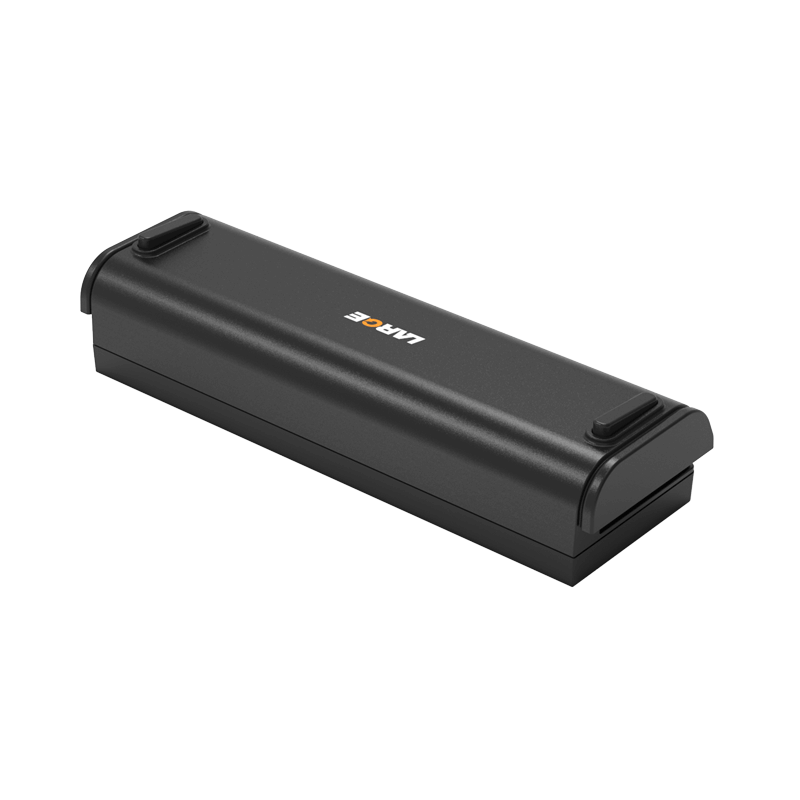

18650 14.4V 12.4Ah B Samsung Battery for B Supersonic Diagnostic Set

Project number: 09AQ109-13

Cell model: INR18650-35E/3350mAh/3.6V

Battery specification: 18650-4S4P/ 12.4AH /14.4V

Nominal voltage: 14.4V

Nominal capacity: 12.4Ah

Charging voltage: 16.8V

Charging current: ≤3.40A

Discharge current: 6.80A

Instantaneous discharge current: 8.0A

Discharge cut-off voltage: 12.0V

Internal resistance: ≤250mΩ

Battery weight: 850 GB

Product dimension: 41.5*77.69*219.88mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ° C to 23 ° C

Battery case: ABS+PC

Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: B ultrasound machine, medical equipment
