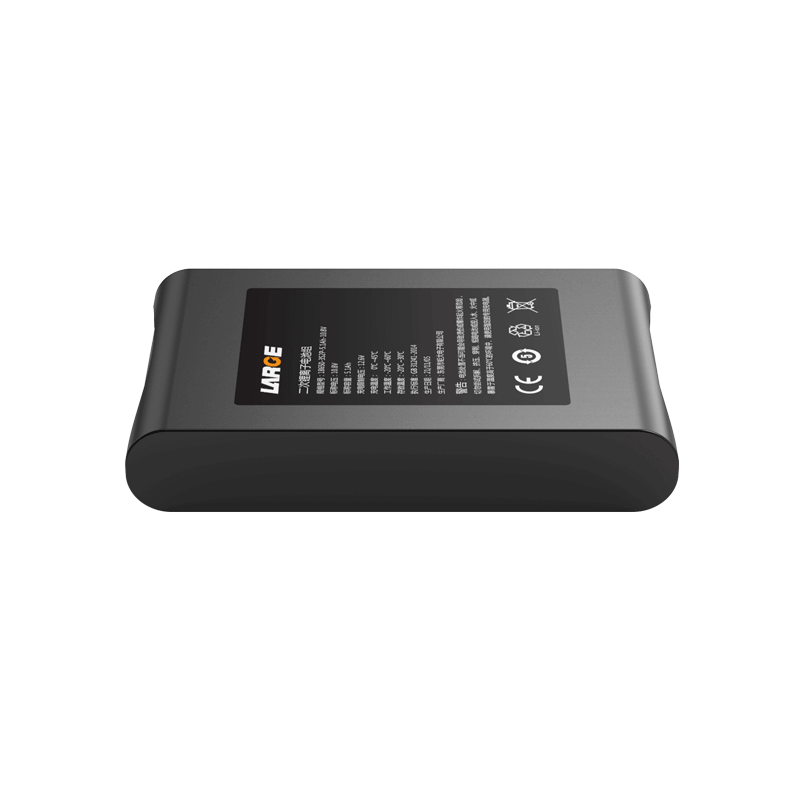

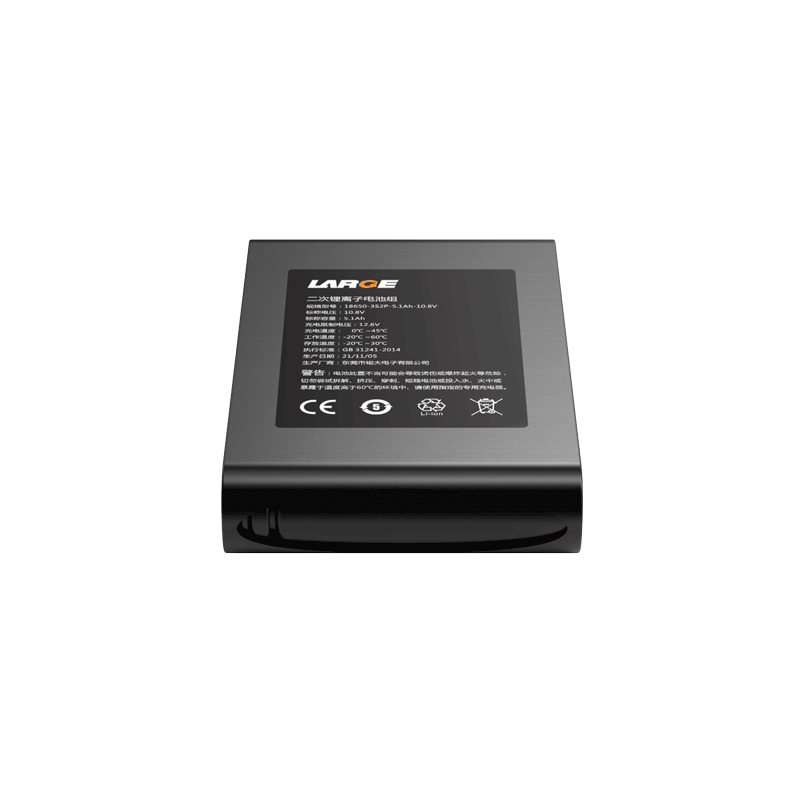

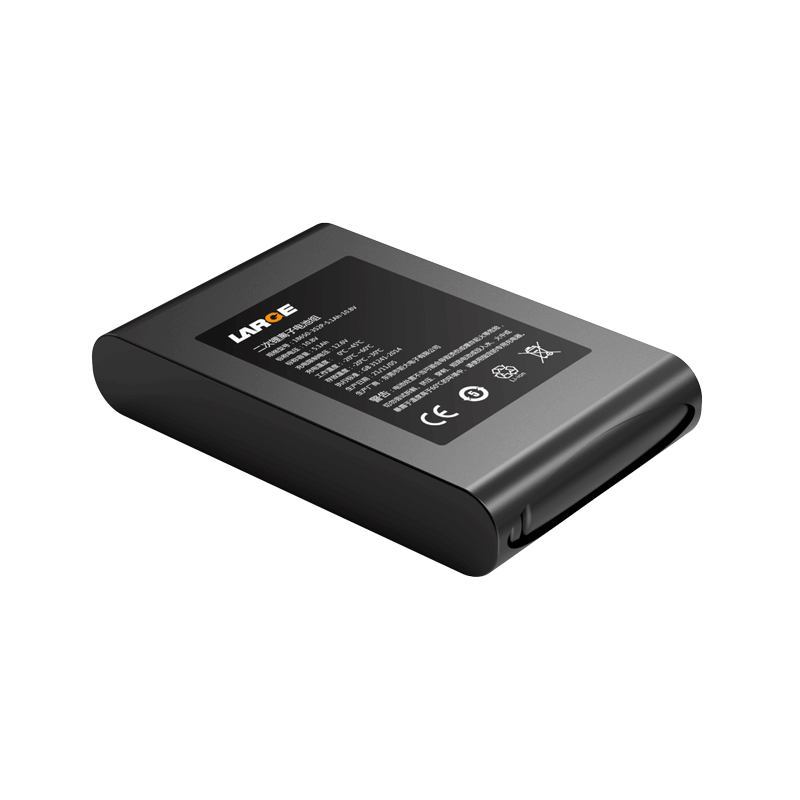

18650 10.8V 5.1Ah BAK Lithium-ion Battery for Portable Massager

Product number: 01WQ0087-01/TA/TB

Cell model: 18650-2550mah /3.6V

Specification: 18650-3S2P-5.1 AH-10.8V

Product size: 113 mm *72 mm *20.5mm (Max)

Nominal voltage: 10.8V

Nominal capacity: 5.1Ah

Charging voltage: 12.6V

Charging current: 2.55A

Discharge current: 5.1A

Discharge cut-off voltage: 8.4V

Product internal resistance: ≤200mΩ

Battery weight: 320G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20~+60℃ (less than 1 month) -20~ 45 ℃(less than 3 months); -20~+30℃ (less than 12 months)

Battery case: PVC

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Portable massager

Product Features

1.PVC process is simple, reliable and easy to install.

2.Input terminal: Adopt the output mode of GB UL wire to increase conductive reliability.

3.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.

4.The battery pack is safe, has good discharge performance and long cycle life.

5.The battery has long cycle life, in line with low carbon, energy saving, environmental protection values;
