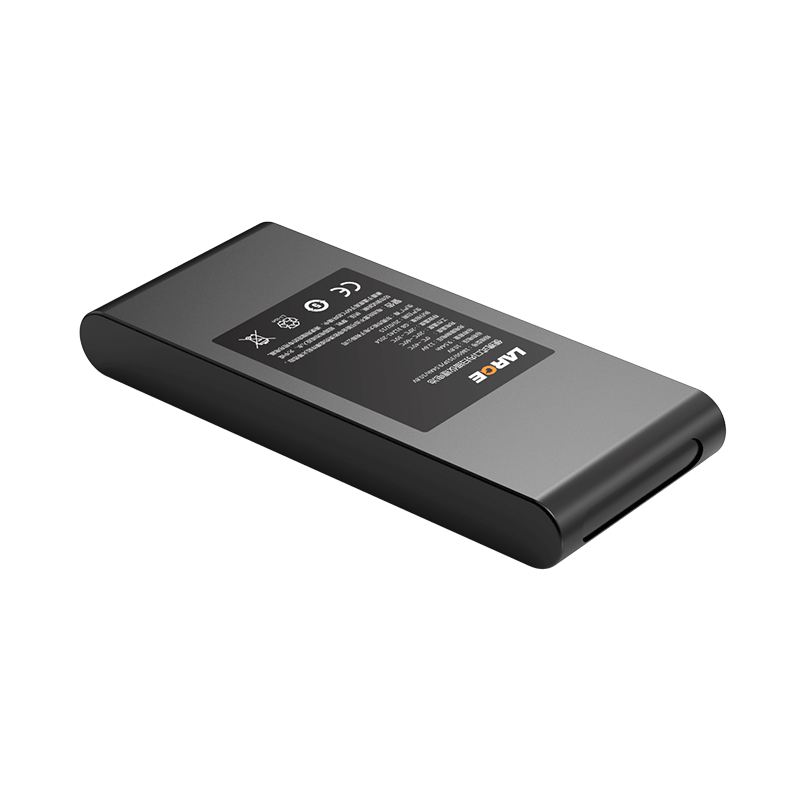

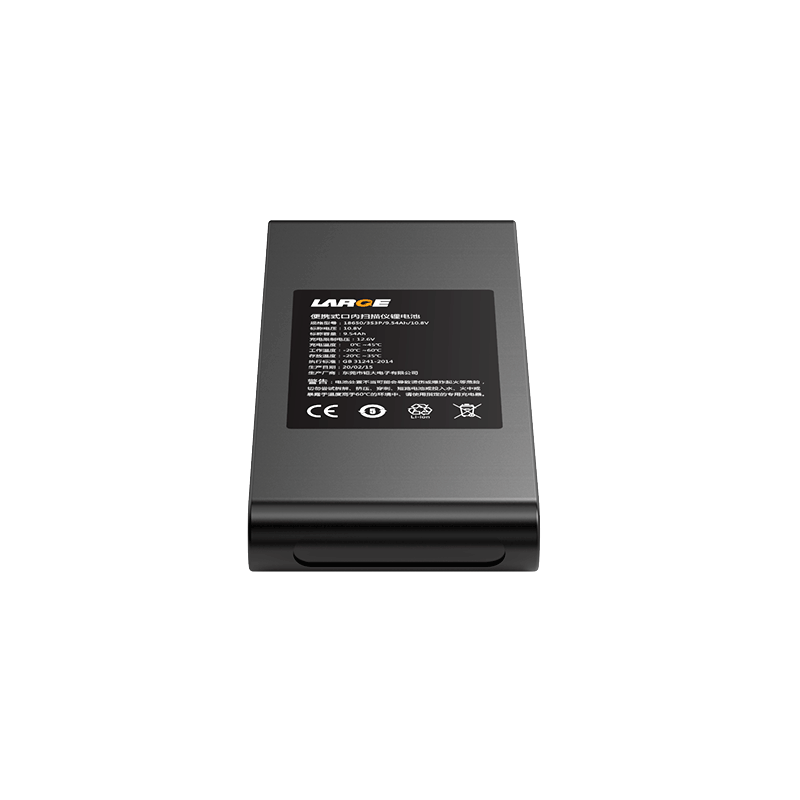

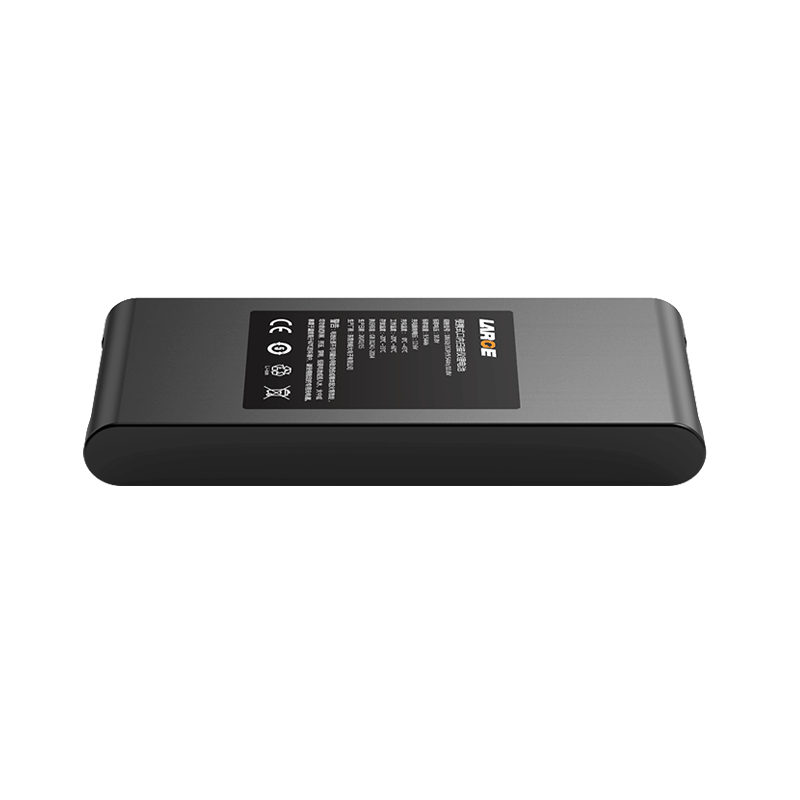

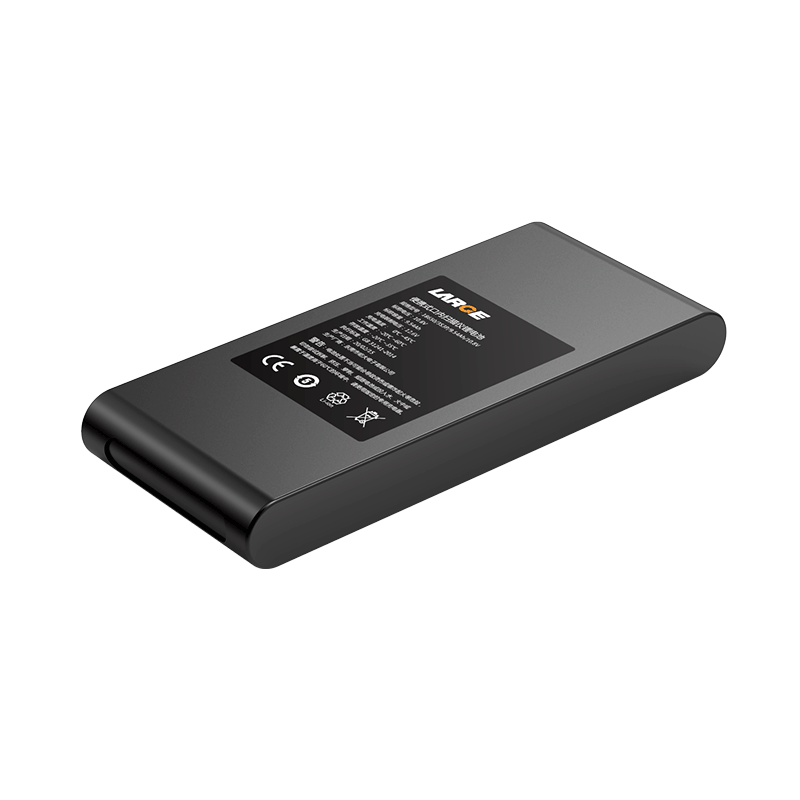

18650 9.54Ah 10.8V Panasonic Battery for Portable Intraoral Scanner

Product number: 08DQ0045-01

Cell model: 18650/3180mah /3.6V

Specification: 18650/3S3P/ 9.54AH /10.8V

Product size: 169*73*21mm (Max)

Nominal voltage: 10.8V

Nominal capacity: 9.54Ah

Product internal resistance: ≤330mΩ

Charging voltage: 12.6V

Charging current: ≤4A

Discharge current: ≤4A

Discharge cut-off voltage: 7.5V

Battery weight: 500G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35°C

Battery case: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: Portable intraoral scanners, portable medical devices

Product Features

1.Blue PVC heat shrinkable film is simple, reliable and easy to install.

2.Connector plug terminal: The JST plug is used to output the connector to increase conductive reliability.

3.Data communication management: Use TI-SMBUS software management chip, SMBus communication accurate data transmission, precise temperature control, to eliminate security risks to the greatest extent.

4.Battery management: Adopt imported seigong protection chip with good stability, high precision monitoring, precise control, and ESD protection, eliminating safety risks to the maximum.

5.The battery pack has good safety, nice discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
