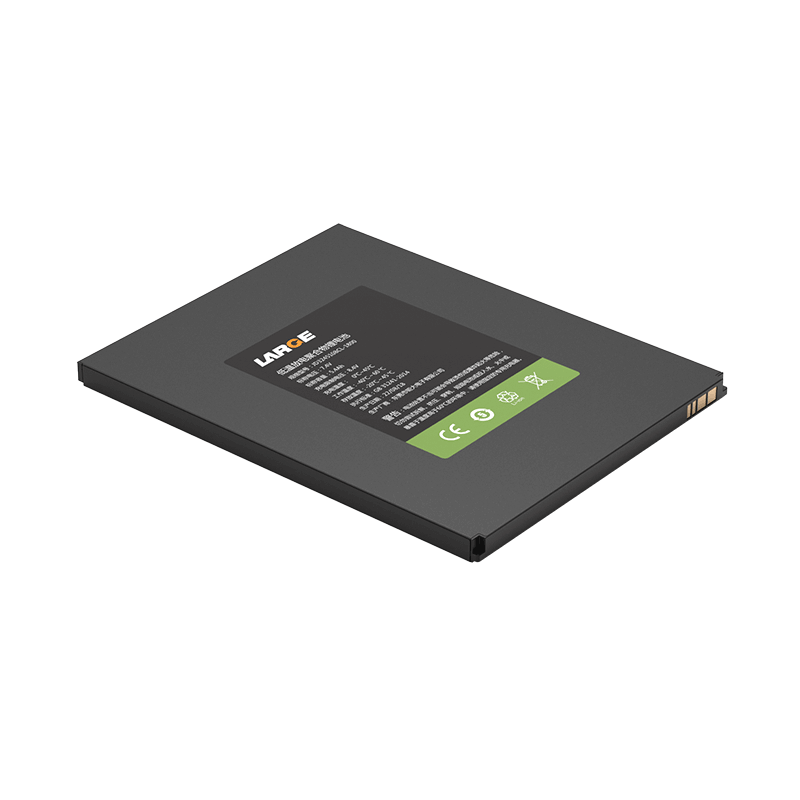

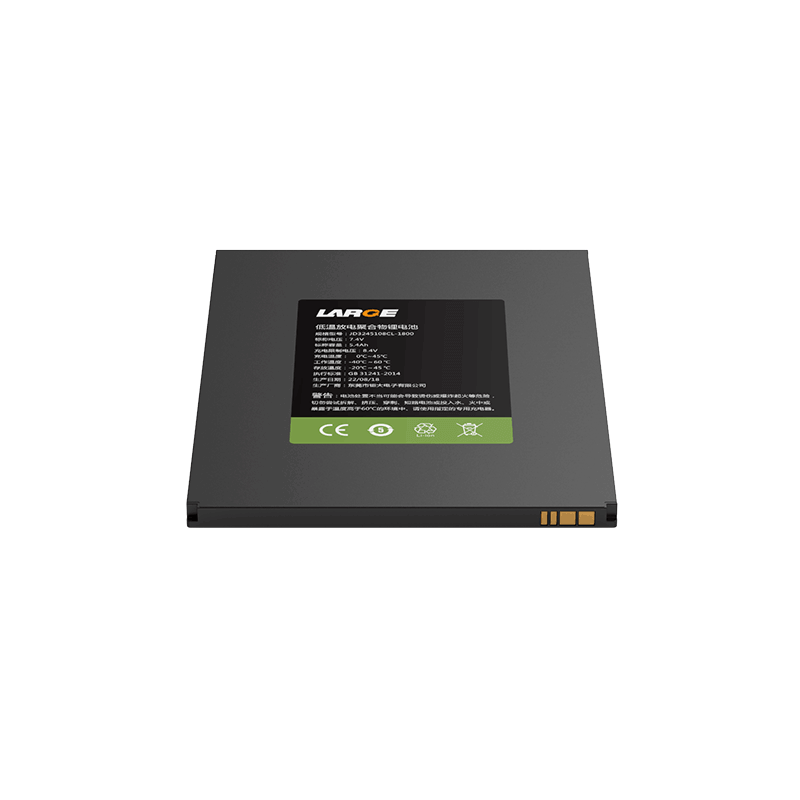

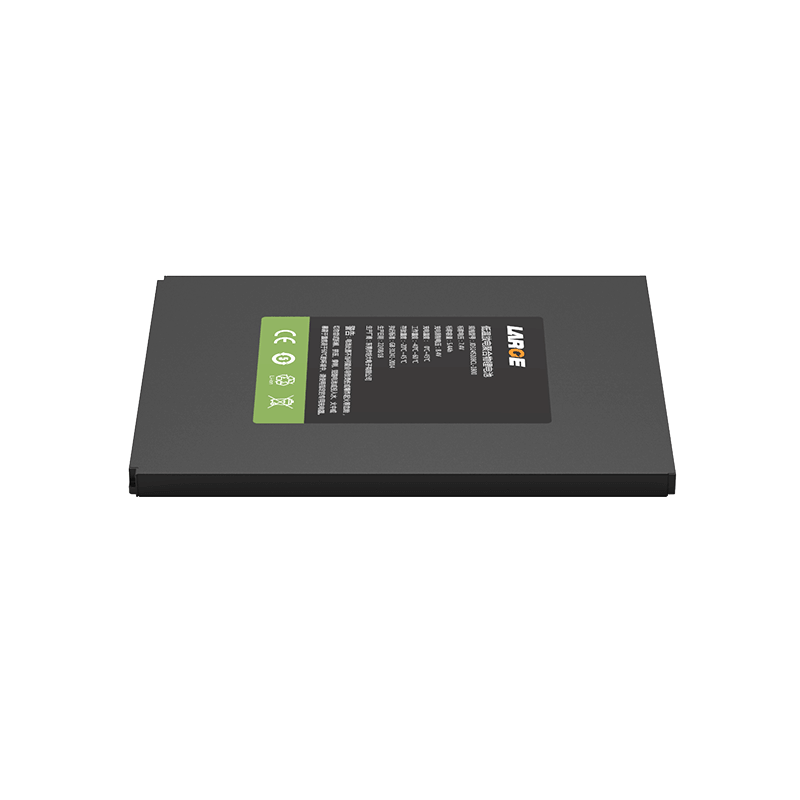

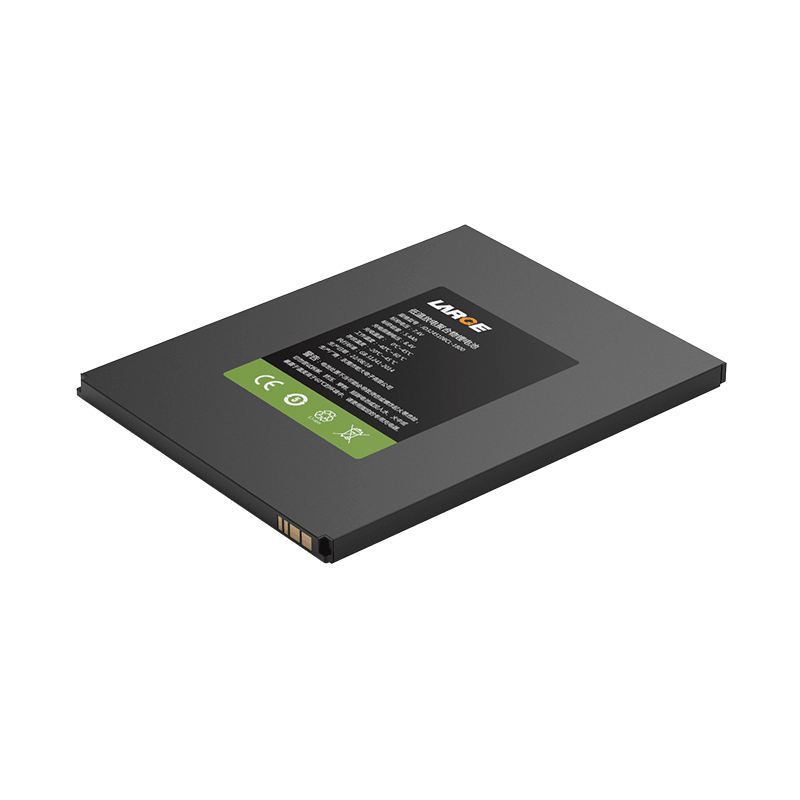

7.4V 5.4Ah Low Temperature Discharge Lithium Polymer Battery

7.4V 5.4Ah Low Temperature Discharge Lithium Polymer Battery
7.4V 5.4Ah Low Temperature Discharge Lithium Polymer Battery
7.4V 5.4Ah Low Temperature Discharge Lithium Polymer Battery
7.4V 5.4Ah Low Temperature Discharge Lithium Polymer Battery

Product Detail

Product number: 35AQ528-05

Cell model: JD3245108CL-1800

Battery specification: 7.4V-5.4Ah

Product size: 150.5mm×116.5mm×7.8mm

Nominal voltage: 7.4V

Nominal capacity: 5.4Ah

Charging voltage: 8.4V

Charging current: 5A

Discharge current: 5A

Discharge cut-off voltage: 5V

Internal resistance of finished product: ≤180mΩ

Battery weight: ≤280g

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35 ℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery case: plastic case

Communication mode: I2C communication protocol

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: laptop

*
*
*
*
*
