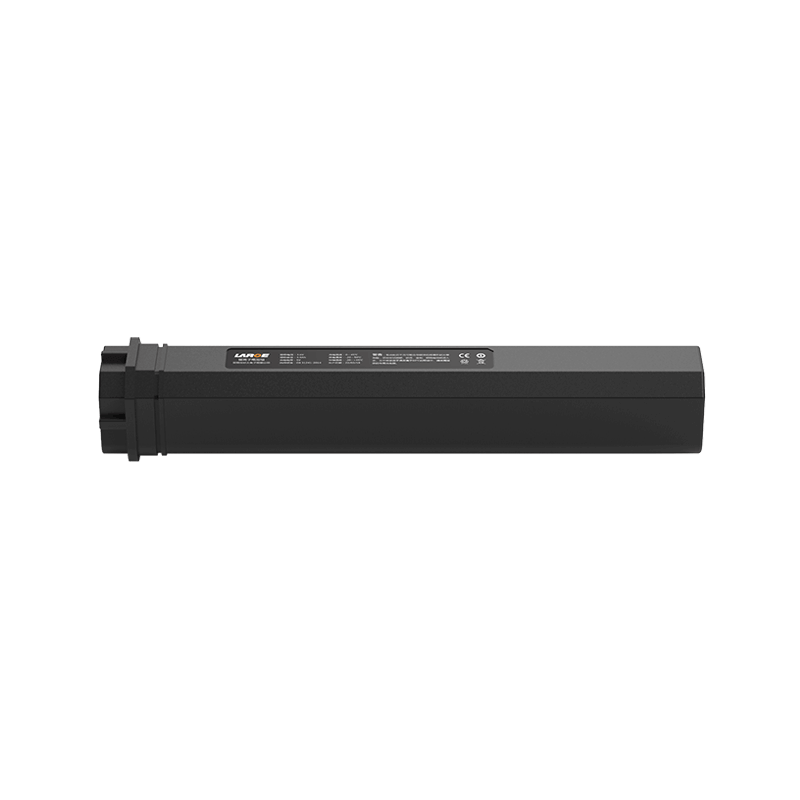

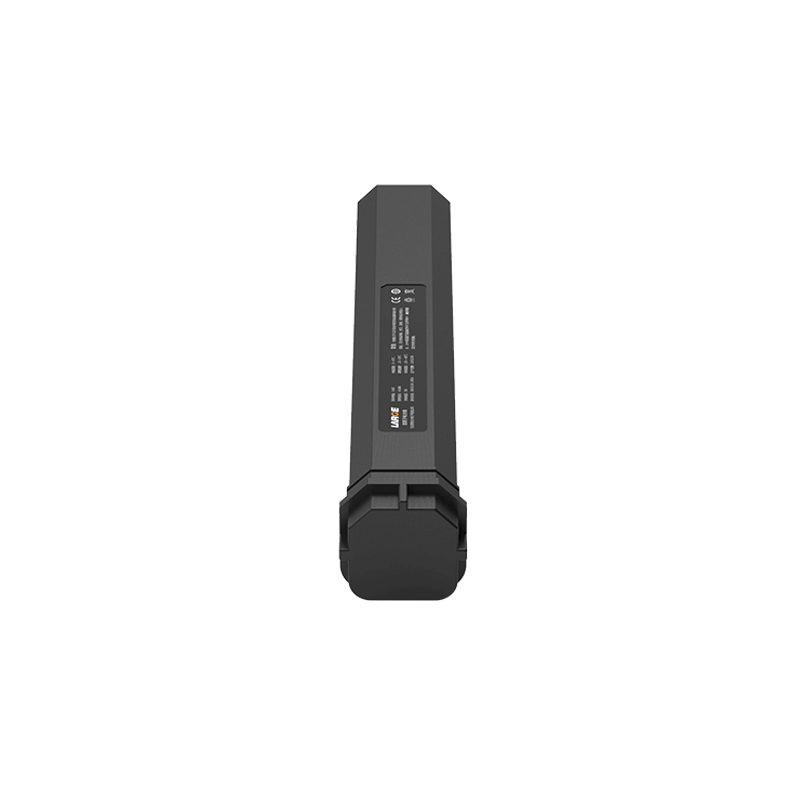

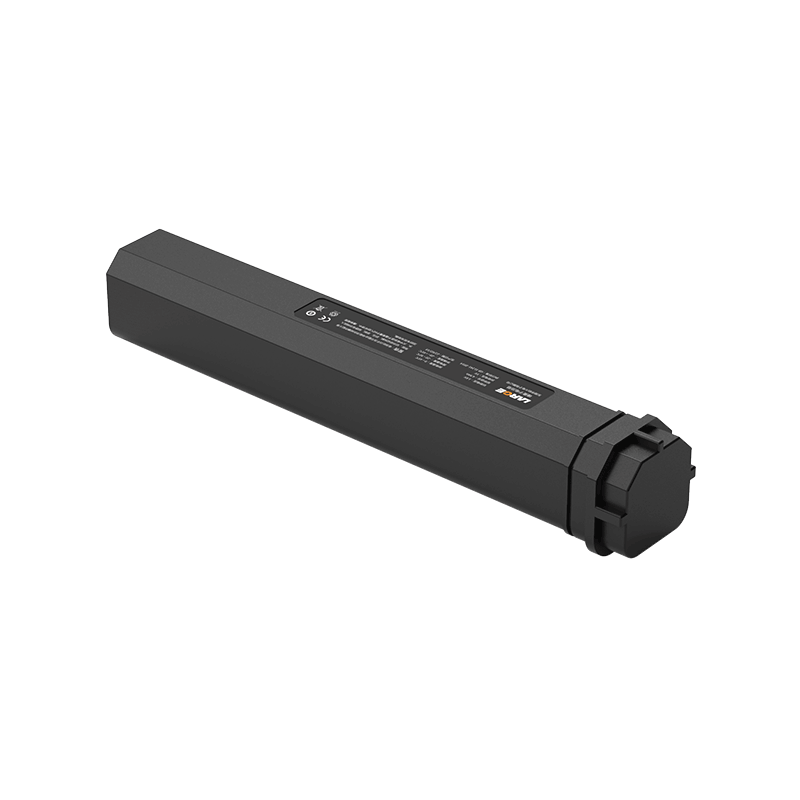

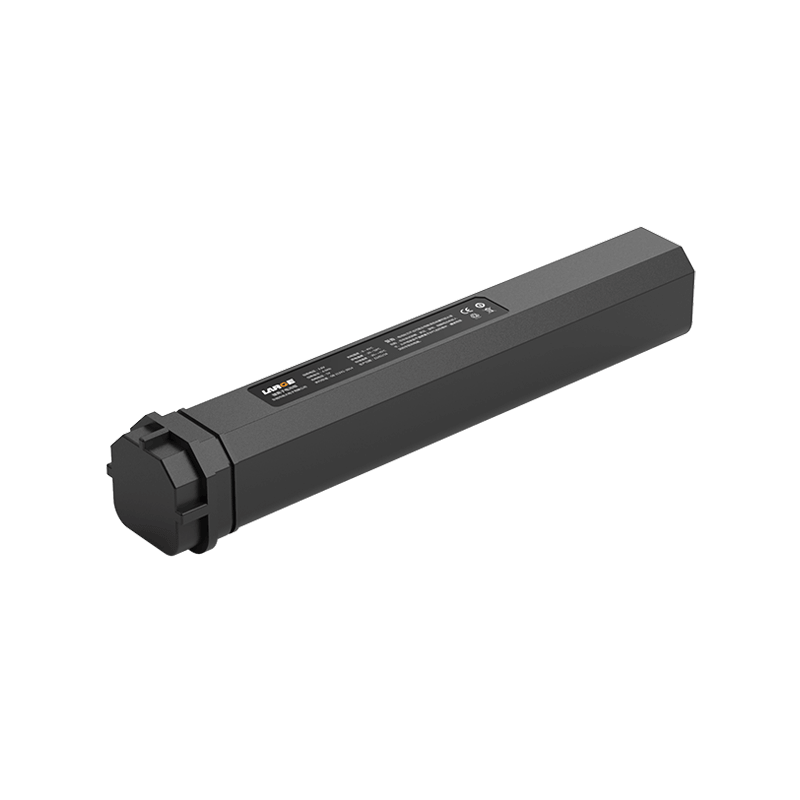

21700 7.2V 4900mAh Lithium-ion battery for infrared thermal imager

21700 7.2V 4900mAh Lithium-ion battery for infrared thermal imager
21700 7.2V 4900mAh Lithium-ion battery for infrared thermal imager
21700 7.2V 4900mAh Lithium-ion battery for infrared thermal imager
21700 7.2V 4900mAh Lithium-ion battery for infrared thermal imager

Product Detail

Product number: 01DQ0030-10

Cell model: 21700-4900mAh-3.6V

Battery specification: 21700-2S1P-4900mAh-7.2V

Product size: 157*25*28mm

Nominal voltage: 7.2V

Nominal capacity: 4900mAh

Internal resistance of finished product: ≤150mΩ

Charging voltage: 8.4V

Charging current: ≤3A

Discharge current: ≤3A

Discharge cut-off voltage: 6.0V

Battery weight: 160g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 ~ 35 ° C

Battery package: engineering plastic ABS+PC

Output mode: gold plated shrapnel

Lithium-ion protection: short circuit protection, over charge protection, over discharge protection, over current protection,ESD protection, etc.

Application: infrared thermal imaging equipment, portable infrared equipment

*
*
*
