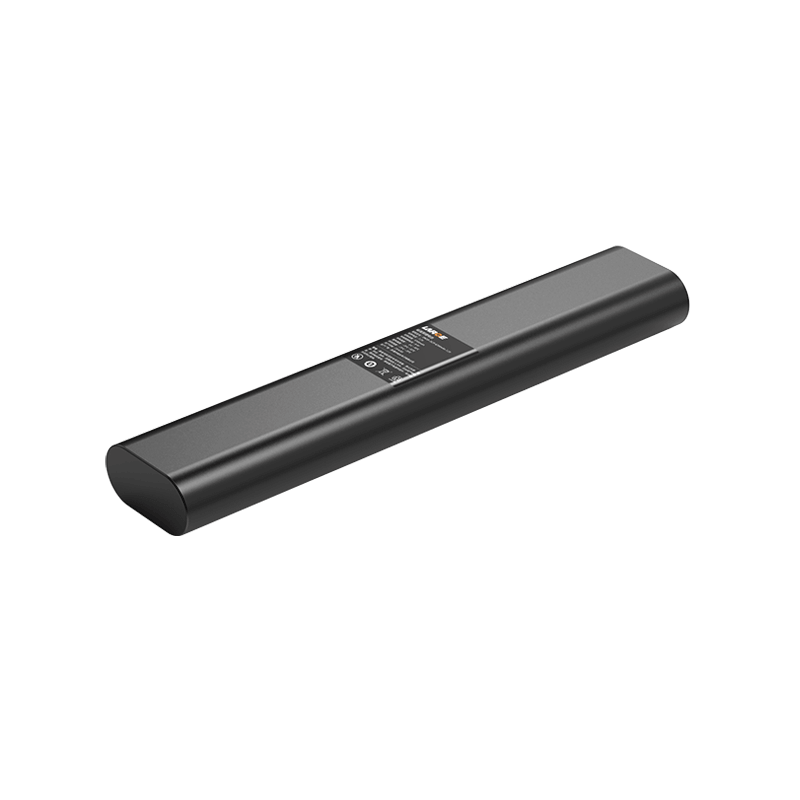

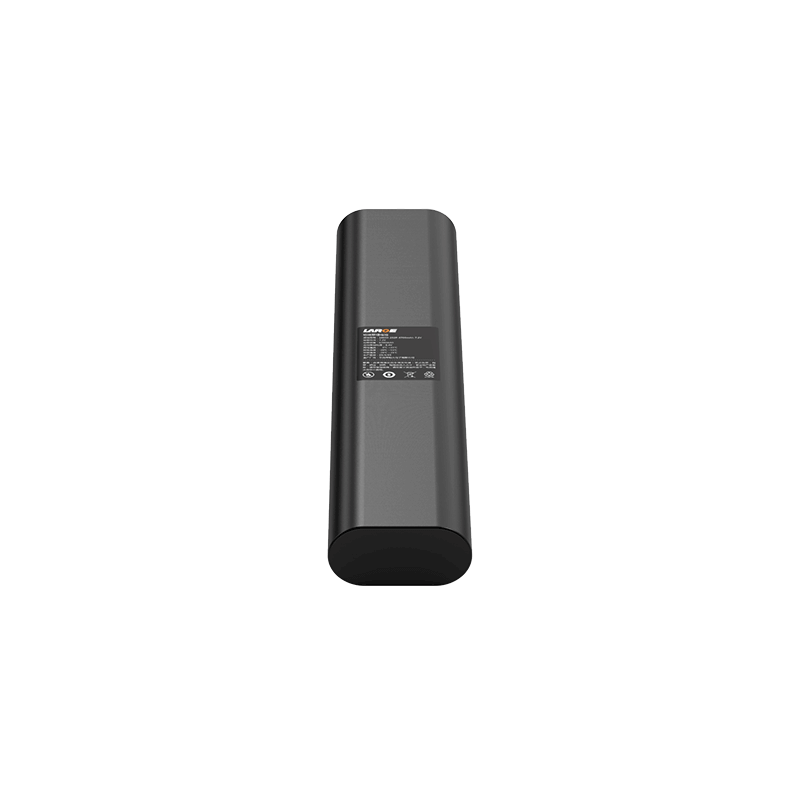

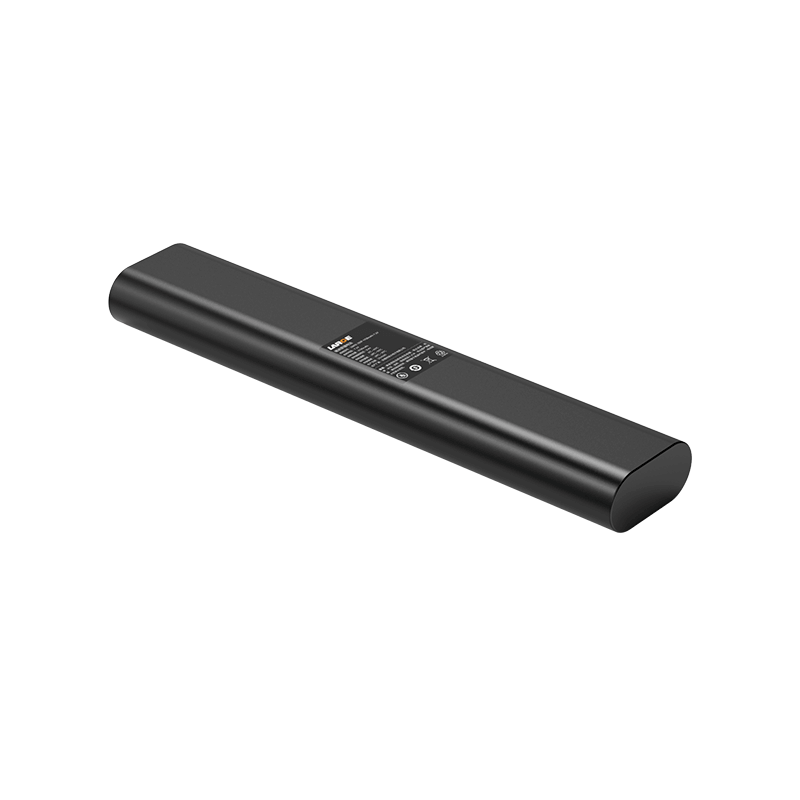

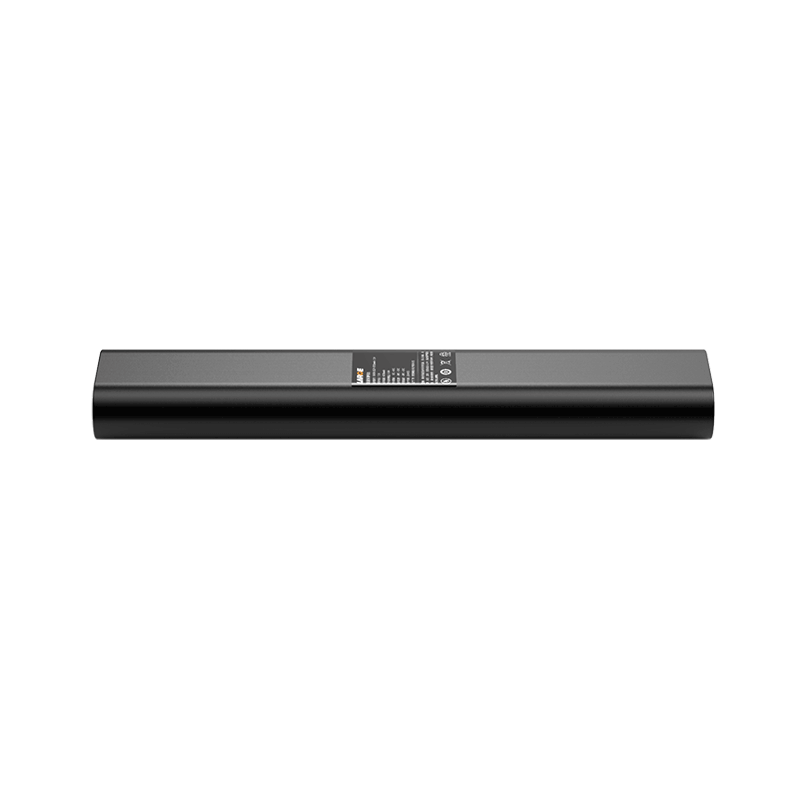

Built-in Lithium-ion Battery Pack 21700 10.8V 9.8Ah

Product number: 40AQ061-01

Battery model: INR21700-4900mAh-3.6V

Battery specifications: 21700-3S2P-10.8V-9.8Ah

Product size: 222×43.5×22mm

Nominal voltage: 10.8V

Nominal capacity: 9.8Ah

Charging voltage: 12.6V

Charging current: 4A

Discharge current: 4A

Discharge cut-off voltage: 7.5V

Finished internal resistance: ≤180mΩ

Battery weight: ≤550g

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20~+45℃ (less than 1 month) -20~ 35℃(less than 3 months); -20~+25℃ (less than 6 months)

Battery package: PVC heat seal process

Communication protocol: SMBUS

Output mode: national standard UL wire

Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, overtemperature protection, etc.

Application: Built-in battery
