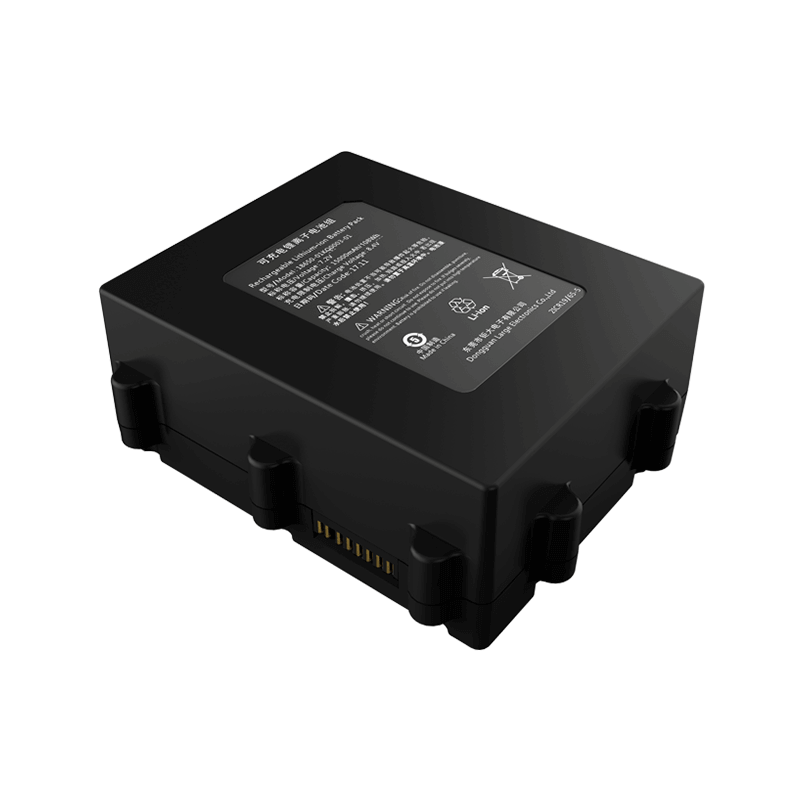

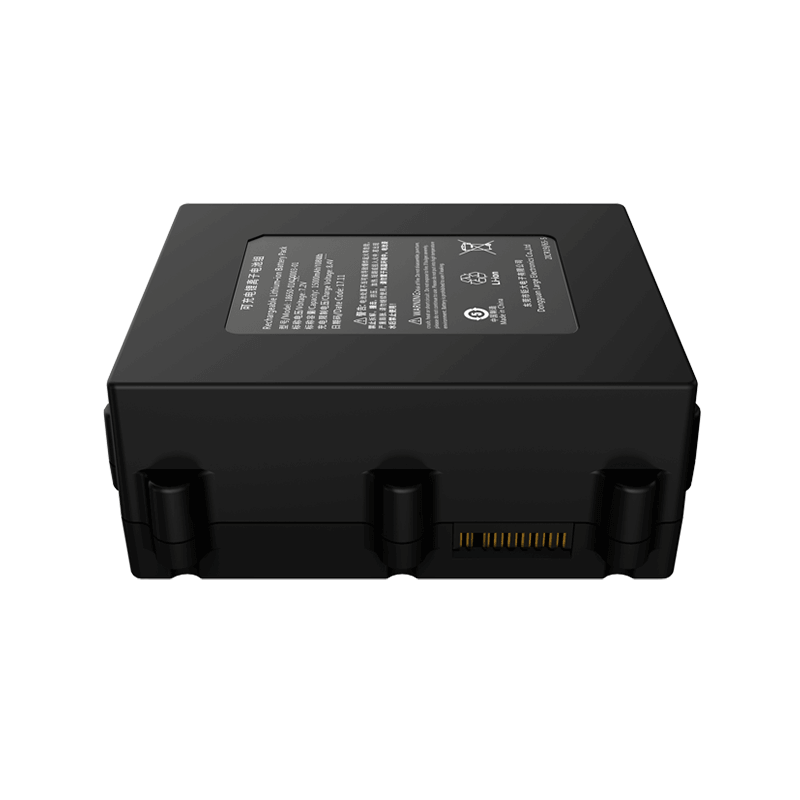

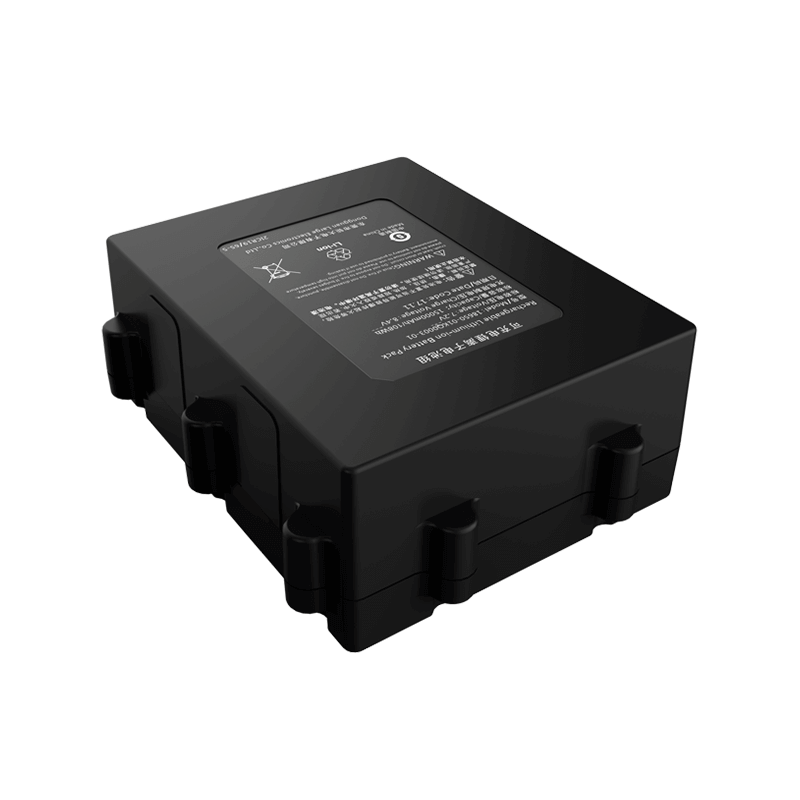

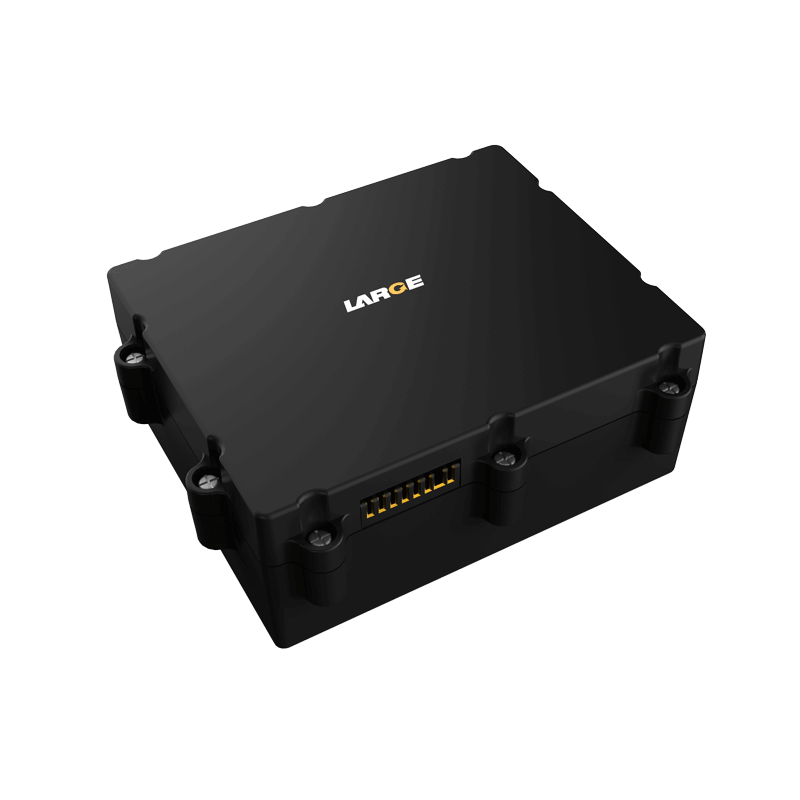

7.2V 15Ah 18650 Lithium Ion Battery Samsung for Vehicle Carrying with SMBUS Communication Port

Product Detail

Product number: 01KQ0003-01

Cell model:18650/3.6V/3000mAh

Battery specification: 18650-2S5P/7.2V/15Ah

Nominal voltage:7.2V

Nominal capacity:15Ah

Charging voltage: 8.4V

Charging current: ≤4A

Discharging current: 3A

Instant discharging current: 5A

End-off voltage: 5.4V

Internal resistance: ≤150mΩ

Battery weight: 500g

Product dimension: 46*94*124mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Temperature protection: 70℃±5℃

Battery case: engineering plastic, ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, I2C communication, etc.

Application field: vehicle equipment, monitor device, Consumer Electronics

Product features

1. Adopt ABS+PC housing to strengthen the battery performances of reliability and soundness.

2. Output of metal connector: output by gold plating shrapnel connector so as to strengthen the reliability of conductivity.

3. Data communication management: adopt IC+TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. The battery pack has good safety performance, nice discharging capability and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
