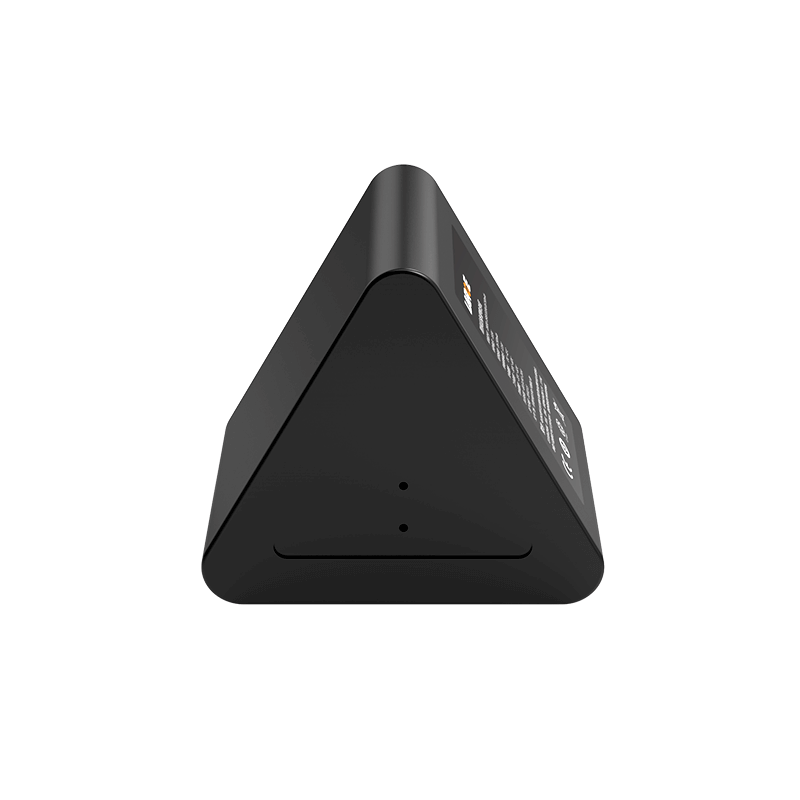

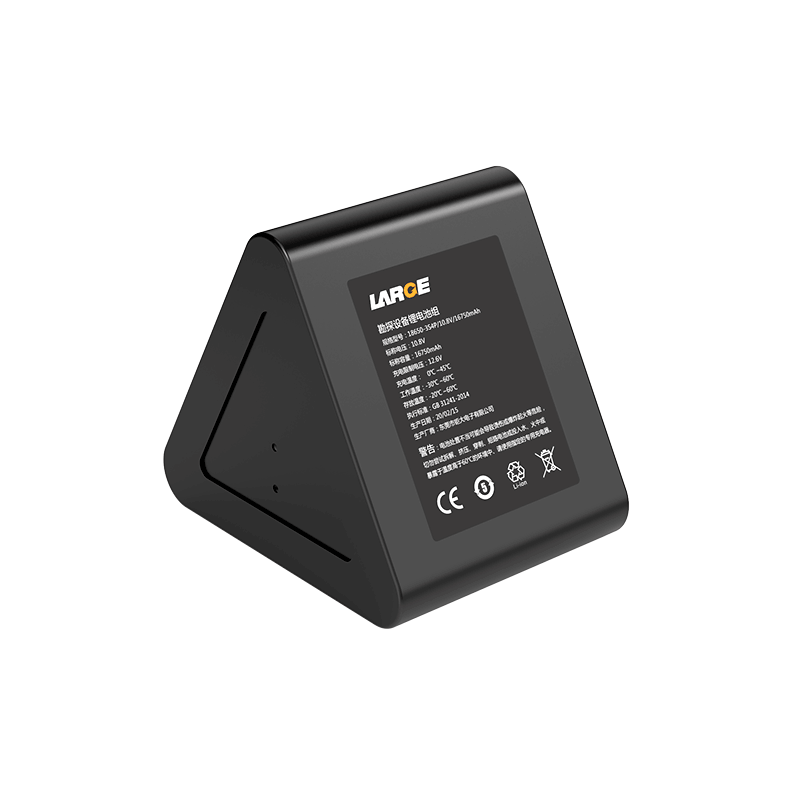

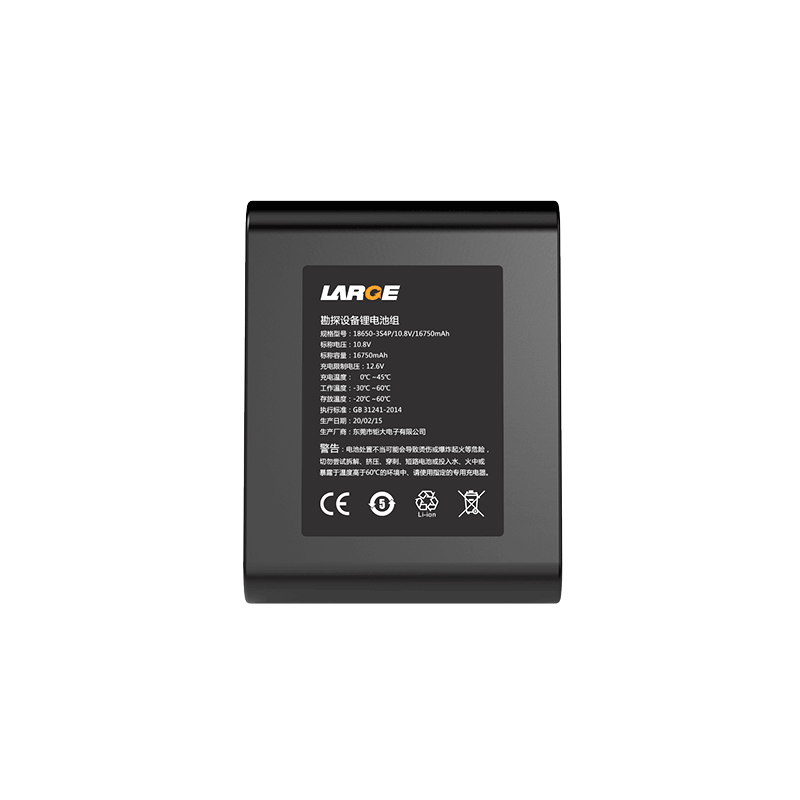

18650 10.8V 16750mAH Lithium-ion Battery for Exploration Equipment

18650 10.8V 16750mAH Lithium-ion Battery for Exploration Equipment
18650 10.8V 16750mAH Lithium-ion Battery for Exploration Equipment
18650 10.8V 16750mAH Lithium-ion Battery for Exploration Equipment
18650 10.8V 16750mAH Lithium-ion Battery for Exploration Equipment

Product Detail

Project number: 37DZ078-08

Cell model: 18650/3.6V/3350mAh

Battery specification: 18650-3S4P/10.8V/16750mAh

Nominal voltage: 10.8V

Nominal capacity: 16,750 mah

Charging voltage: 12.6V

Charging current: ≤5A

Discharge current: 5A

Instantaneous discharge current: 7-9A

Discharge cut-off voltage: 8.1V

Finished product internal resistance: ≤150mΩ

Battery weight: 600g

Product size: 71.5*92*92.5mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -30 ~ 60℃

Storage temperature: -20 ℃ to 60℃

Battery case: PVC package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Portable testing equipment, exploration equipment

*
*
*
