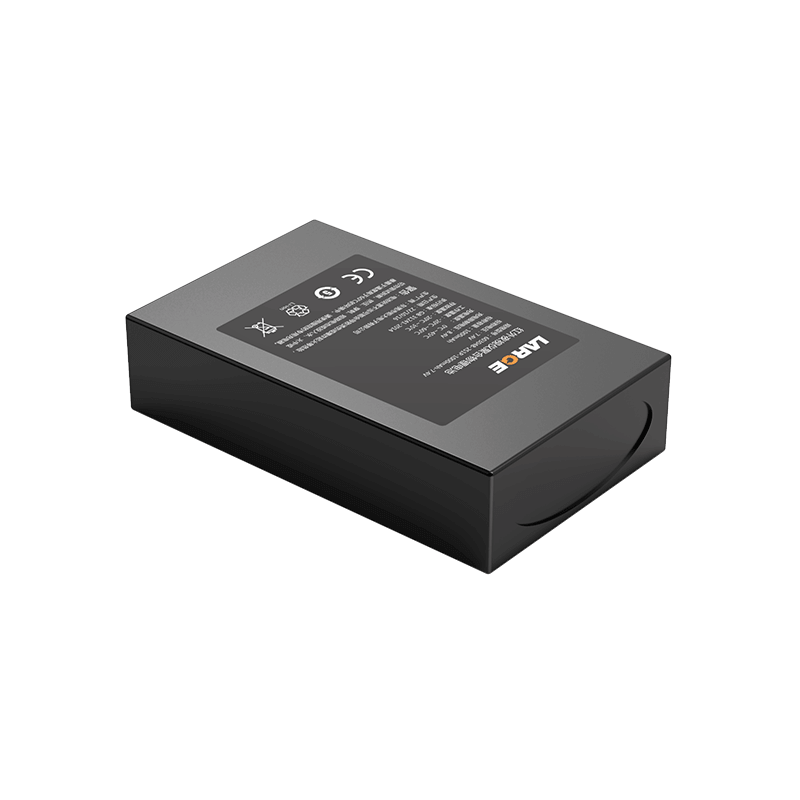

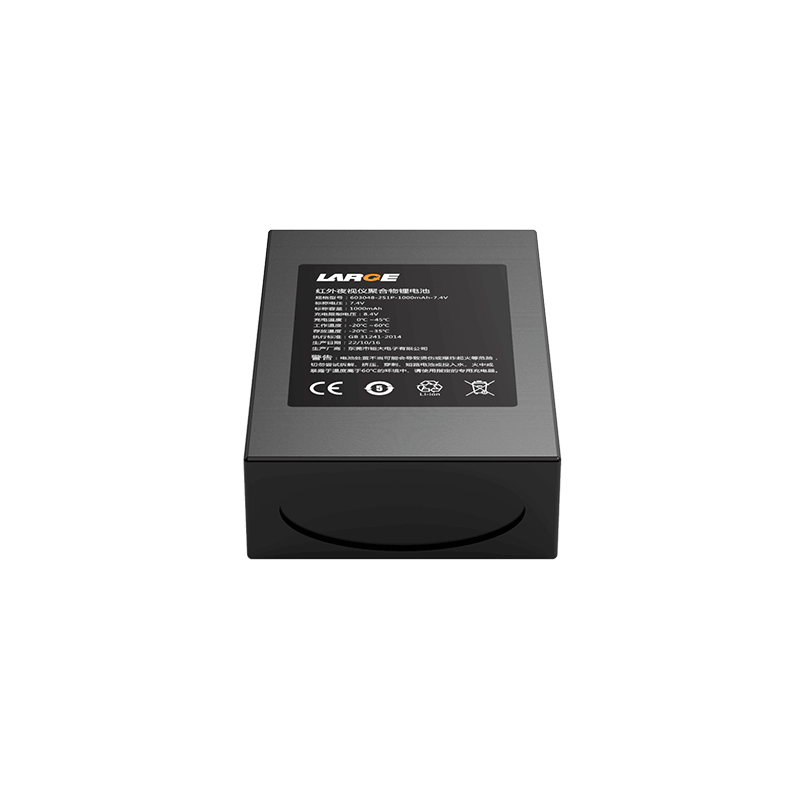

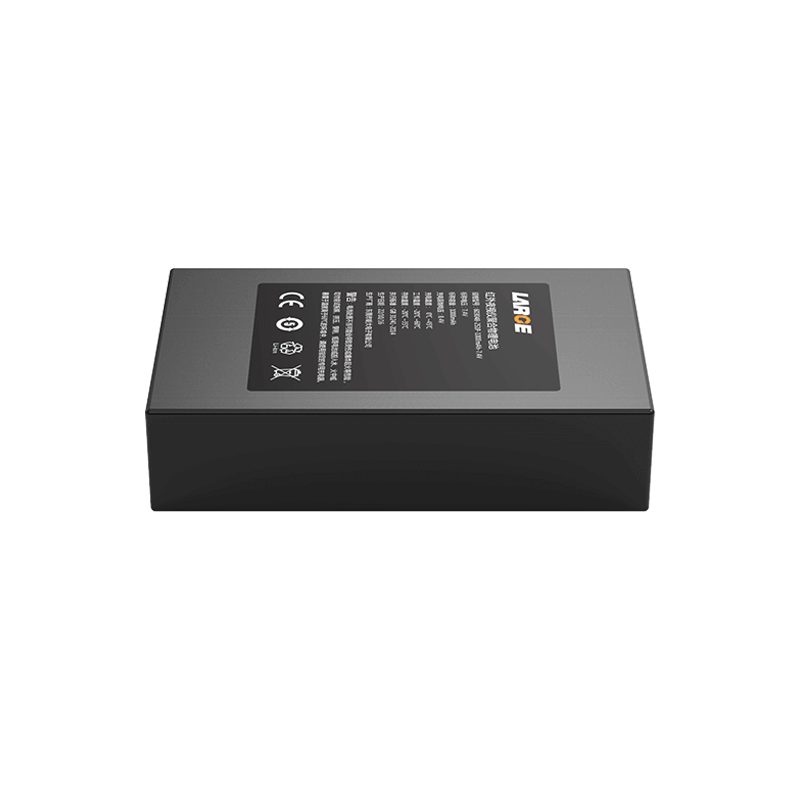

603048 3.7V 1000mAh Lithium Polymer Battery Pack

Application Background

This battery solution is designed for infrared night vision devices and portable testing equipment, suitable for night observation, outdoor inspection, and low-light detection applications.
The device requires stable power supply during mobile operation and continuous imaging, with high demands on runtime endurance, output stability, and lightweight structure.

Project Challenges

Requires continuous operation of 4–8 hours or more
Night vision imaging and data processing peak load up to 1.0A
Stable discharge performance required in low-temperature outdoor environments
Compact device design with strict size and weight limitations

Customized Battery Solution

7.4V 2S1P lithium polymer configuration for stable power supply in night vision equipment
Gold-plated connector + FPC flexible cable design for improved connection reliability and easy installation
Multi-protection system (overcharge/overdischarge/overcurrent/short circuit protection) ensuring safe operation
Lightweight PVC package structure suitable for compact portable equipment integration

Application Results

Continuous night vision operation extended to 4–8 hours
Output stability in low-temperature environments improved by approx. 15%+
Enhanced portability and flexibility for outdoor applications
Improved system reliability with reduced unexpected power interruption risk
