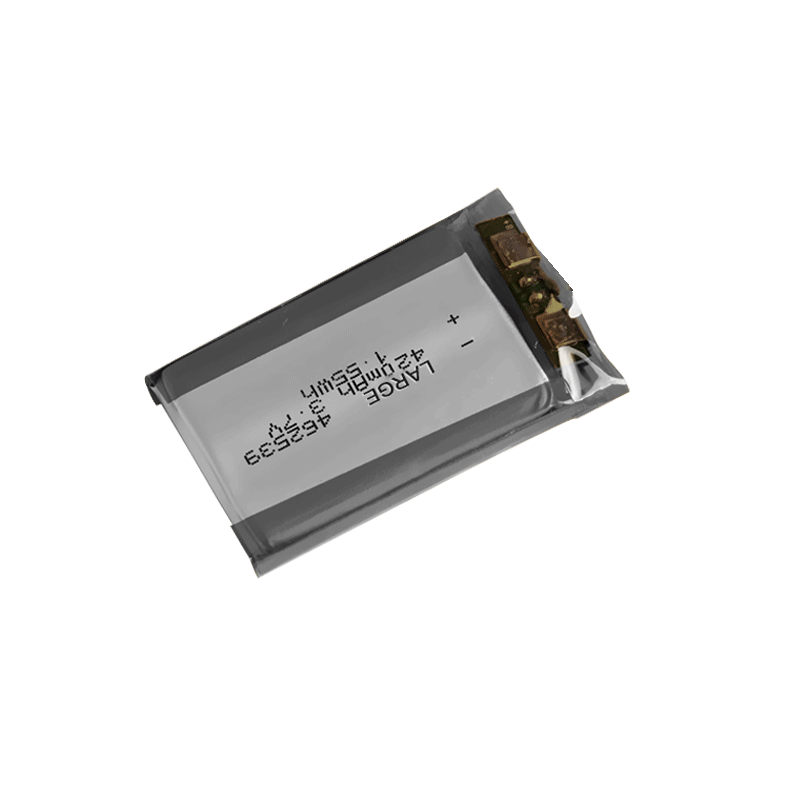

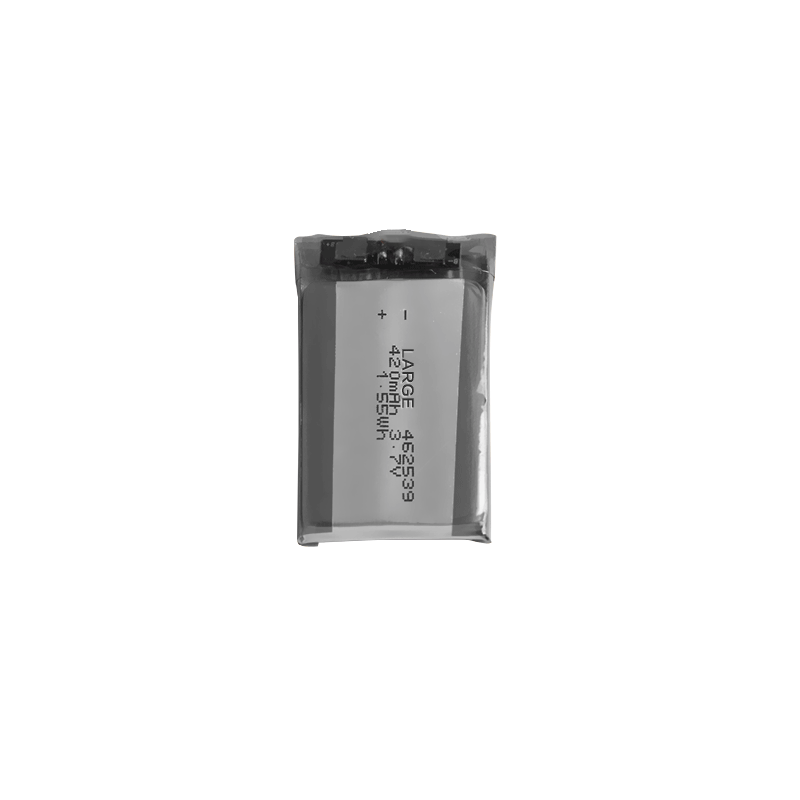

3.7V 420mAh 462539 Lithium Polymer Battery

3.7V 420mAh 462539 Lithium Polymer Battery
3.7V 420mAh 462539 Lithium Polymer Battery
3.7V 420mAh 462539 Lithium Polymer Battery

Product Detail

Product number: 00BQ0001-11

Battery model: P462539-R01/420mah /3.7V

Nominal voltage: 3.7V

Nominal capacity: 420mAh

Factory voltage: 3.80V~3.95V

Product dimension: Max: 41.0mm*25.5mm*4.7mm

Internal resistance of products: ≦ 200 m Ω

Battery weight: about 11.0g

Output mode: JST-ZHR-2P forward /UL3302/26#

Duration: 12 months

Operating temperature: 0~+45℃ charging, -10℃~+60℃ discharge

Battery charging: Charging limit voltage: 4.2V Charging current: 84mA(standard) 420mA(maximum)

Battery discharge: Cut-off voltage: 3.0V Discharge current: 84mA(standard) 630mA(maximum)

*
*
*
