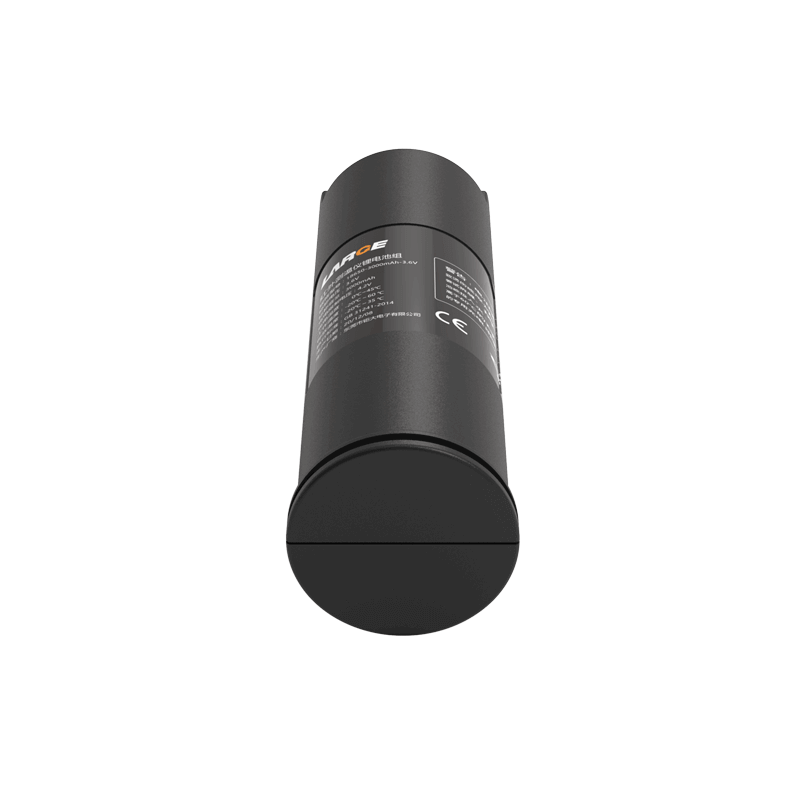

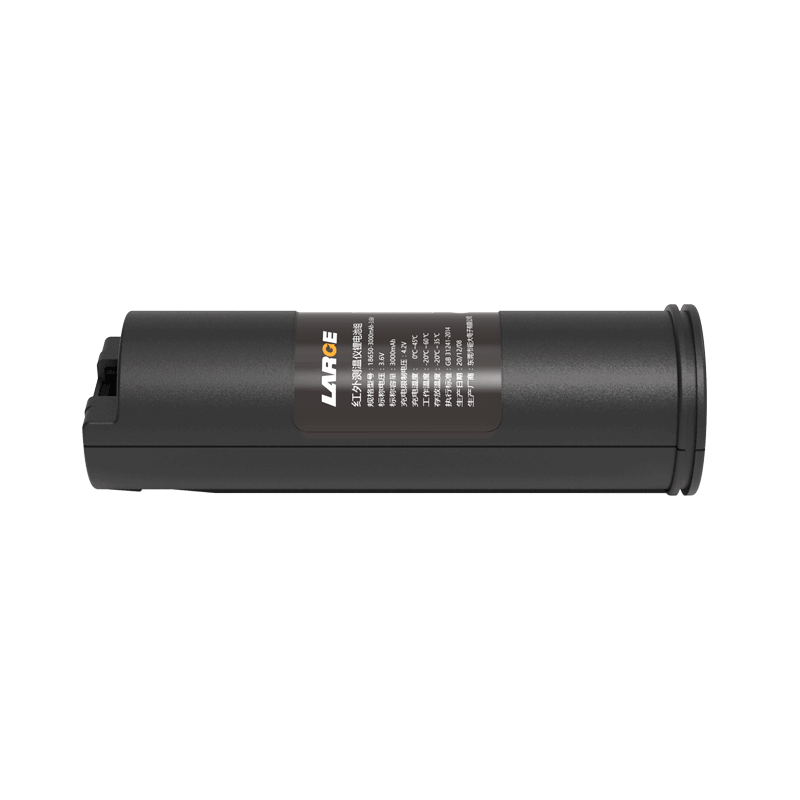

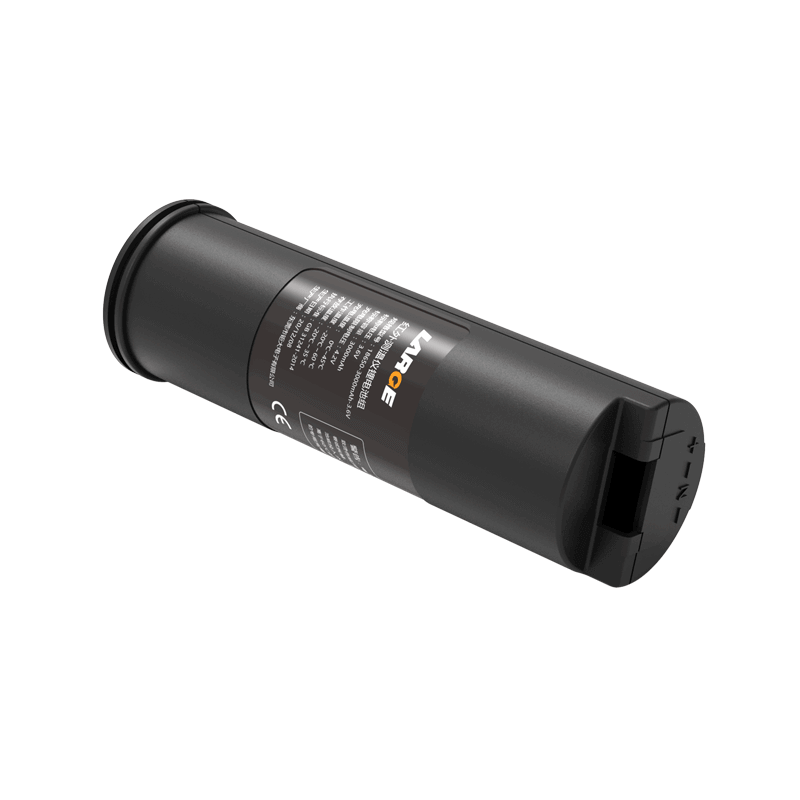

18650 3.6V 3000mAh Samsung Battery for Infrared Thermometer

Product number: 01DQ0030-05

Cell model:18650-3000mAh-3.6V

Battery specification: 18650-1S1P-3000mAh-3.6V

Product dimension: 74*φ22.8mm（Max）

Nominal voltage：3.6V

Nominal capacity：3000mAh

Charging voltage: 4.2V

Charging current: ≤1.5A

Discharging current:≤3A

End-off voltage: 3.0V

Internal resistance: ≤100mΩ

Battery weight:60g

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35℃

Battery case:ABS+PC housing

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection, overcurrent protection and ESD protection.

Application field:temperature tester, portable thermometer, handheld terminal test

Product features

1.ABS + PC case increases the reliability and immobility of the battery.

2.Hardware output: Gold-plated shrapnel output method increases conductive reliability;

3.Battery protection management: Imported seiko protection chip with good stability, high precision monitoring, precision control eliminates the security risks.

4.The battery has good safety, nice discharge performance and long cycle life.

5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
