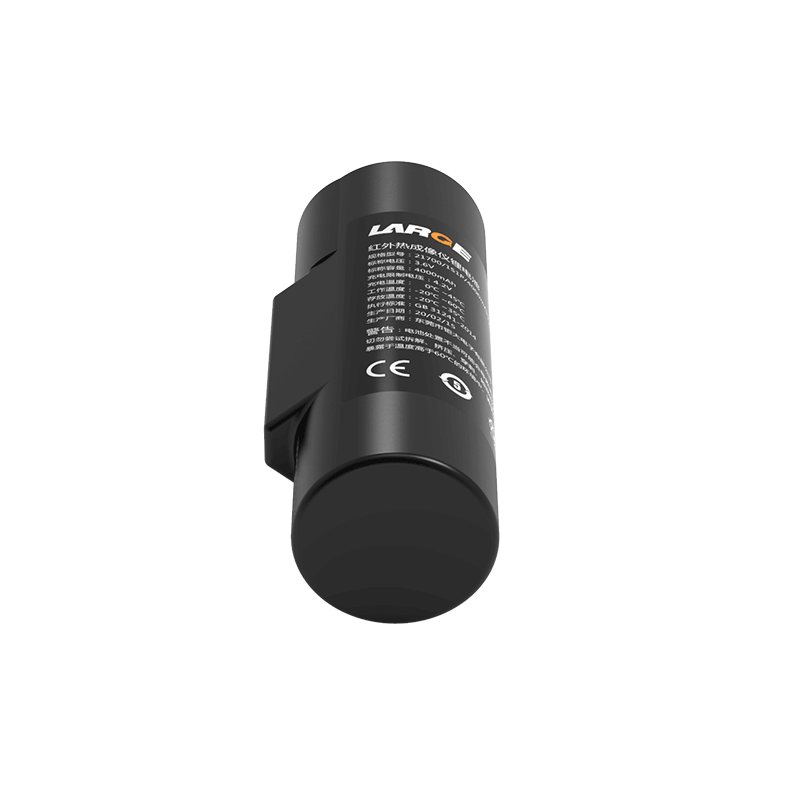

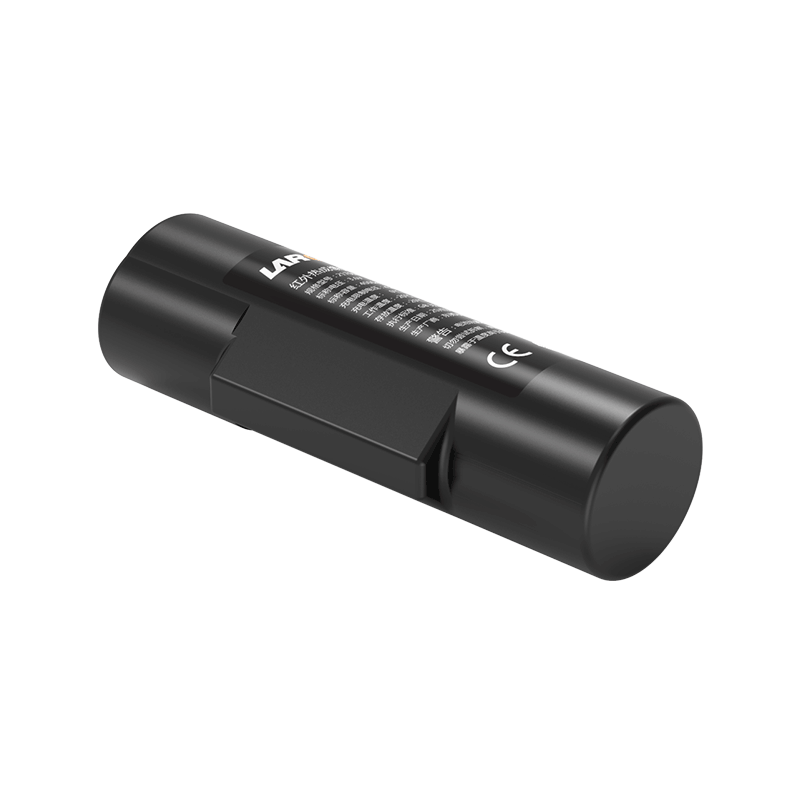

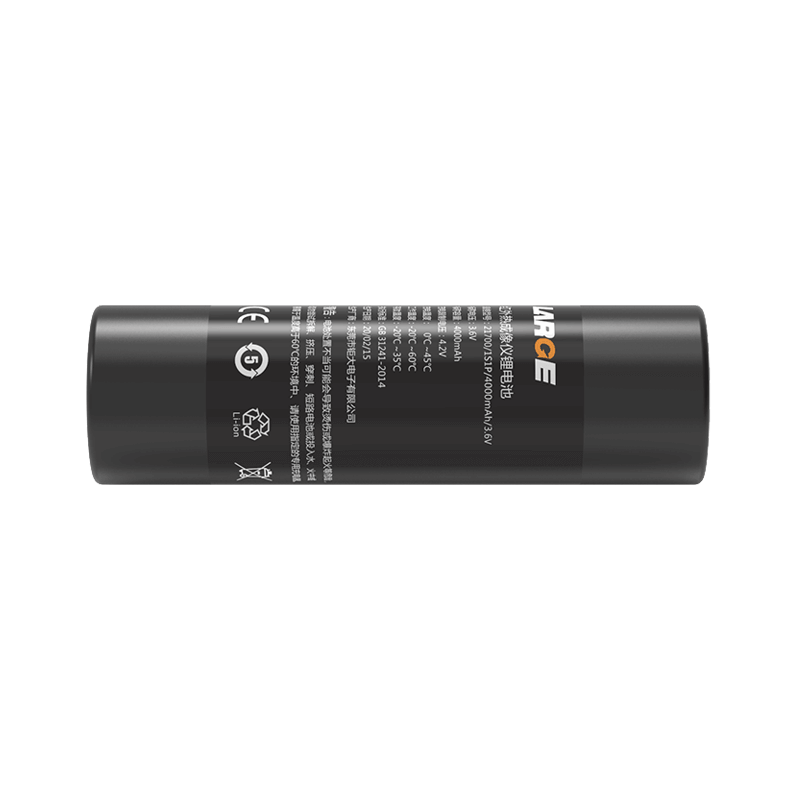

21700 3.6V 4000mAh Lithium-ion Battery for Infrared Thermal Imager

Product number: 36AQ517-10

Cell model: 21700-4000MAH-3.6V

Specification: 21700-1S1P/4000mAh/3.6V

Product size: 71.5*φ25mm (Max)

Nominal voltage: 3.6V

Nominal capacity: 4000mAh

Finished product internal resistance: ≤150mΩ

Charging voltage: 4.2V

Charging current: ≤5A

Discharge current: ≤5A

Discharge cut-off voltage: 2.5V

Battery weight: 80G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60℃

Storage temperature: -20 to 35°C

Battery case: blue PVC heat shrinkable film package

Output mode: Molex plug

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.

Application: Infrared thermal imaging equipment, portable infrared equipment
