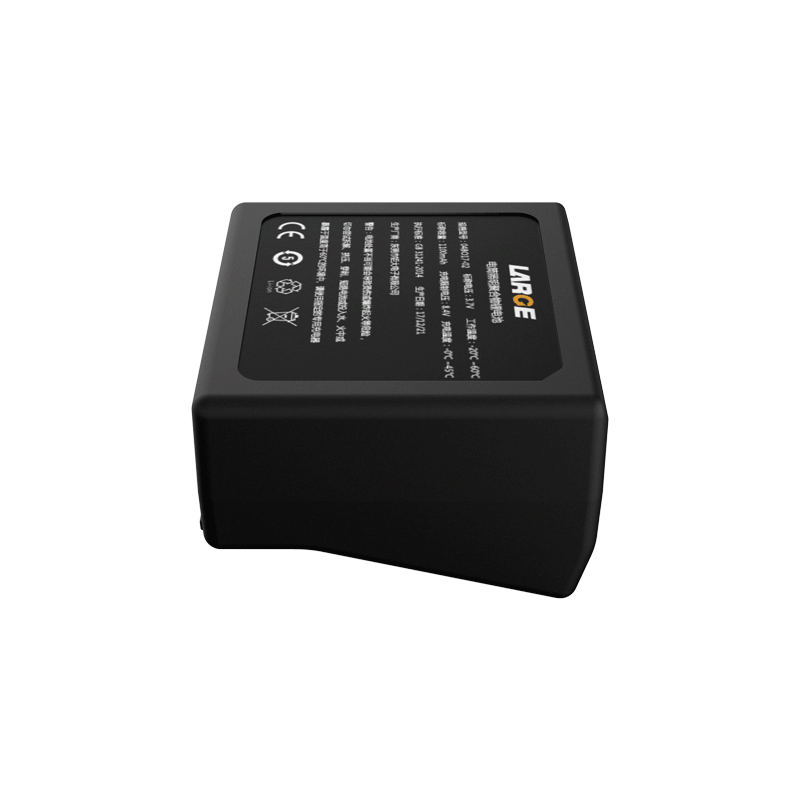

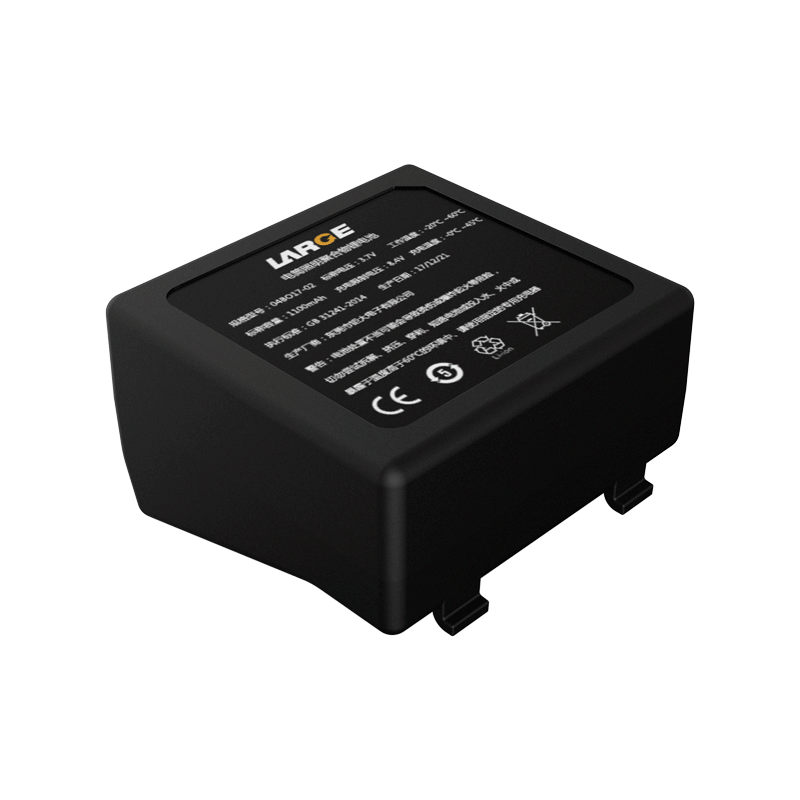

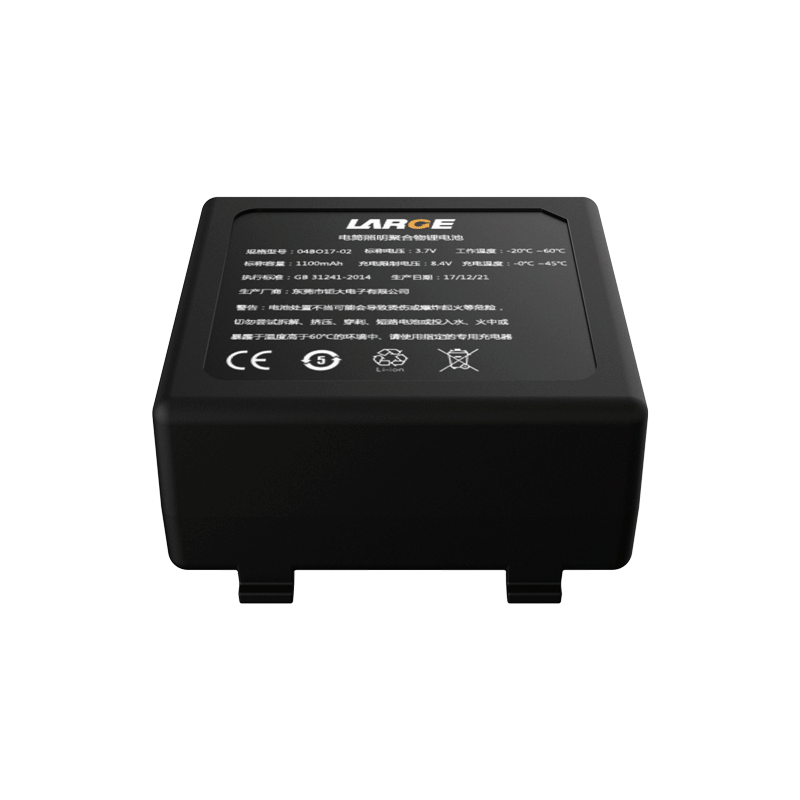

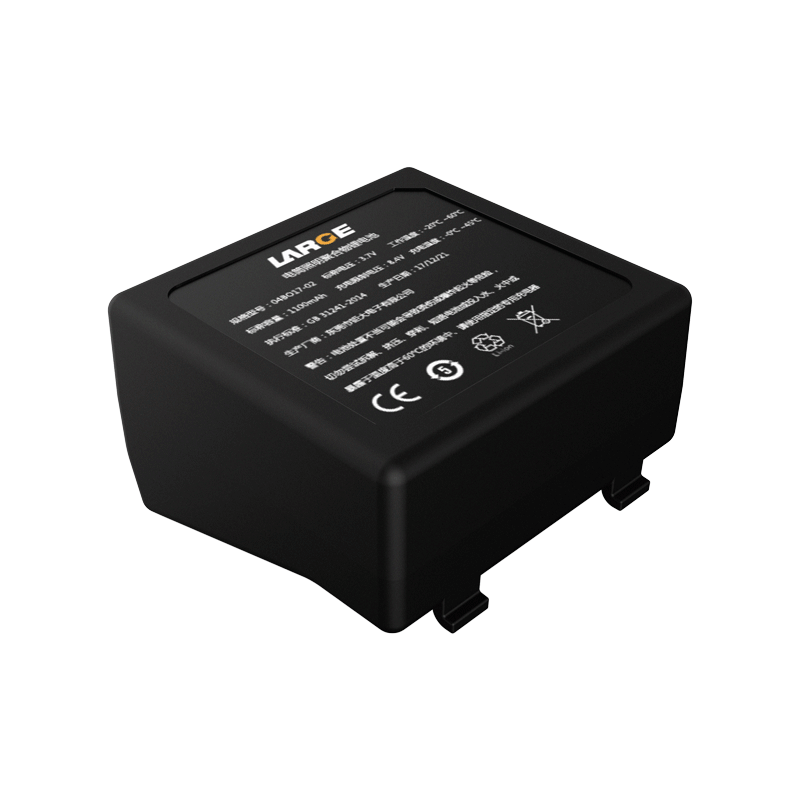

3.7V 1100mAh Lithium Polymer Battery for Flashlight

3.7V 1100mAh Lithium Polymer Battery for Flashlight
3.7V 1100mAh Lithium Polymer Battery for Flashlight
3.7V 1100mAh Lithium Polymer Battery for Flashlight
3.7V 1100mAh Lithium Polymer Battery for Flashlight

Product Detail

Product number: 04B017-02

Cell model:613030/550mAh/3.7V

Battery specification: 613030-2P/1100mAh/3.7V (plastic housing)

Nominal voltage:3.7V

Nominal capacity:1100mAh

Charging voltage: USB-5.0V/1A

Charging current: ≤1100mA

Discharging current: ≤1120mA

Instant discharging current: 3.6Afor1S

End-off voltage: 3.0V

Internal resistance: ≤150mΩ

Battery weight: about 45g

Product dimension: 34.80*33.88*21.15mm

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Battery case: plastic housing

Lithium ion battery protection: overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, equalization circuit, etc.

Application field: battery for flashlight


*
*
*
