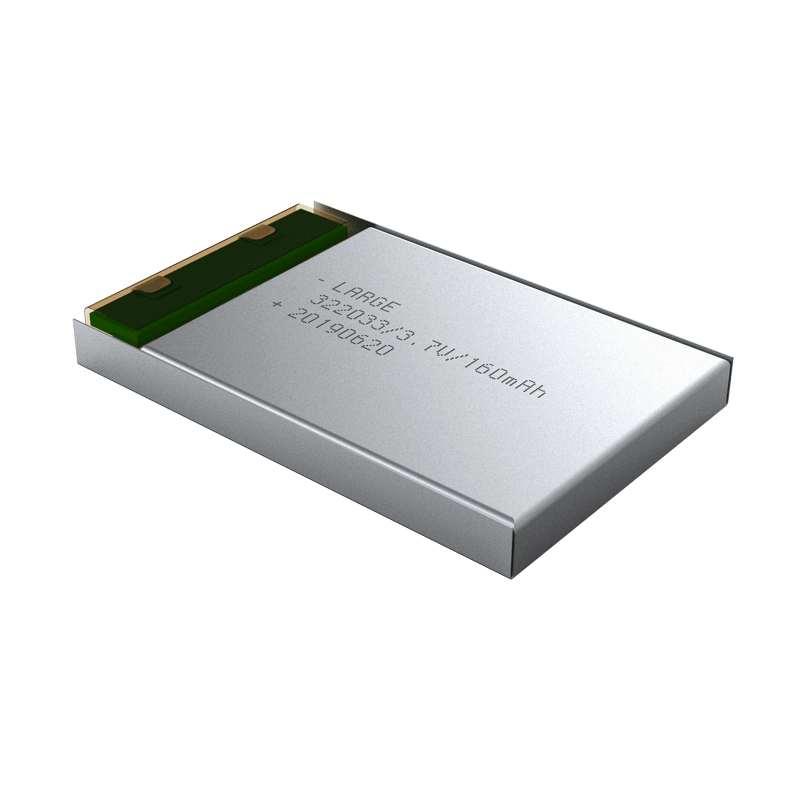

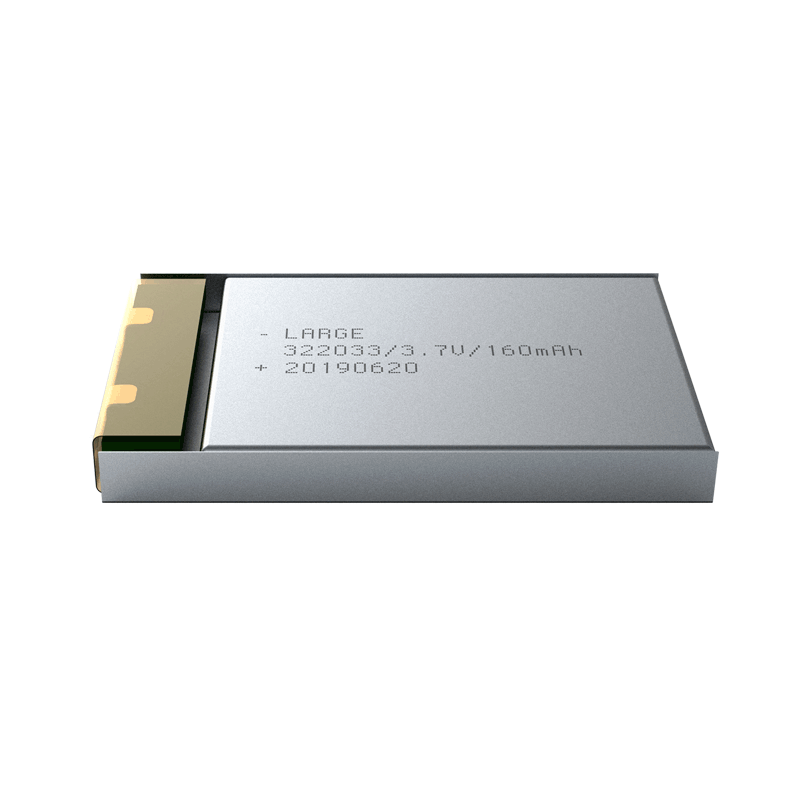

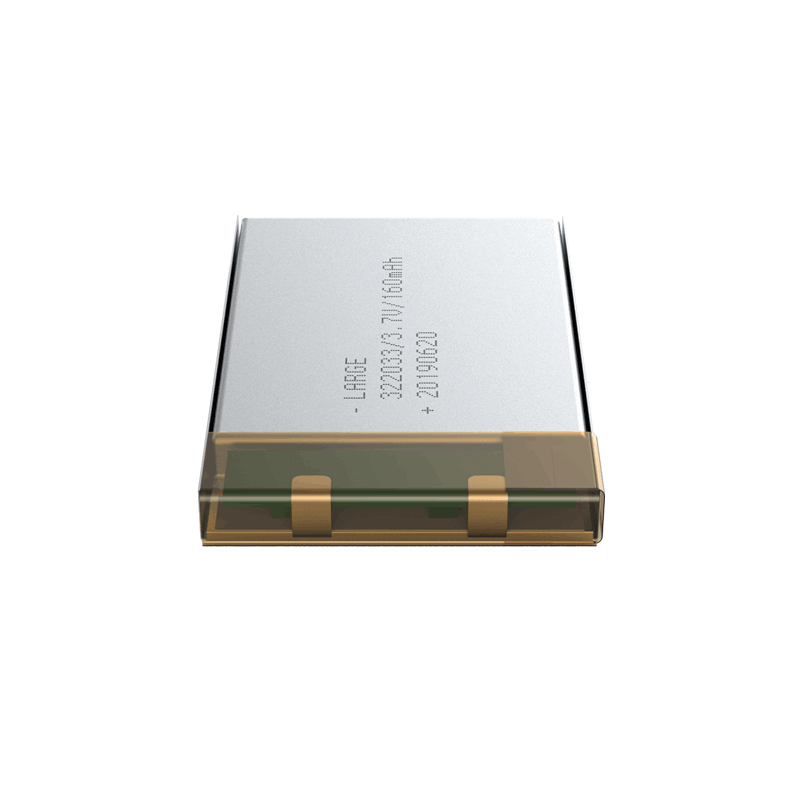

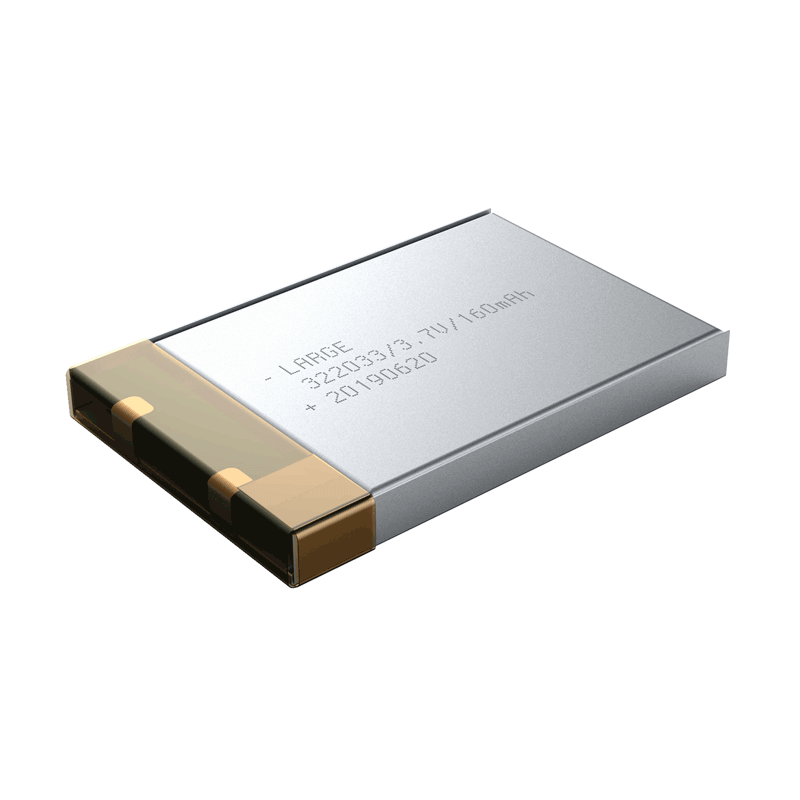

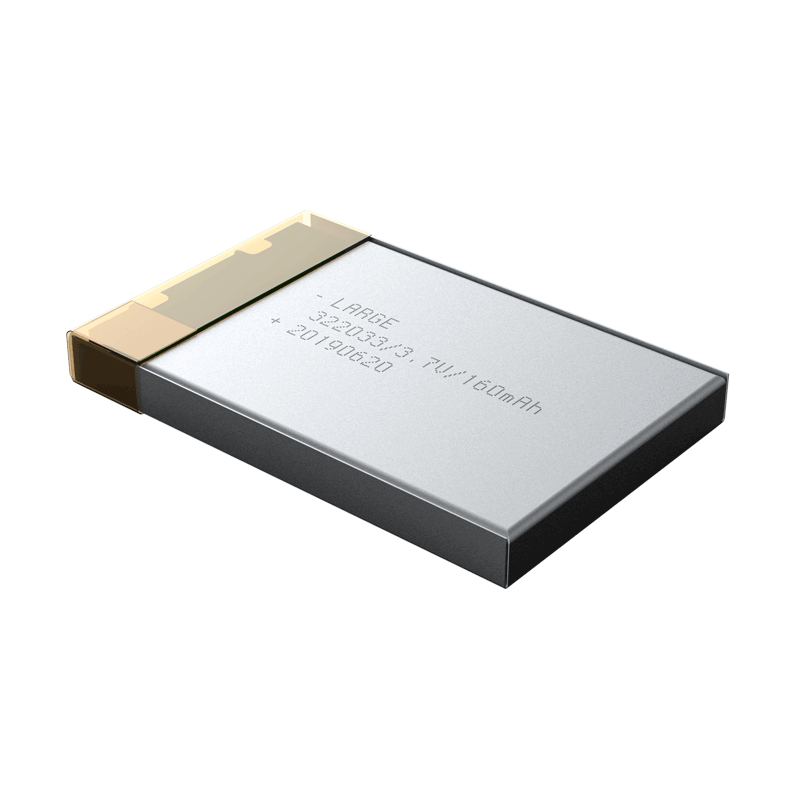

322033 3.7V 160mAh Lithium Polymer Battery for Pet Tracker

Product Detail

Product number: 00BQ0001-32T

Cell model:322033/3.7V/160mAh

Battery specification: 302033-1S1P/3.7V/160mAh

Nominal voltage:3.7V

Nominal capacity:160mAh

Charging voltage: 4.2V

Charging current: ≤0.15A

Discharging current: 0.06A

Instant discharging current: 0.16A

End-off voltage: 3V

Internal resistance: ≤320mΩ

Battery weight: 0.006Kg

Product dimension: 35*20.5*3.6mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: ordinary pouch cell

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

*
*
*
