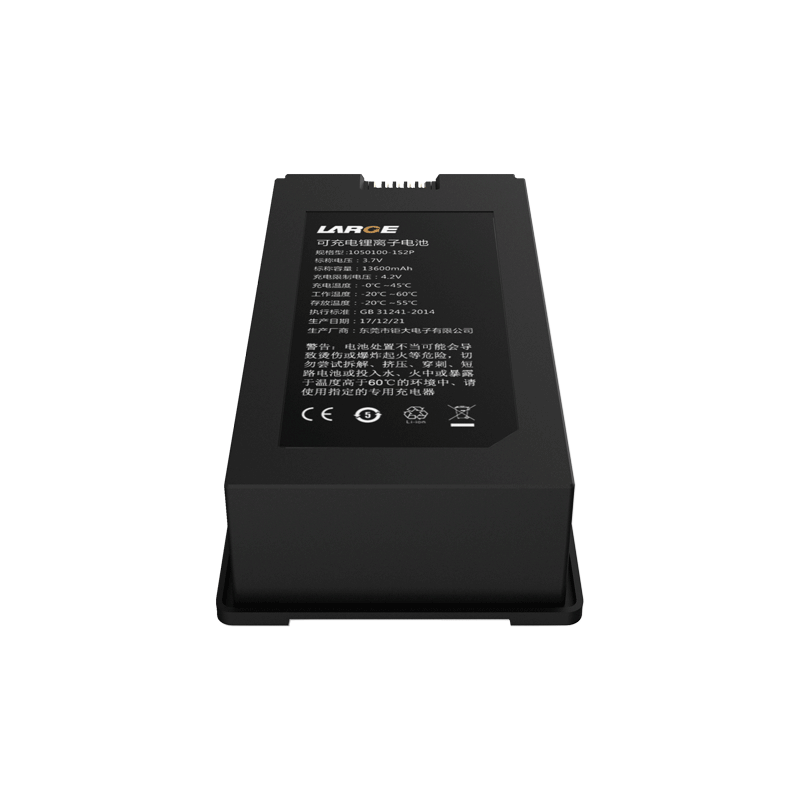

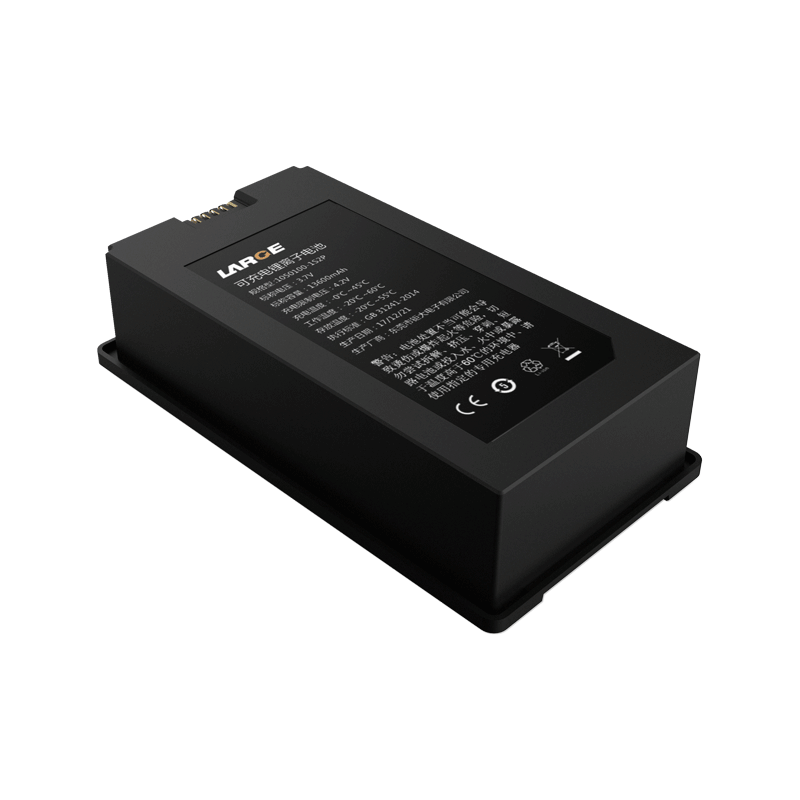

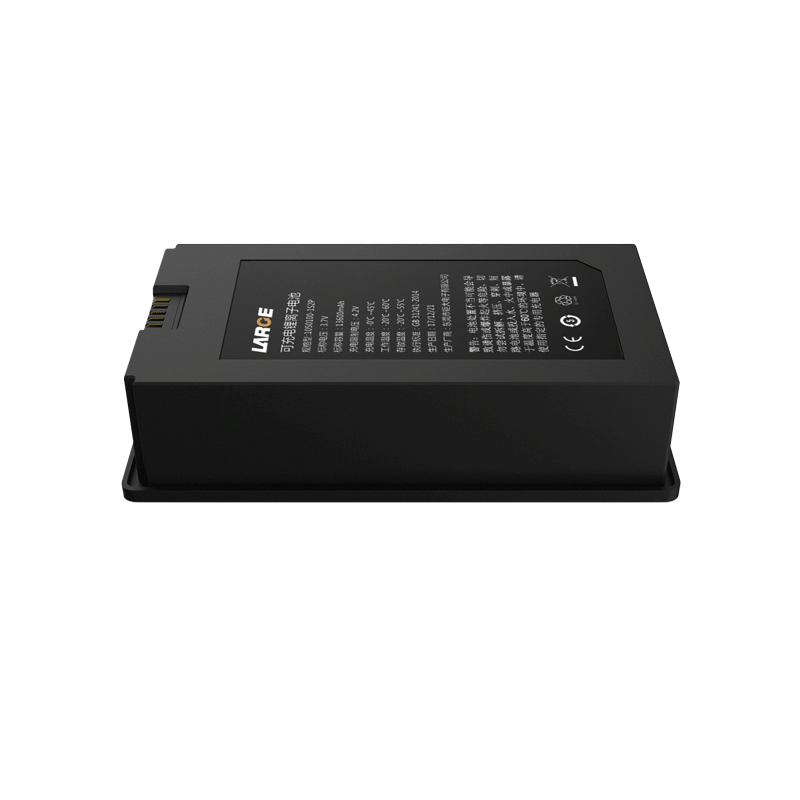

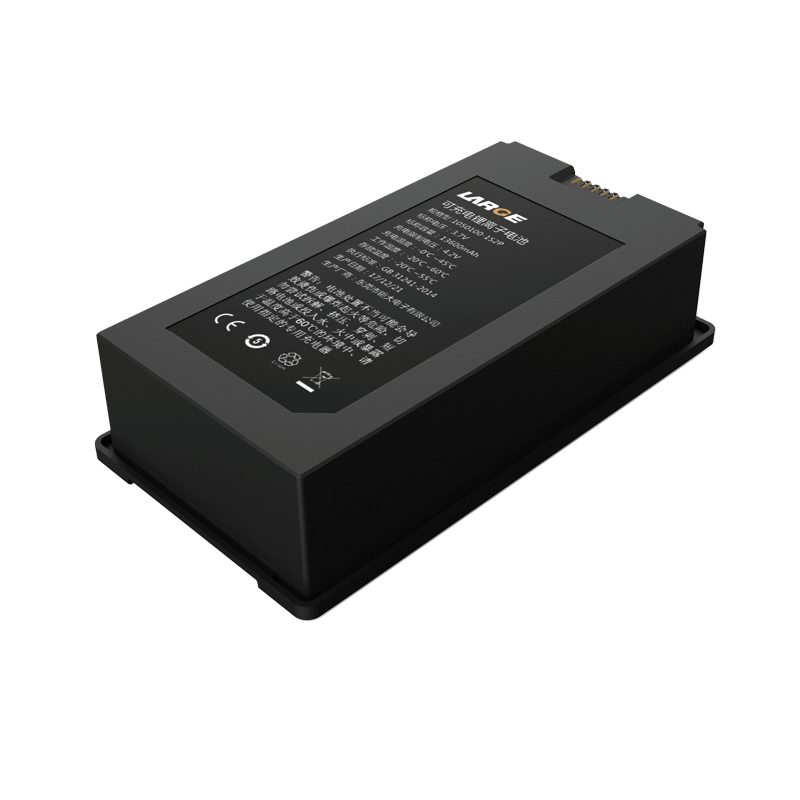

3.7V 13600mAh Polymer Lithium Ion Battery for Intelligent Lock

Product Detail

Product number: 06DQ037-01

Cell model:1050100/3.7V/6800mAh

Battery specification: 1050100-1S2P/3.7V/13600mAh

Nominal voltage:3.7V

Nominal capacity:13600mAh

Charging voltage: 4.2V

Charging current: ≤3A

Discharging current: 3A

Instant discharging current: 4.0A

End-off voltage: 3V

Internal resistance: ≤160mΩ

Battery weight: 0.4Kg

Product dimension: 116.2*62.7*28.7mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Battery case: holder+PVC

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: intelligent lock

*
*
*
