Custom Lithium Ion Battery Pack

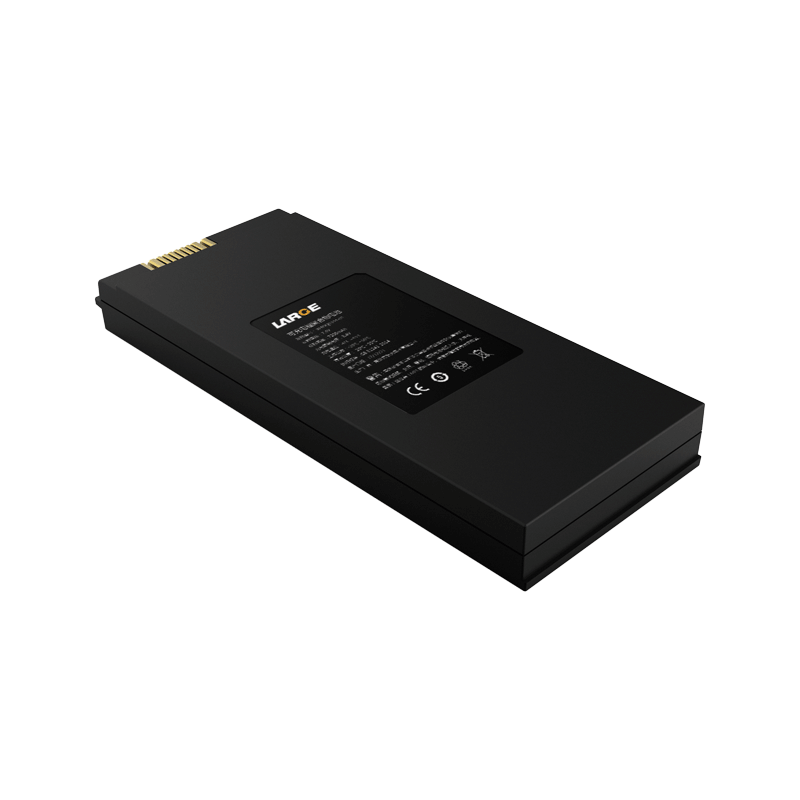

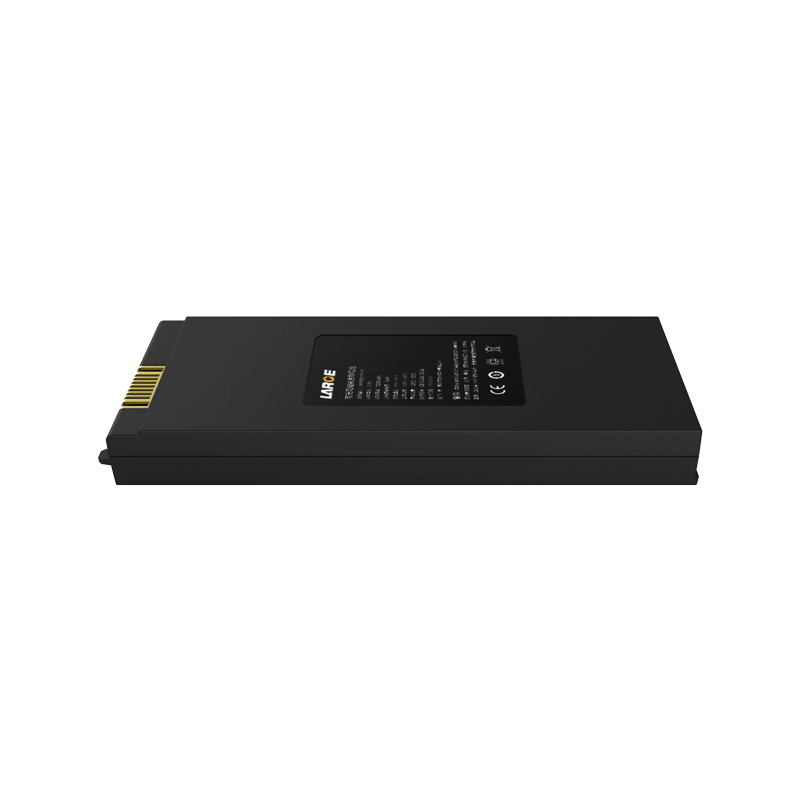

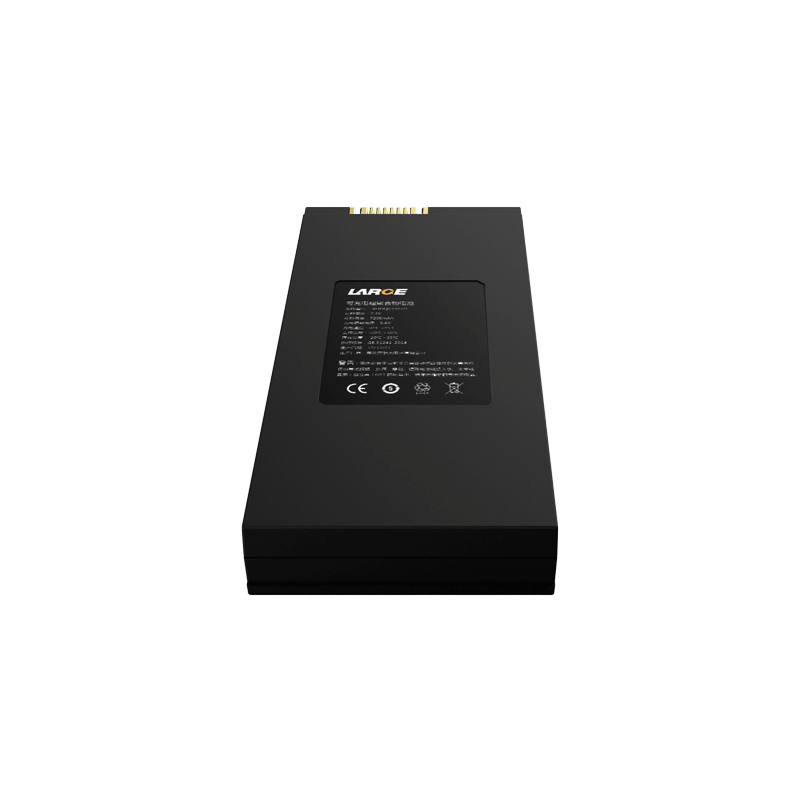

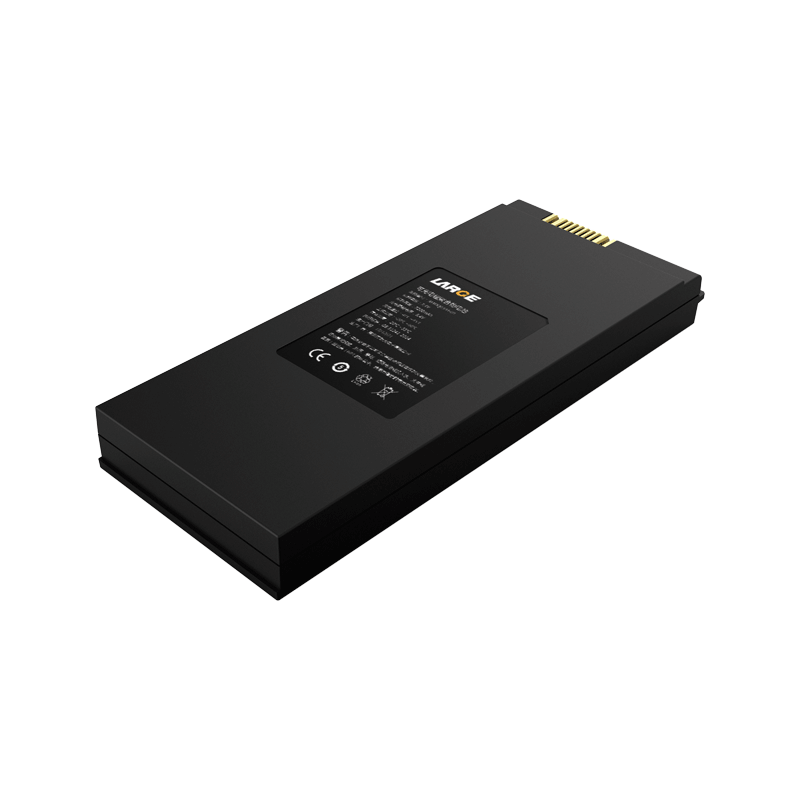

7.4V 7200mAh Lithium Polymer Battery for Slab Monitoring Equipment

  • Model number:04DQ0344-01

  • Nominal voltage:7.4V

  • Nominal capacity:7200mAh

  • Battery cell:3560118-3600mAh-3.7V

  • Dimension:(157.4*64.5*17.6)±0.2mm

  • Application:tablet monitor device

Product Detail

Product number: 04DQ0344-01

Cell model:3560118-3600mAh-3.7V

Battery specification: 3560118-2S2P-7200mAh-7.4V (plastic housing)

Nominal voltage:7.4V

Nominal capacity:7200mAh

Charging voltage: 8.4V

Charging current: ≤2500mA

Discharging current: ≤3000mA

Instant discharging current: 7.0Afor1S

End-off voltage: 6.0V

Internal resistance: ≤180mΩ

Battery weight: about 280g

Product dimension: (157.4*64.5*17.6)±0.2mm

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35 ℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, temperature protection, low voltage alarm, etc.

Application field: tablet monitor device


Product features

1. Data communication management SMBUS: adopt TI software management chip, and monitor the temperature, voltage, capacity, percentage of the battery pack by IC.

2. The host machine transfers the data by SMBUS communication, which can read the battery information and improve the security.

3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
