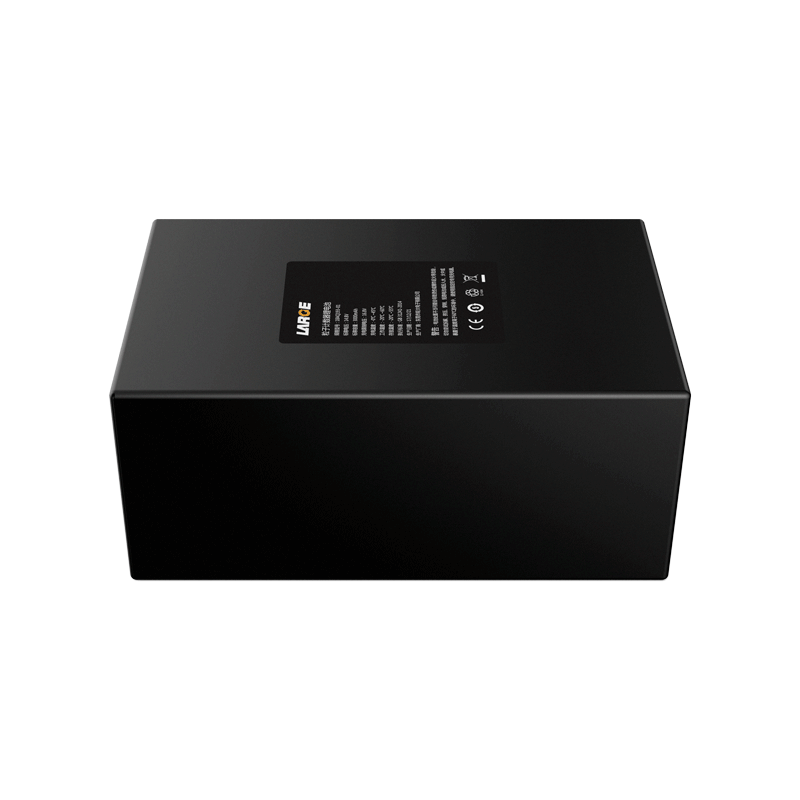

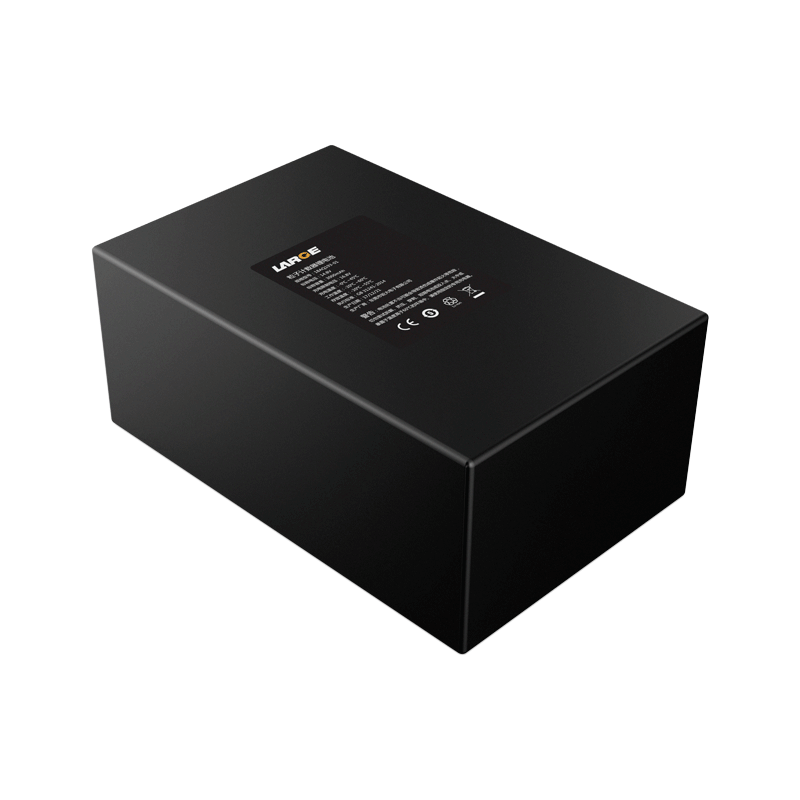

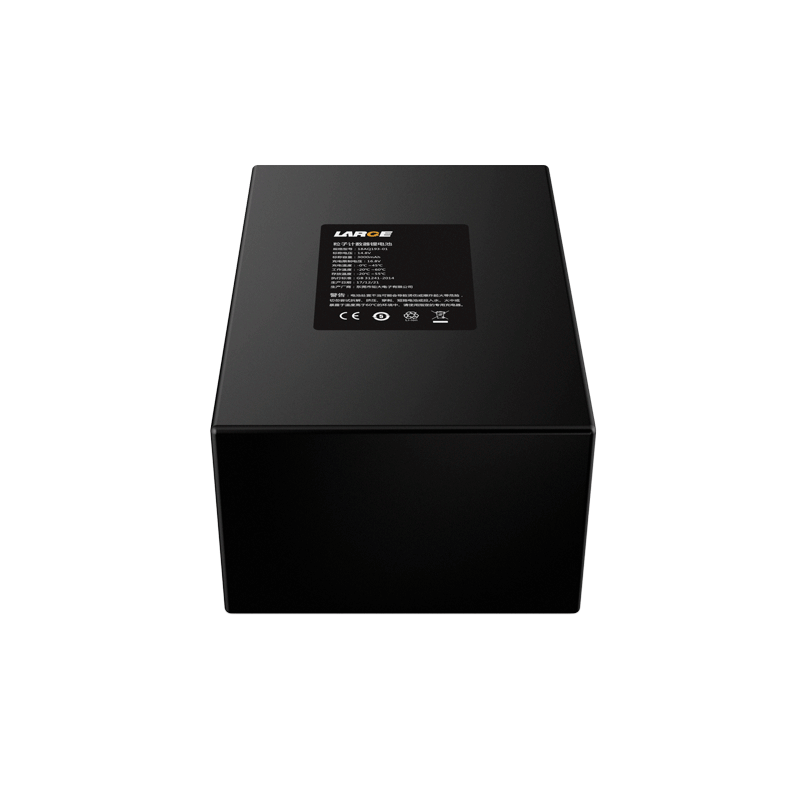

18500 14.8V 3000mAh LCO Battery for Particle Counter

Combination mode: ICR18500-4S2P

Nominal voltage: 14.8V

Output voltage range: 10~ 16.8V

Nominal capacity: 3000mAh

Standard continuous discharge current: 0.2C

Maximum continuous discharge current: 1C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Product dimension: MAX 35*54*83mm

Finished product internal resistance: 250 mΩ or less

Lead model: National standard UL1007/18#, 150mm in length

Protection parameters:

Overcharge protection voltage / 4.25±0.025V per series

Overdischarge protection voltage 2.5±0.08V

Overcurrent value: 4~8A

Our company can design personalized and diversified 18500 battery packs according to customers' specific products, including the parameters of battery voltage/capacity/size/protective board and so on.
