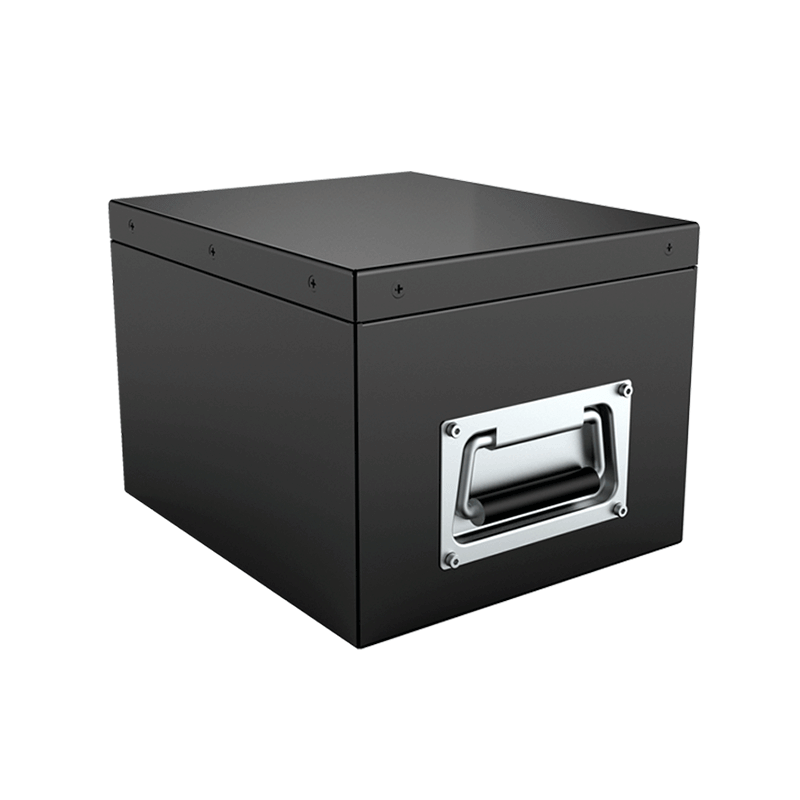

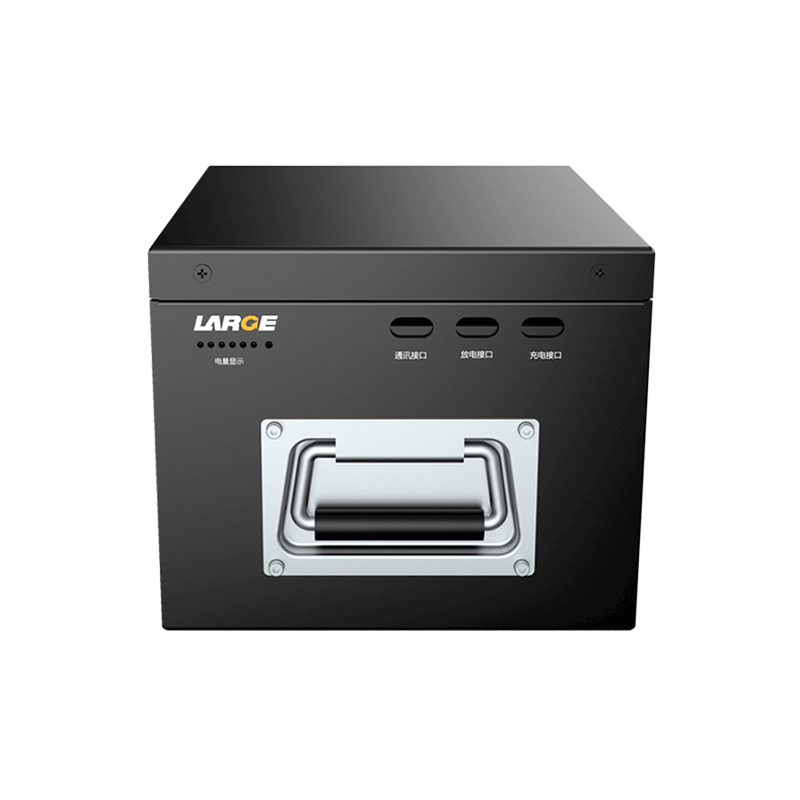

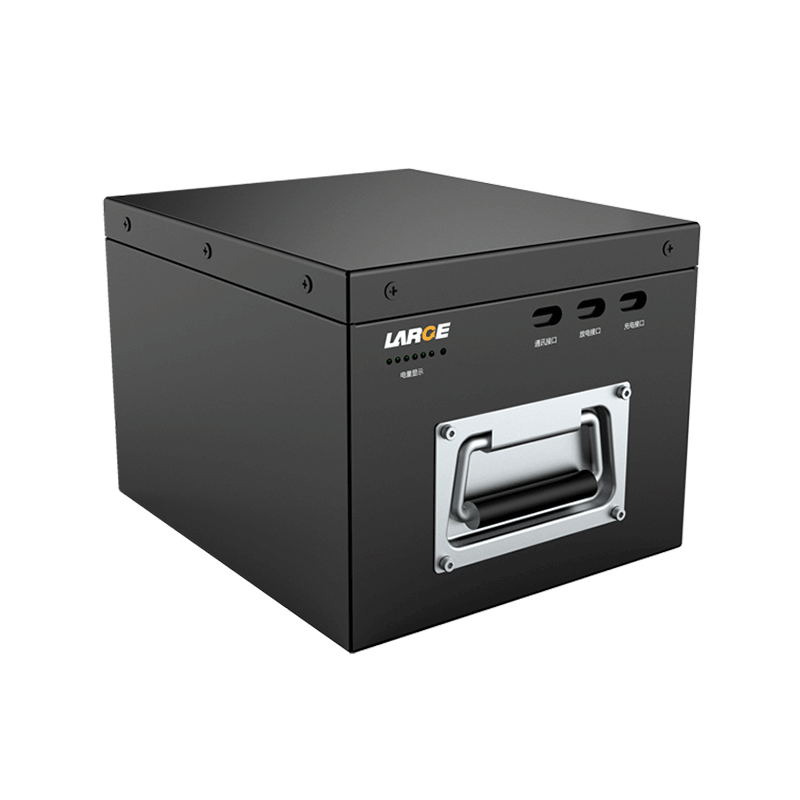

LiFePO4 battery 25.6V 60Ah for AGV with RS485 Communication Port

Product Detail

Product number: 15AQ001-01

Cell model:2770145/3.2V/20Ah

Battery specification: 2770145/8S3P/25.6V/60Ah

Nominal voltage:25.6V

Nominal capacity:60Ah

Charging voltage: 29.2V

Charging current: ≤20A

Discharging current: 20A

Instant discharging current: 50A

End-off voltage: 20V

Internal resistance: ≤200m?

Battery weight: 15kg

Product dimension: 270×230×190(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55 ℃

Storage temperature: -20~40 ℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.

Application field: robot, AGV, RGV


Product features

1. Capacity display: show the battery status and capacity directly by LED.

2. Shock-resistant and dustproof: fill in the shock-resistant structure inside with cold rolling metal plate on which spray the powder to satisfy the requirements of shock-resistant and dustproof.

3. Communication interface: have RS485 communication protocol and can read the information of battery voltage, current, temperature, capacity, etc.

4. Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

5. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

6. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
