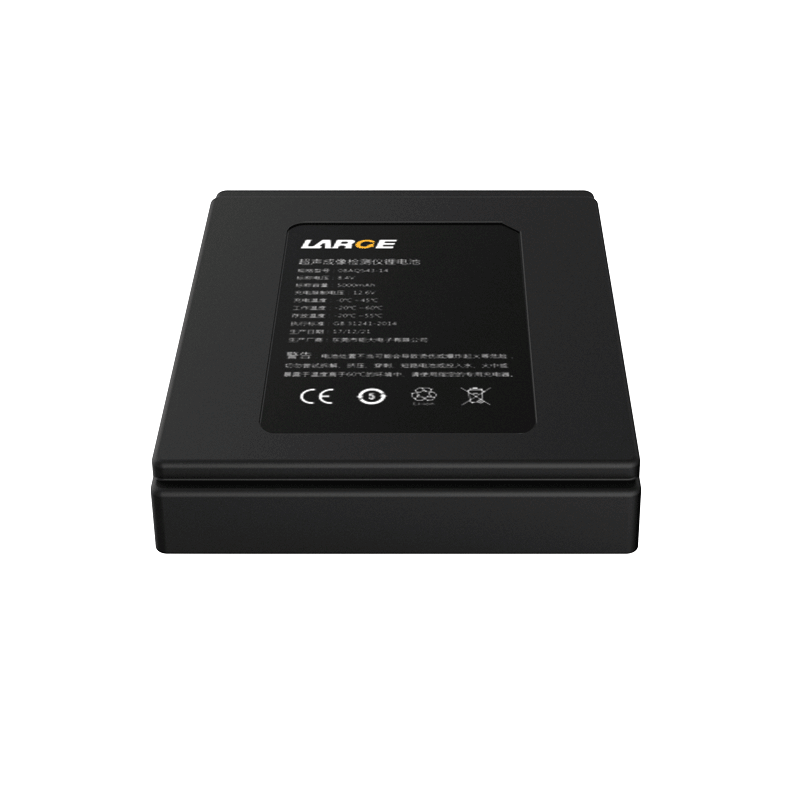

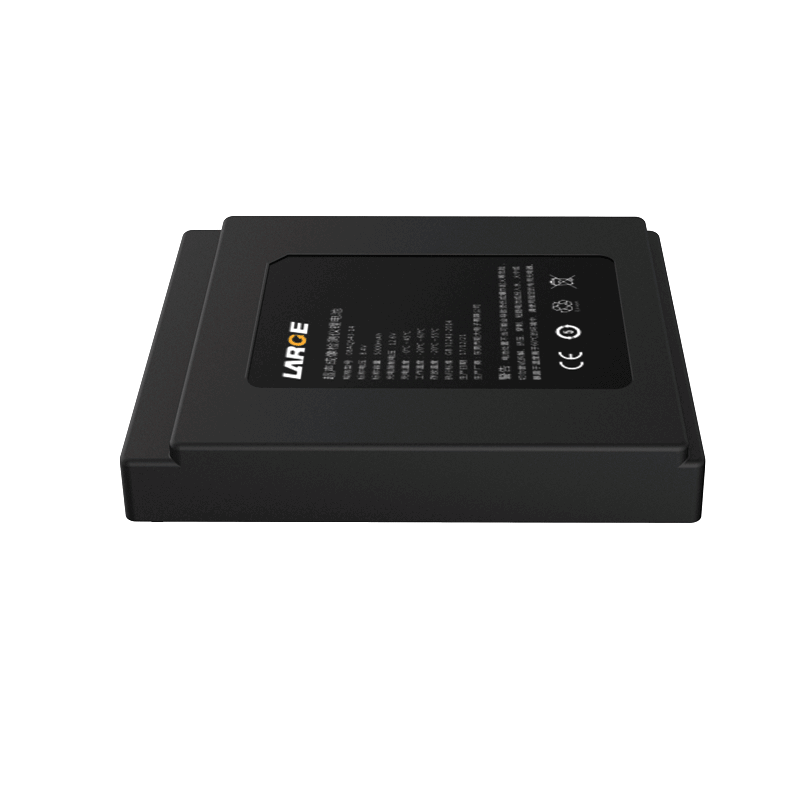

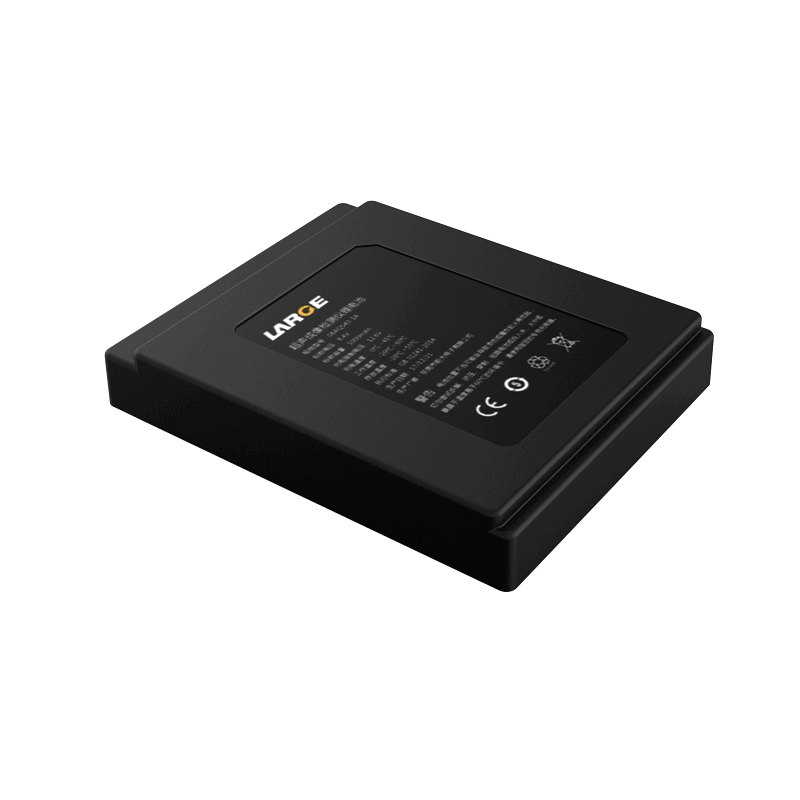

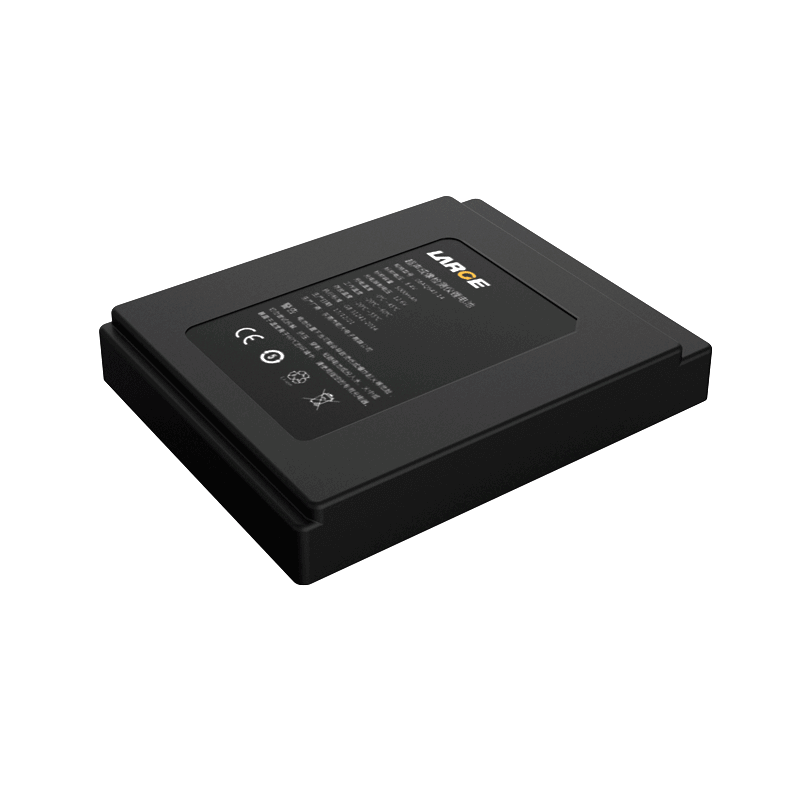

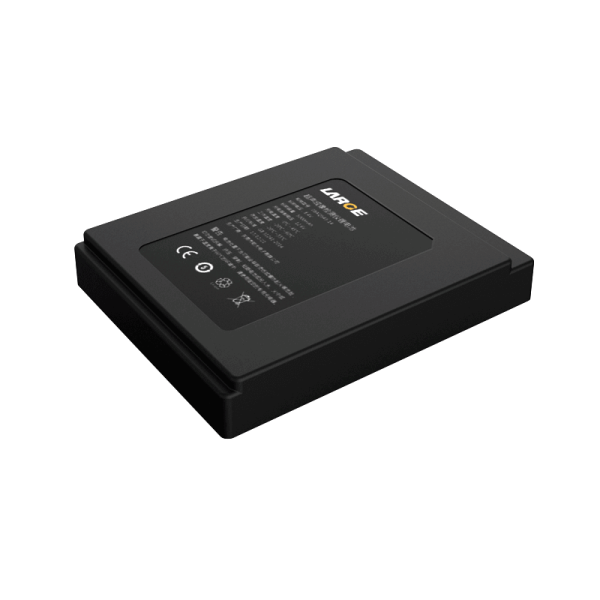

7.4V 5000mAh 18650 Lithium Ion Battery SANYO Battery for Ultrasonic Imaging Detector

Product number: 08AQ543-14

Cell model：18650-2500mAh-3.7V

Battery specification: 18650-2S2P-5000mAh-7.4V

Nominal voltage：8.4V

Nominal capacity：5000mAh

Charging voltage: 8.4V

Charging current: ≤2A

Discharging current: 1A

Instant discharging current: 5A

End-off voltage: 6.0V

Internal resistance: ≤250mΩ

Battery weight: 700g

Product dimension: 21*78*88mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～35 ℃

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: portable ultrasonic facilities, portable medical devices
