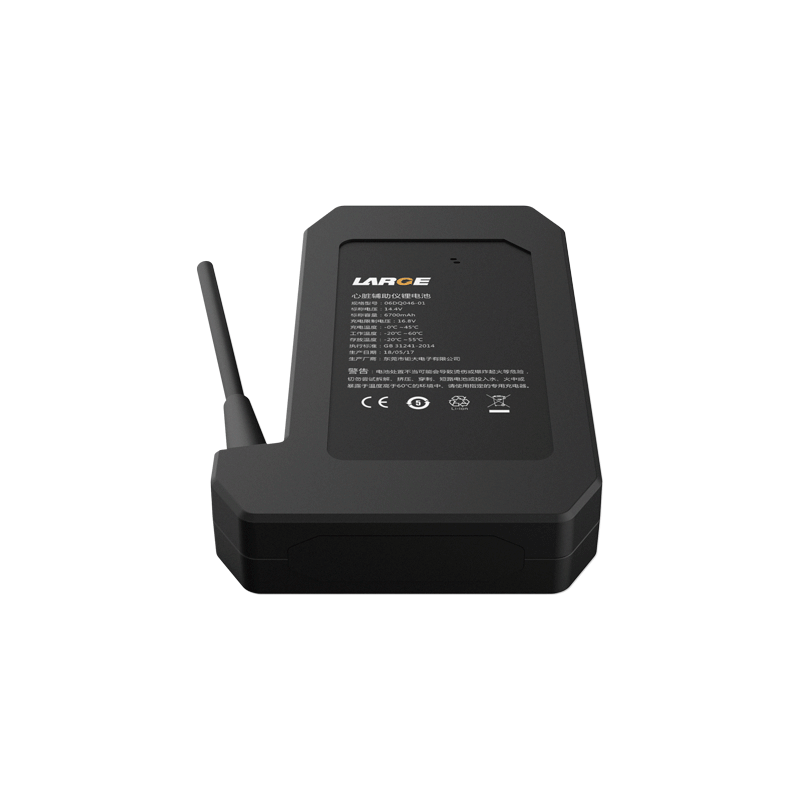

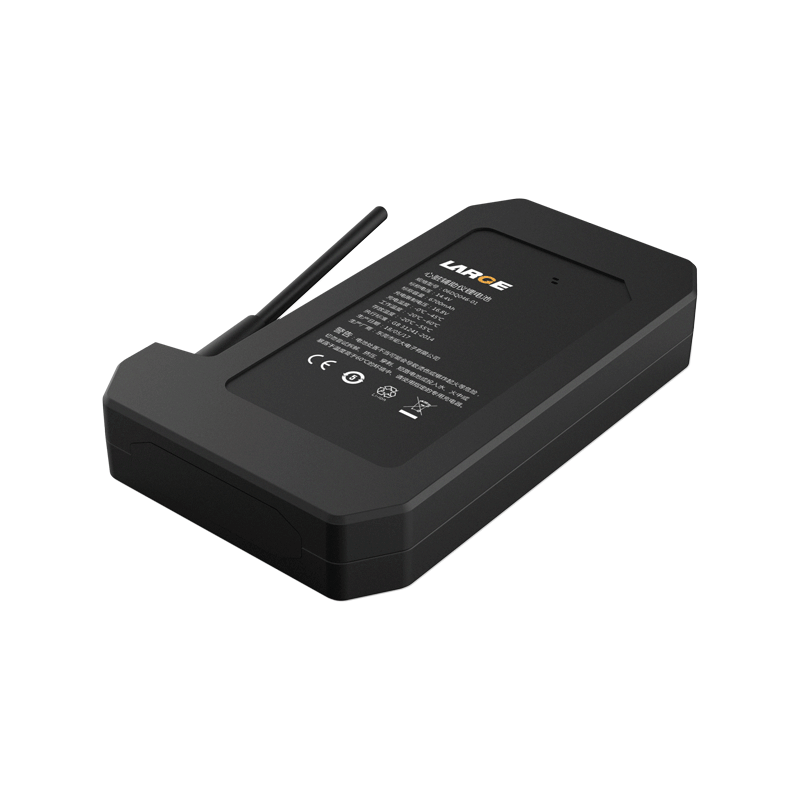

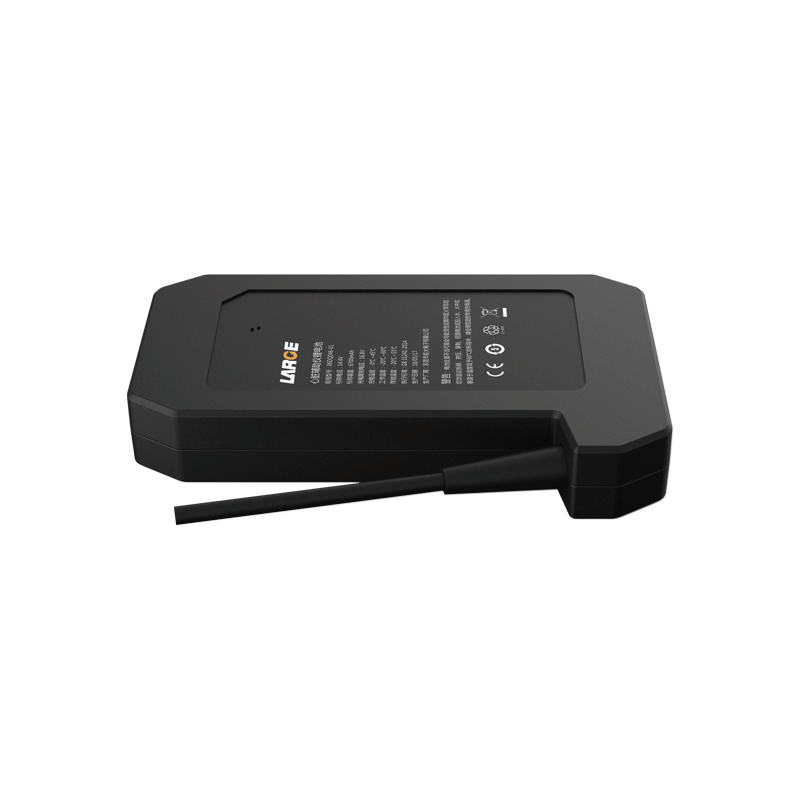

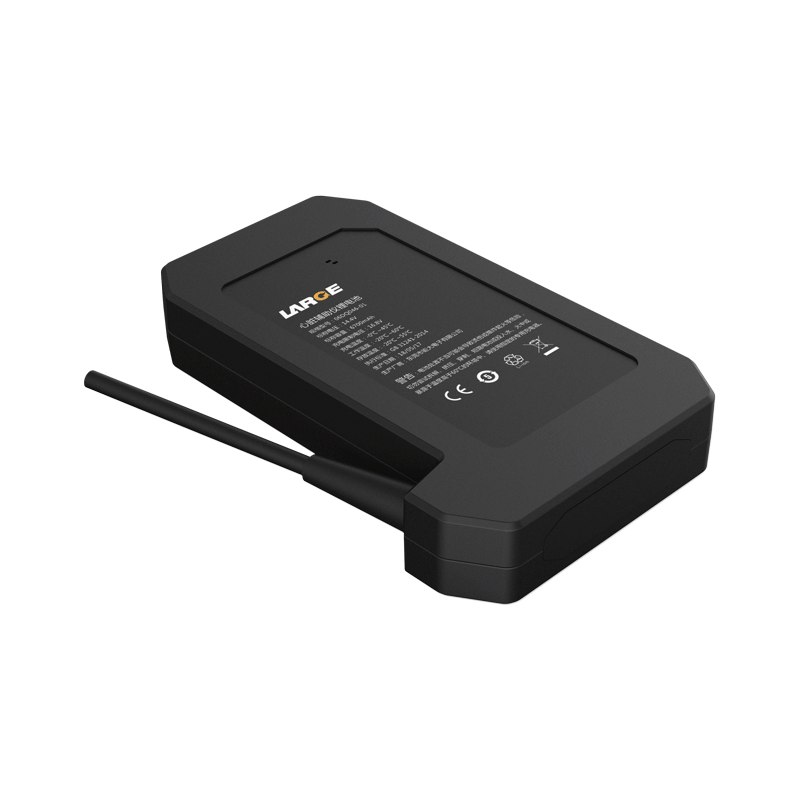

14.4V 6700mAh 18650 Lithium Battery Samsung Battery for Medical Devices

Product Detail

14.4V 6700mAh 18650 Lithium Battery Samsung Battery for Medical Devices

Product number: 06DQ046-01

Cell model:18650/3.6V/3350mAh

Battery specification: 18650-4S2P/14.4V/6700mAh

Nominal voltage:14.4V

Nominal capacity:6700mAh

Charging voltage: 16.8V

Charging current: ≤4A

Discharging current: 4A

Instant discharging current: 5A

End-off voltage: 10.8V

Internal resistance: ≤200mΩ

Battery weight: 0.5Kg

Product dimension: 163.5*84.5*27.1mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Temperature protection: 65℃±5℃

Battery case: ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: portable devices


Product features

· 1. Data communication management: adopt TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

· 2. The battery pack has good security, nice performance and long cycle life.

· 3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
