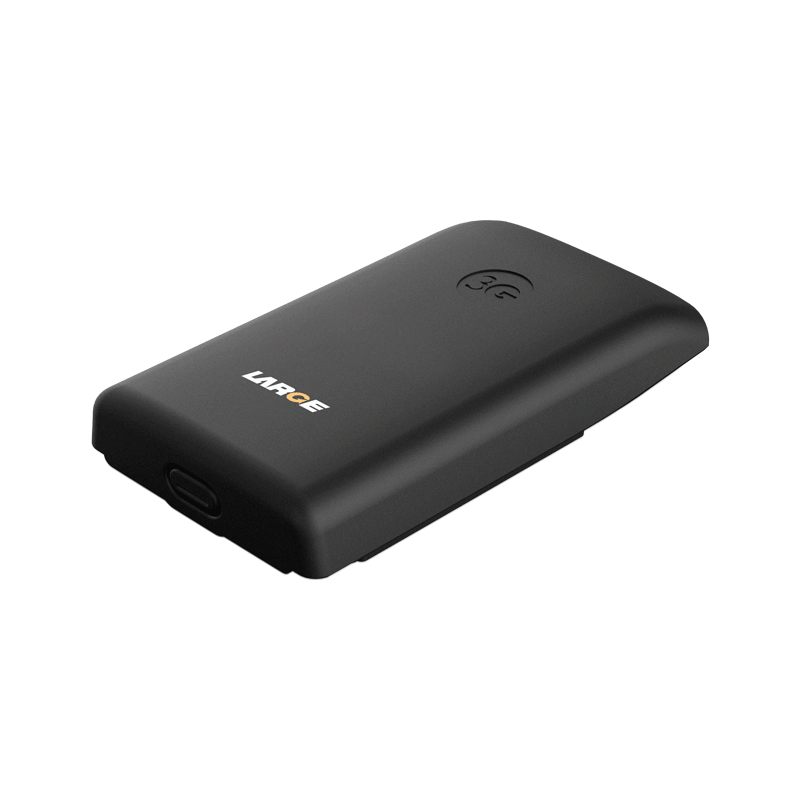

3.7V 2300mAh Lithium Ion Battery for Interphone

Product Detail

Product number: 03EQ003-01

Cell model:553450/3.7V/1150mAh

Battery specification: 553450-1S2P/3.7V/2300mAh

Nominal voltage:3.7V

Nominal capacity:2300mAh

Charging voltage: 4.2V

Charging current: ≤2.3A

Discharging current: 0.46A

Instant discharging current:  2.3A

End-off voltage: 2.75V

Internal resistance: ≤150mΩ

Battery weight: 80g

Product dimension: 14.7*46*77.9mm(Max)

Charging temperature:-20~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~35 ℃

Temperature protection:/

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: interphone

*
*
*
