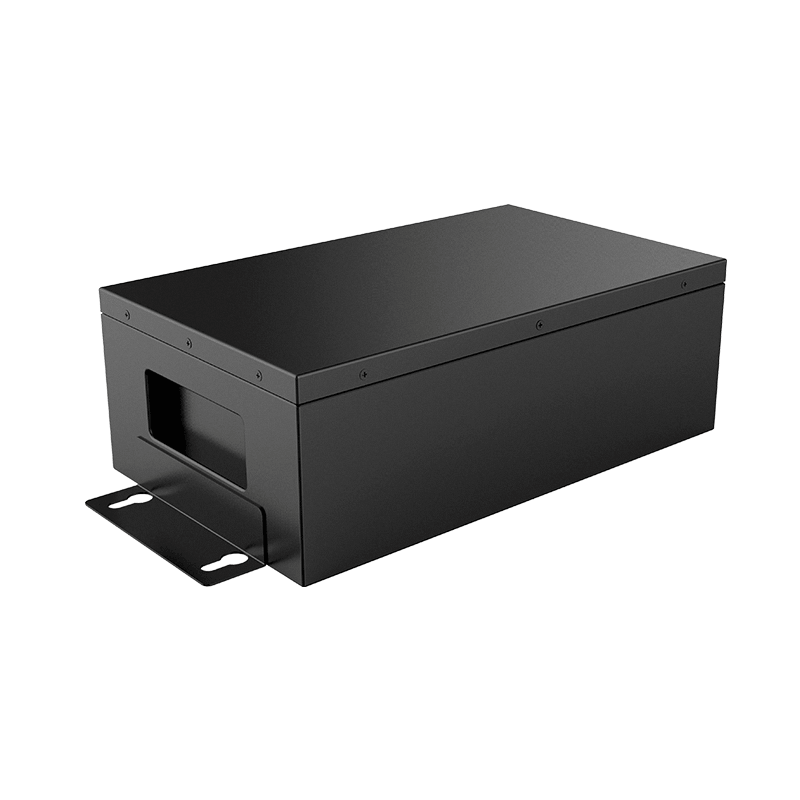

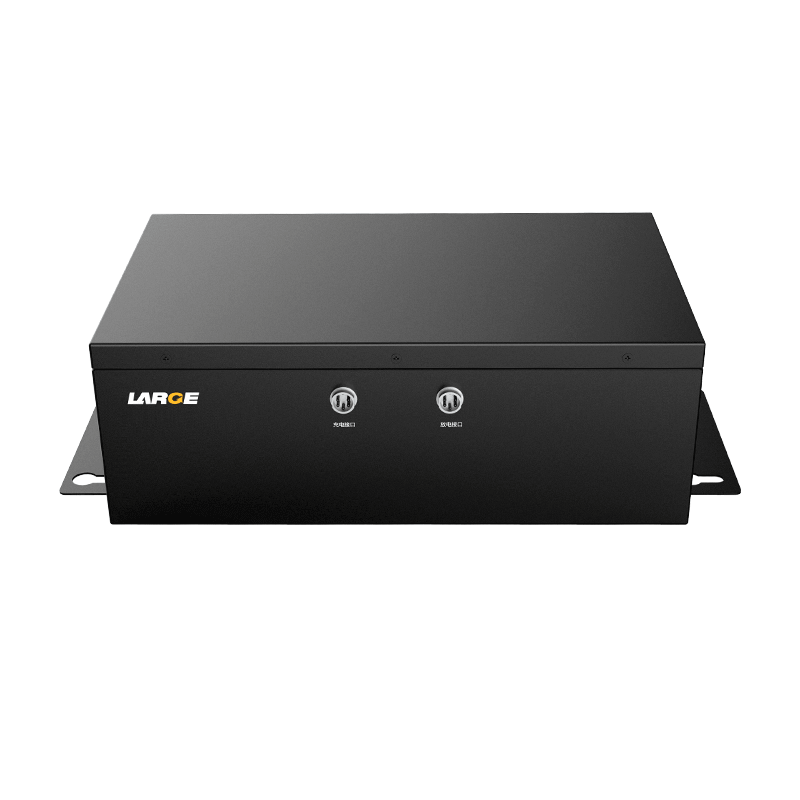

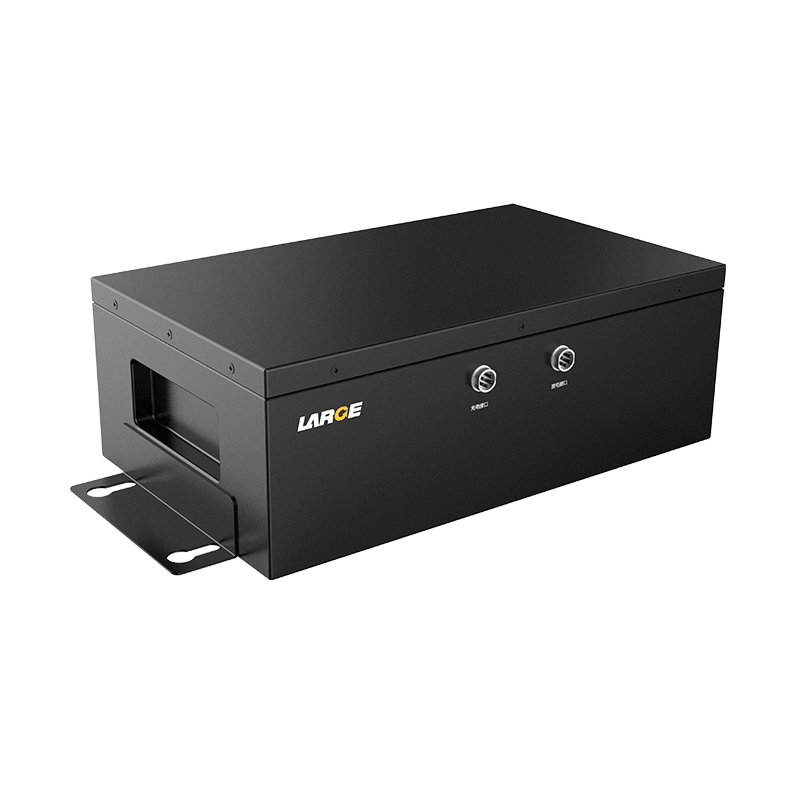

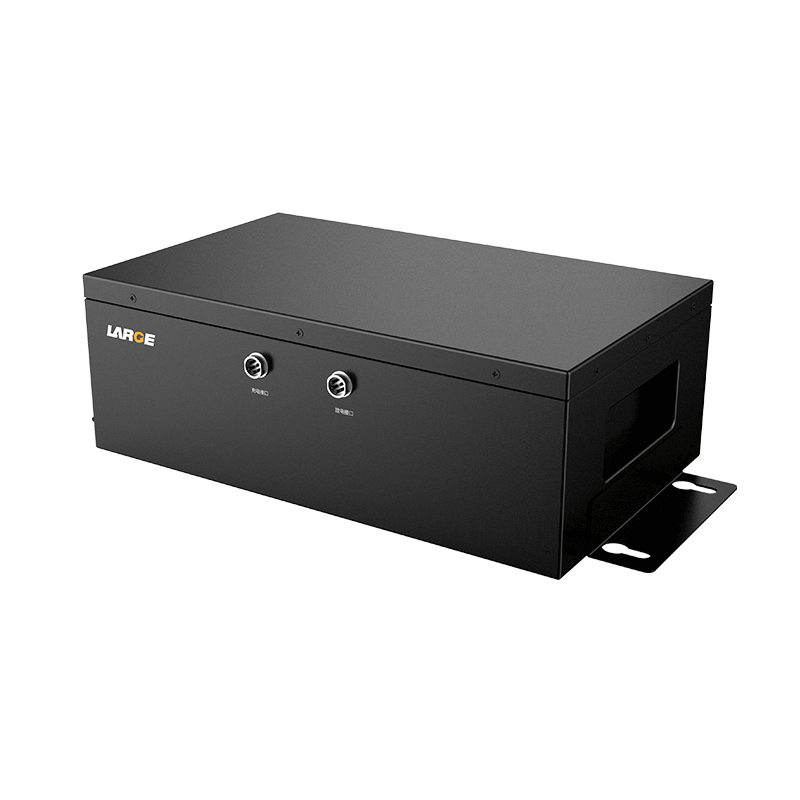

18650 25.2V 87Ah Lithium Ion Battery LG Battery for Industrial Equipment with RS232 AND RS485 Communication

Product Detail

Product number: 30AQ050-01

Cell model:18650/2600mAh/3.6V

Battery specification: 18650-7S34P/25.2V/87Ah

Nominal voltage:25.2V

Nominal capacity:87Ah

Charging voltage: 29.4V

Charging current: ≤20A

Discharging current: 20A

Instant discharging current: 20A

End-off voltage: 20A

Internal resistance: ≤200mΩ

Battery weight: 13Kg

Product dimension: L400*W240*H141.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55℃

Storage temperature: -20~45℃

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, RS485 communication, etc.

Application field: industrial equipment


Product features

1. Current: the maximum continuous discharging current is 20A.

2. Data communication management: adopt imported software management chip, 485 communicating function, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

3. Battery feature: adopt imported LG stable cell, which is super reliable and super safe.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
