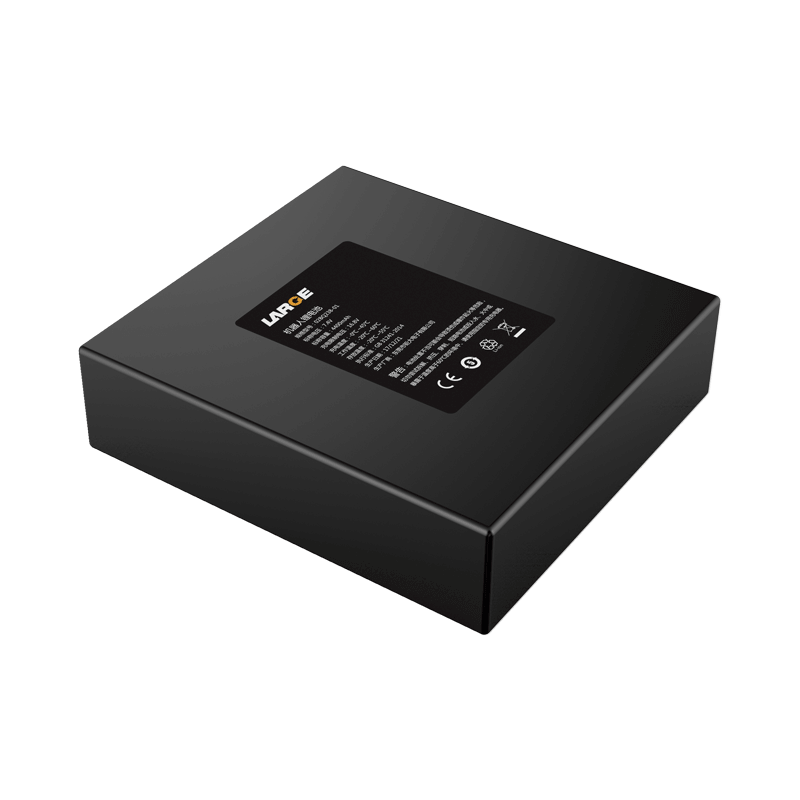

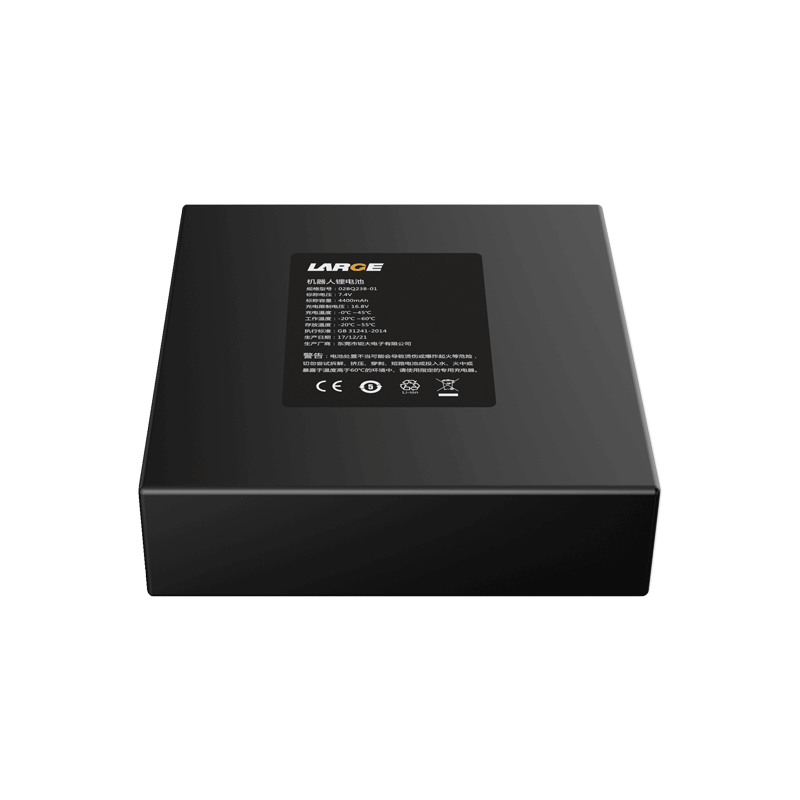

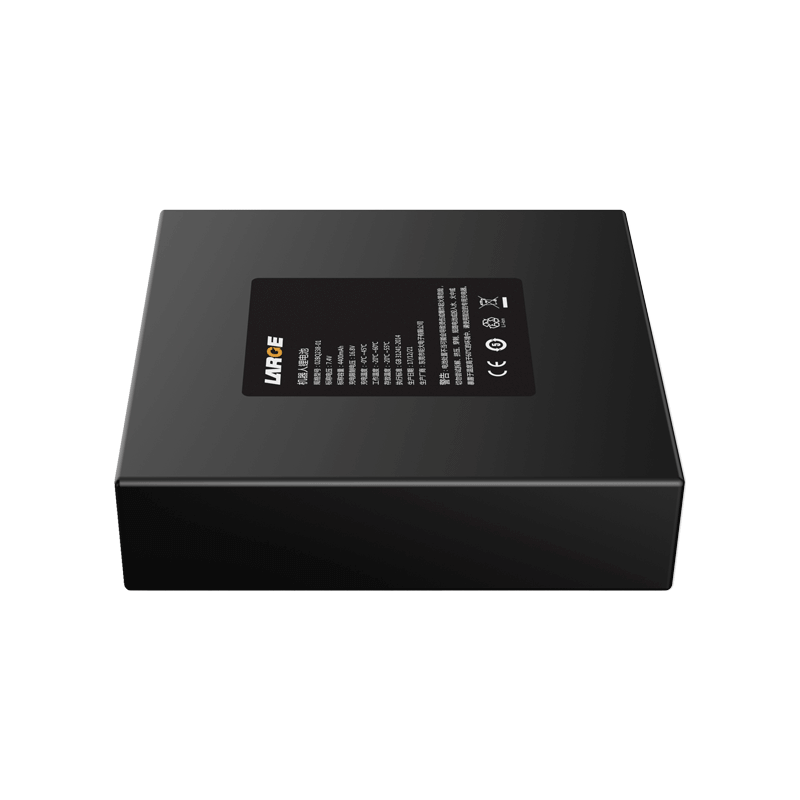

Custom Lithium ion Battery Pack

18650 7.4V 4400mAh Ternary Battery for Robot

Product Detail

Product number: 02BQ238-01

Combination mode: ICR18650-2S2P

Nominal voltage: 7.4V

Nominal capacity: 4400mAh

Standard continuous discharge current: 0.2C

Maximum continuous discharge current: 1C

Operating temperature: Charging: 0~45℃

Discharge: - 20 ~ 60 ℃

Product dimension: MAX 19.5*69.2*74.3mm

Finished product internal resistance: 180 mΩ or less

Standard weight:

Lead model: UL1007/18#, 50mm in length

*
*
*
