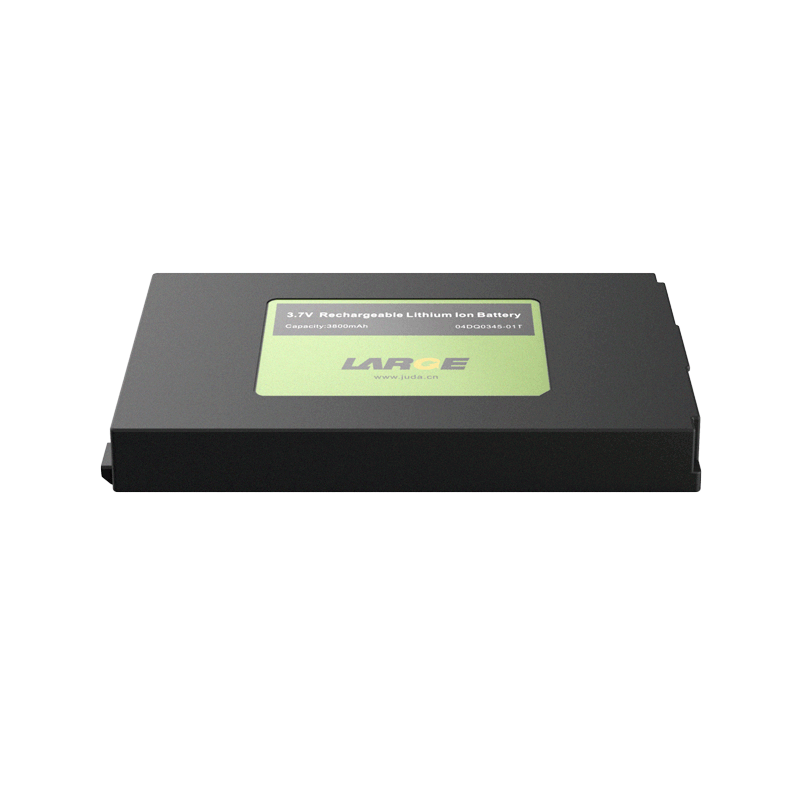

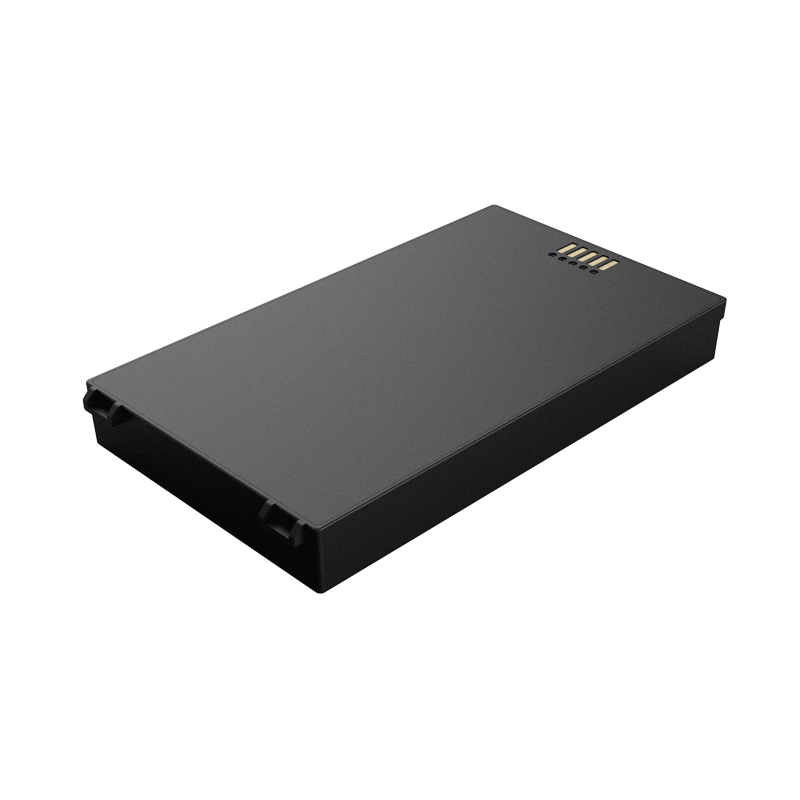

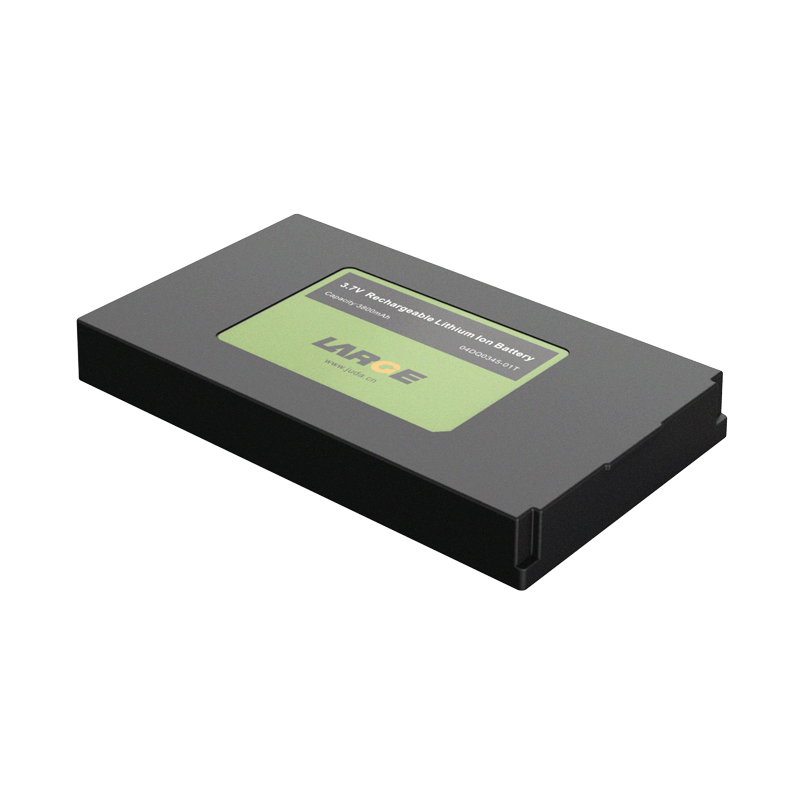

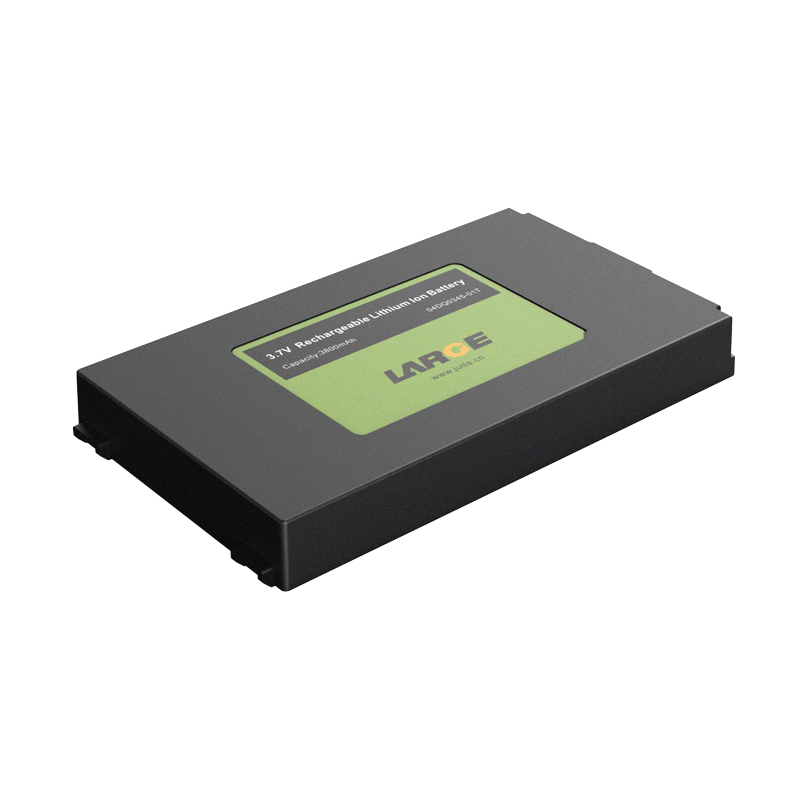

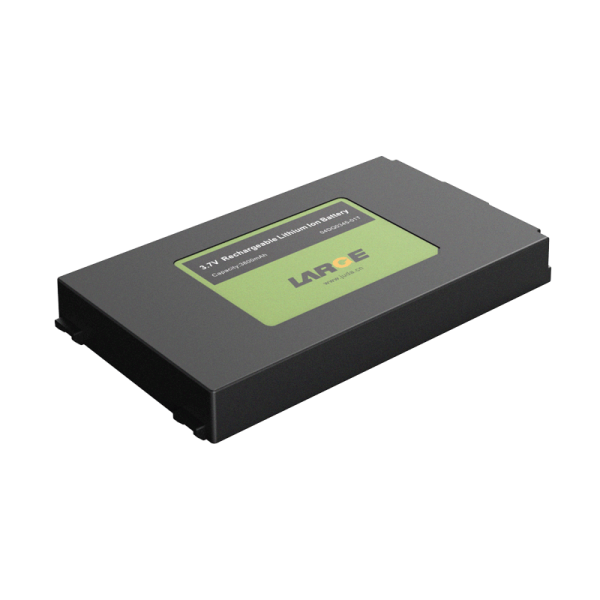

3.7V 3800mAh Low Temperature Polymer Battery for Mobile Terminal

Product Detail

Product number: 04DQ0345-01T

Cell model:855085/3800mAh/3.7V low temperature battery

Battery specification: 855085/3800mAh/3.7V low temperature battery

Nominal voltage:3.7V

Nominal capacity:3800mAh

Charging voltage: 4.2V

Charging current: 760mA

Discharging current: 760mA

Instant discharging current: 2500mA

End-off voltage: 2.5V

Internal resistance: ≤180mΩ

Battery weight: 100g

Product dimension: 99.0*57.0*12.0mm(Max)

Charging temperature:0~45℃

Discharging temperature: -40~55 ℃

Storage temperature: -10~35 ℃

Battery case: ABS AF312C

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: industrial device


*
*
*
