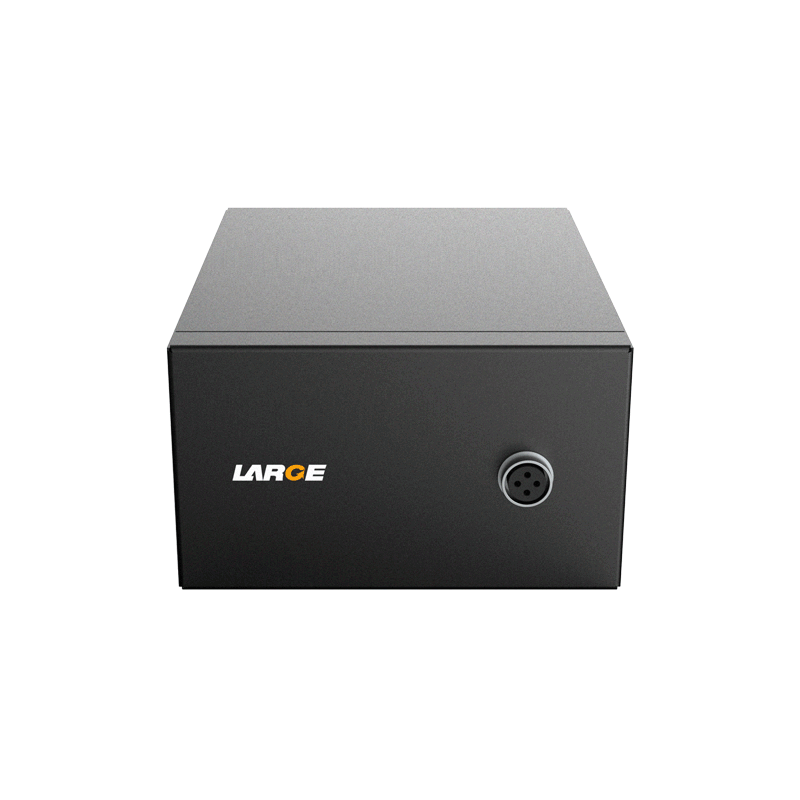

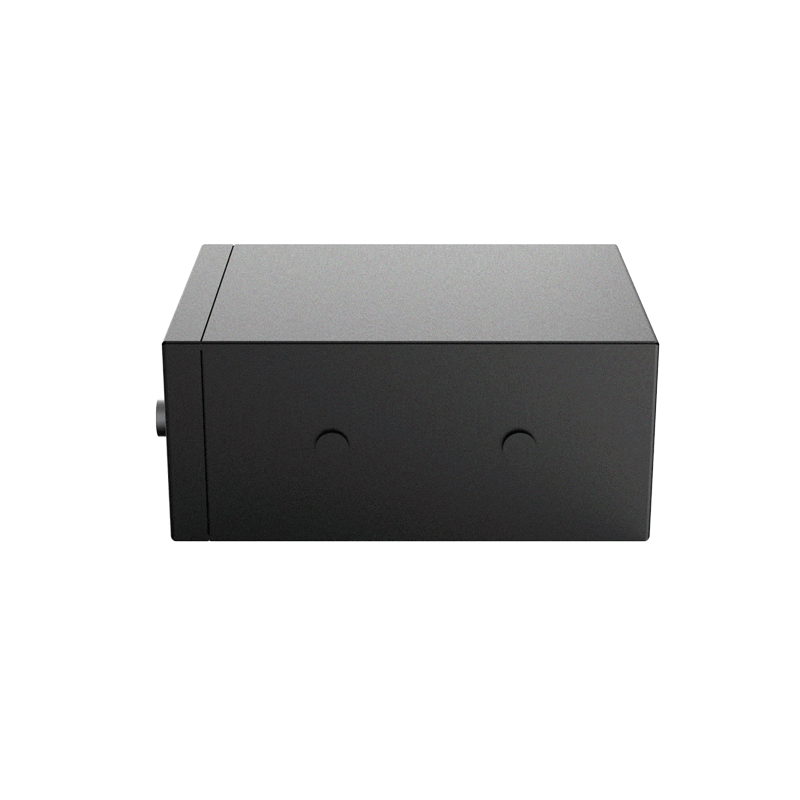

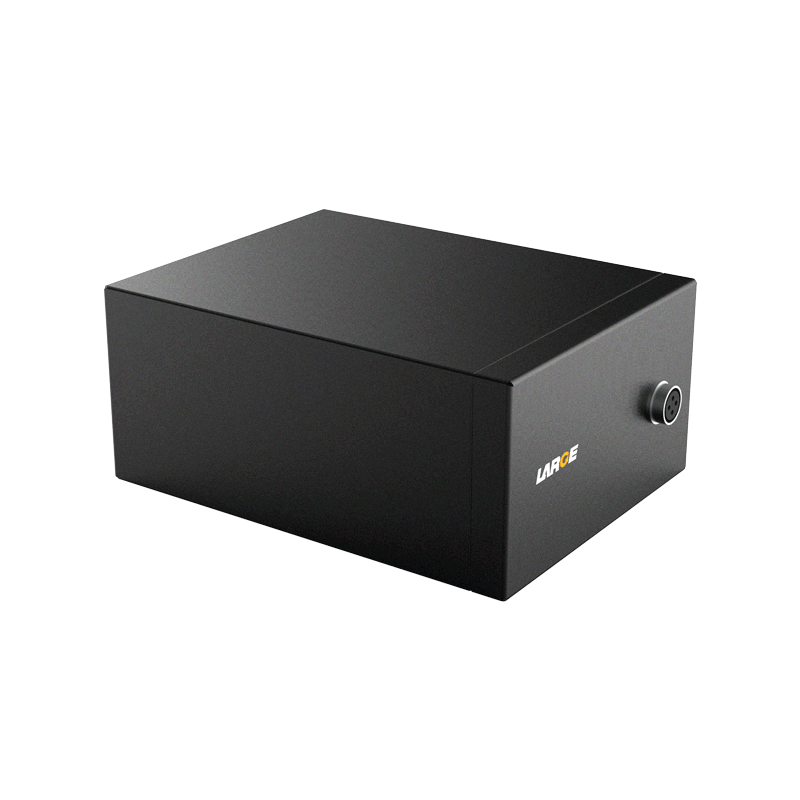

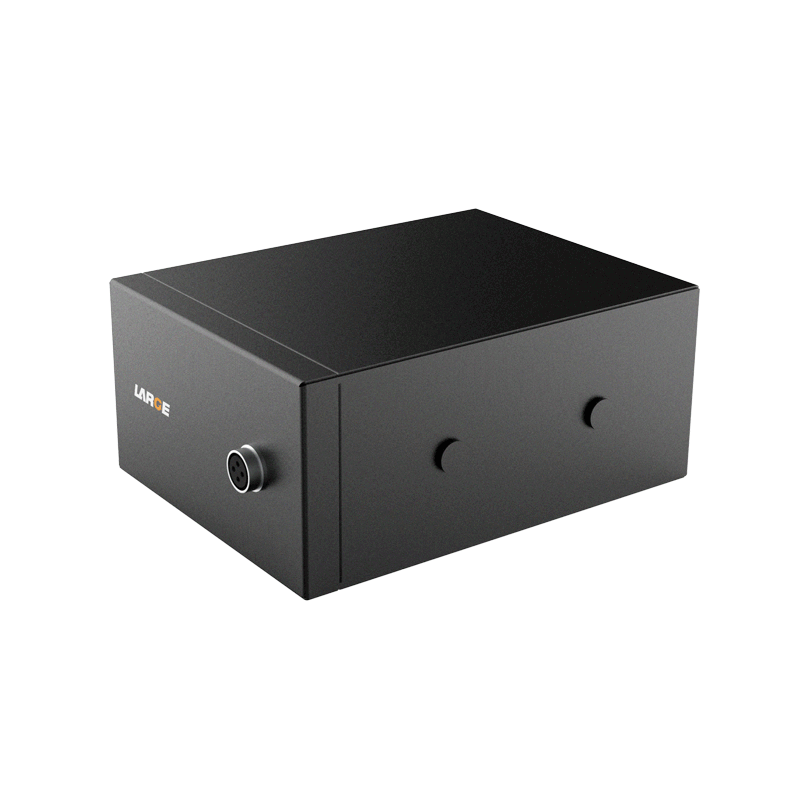

18650 25.2V 20Ah Power Lithium Battery for Drilling Machine

18650 25.2V 20Ah Power Lithium Battery for  Drilling Machine
18650 25.2V 20Ah Power Lithium Battery for  Drilling Machine
18650 25.2V 20Ah Power Lithium Battery for  Drilling Machine
18650 25.2V 20Ah Power Lithium Battery for  Drilling Machine

Product Detail

Product number: 16AQ005-03

Cell model:18650/3.6V/3.35Ah

Battery specification: 18650/7S6P/25.2V/20Ah

Nominal voltage:25.2V

Nominal capacity:20Ah

Charging voltage: 29.4V

Charging current: ≤6A

Discharging current: 10A

Instant discharging current: 20A

End-off voltage: 19.6V

Internal resistance: ≤200mΩ

Battery weight: 3Kg

Product dimension: 191×145×84mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~50℃

Storage temperature: -20~40℃

Temperature protection: 65℃±5℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.

Application field: electric tool, drilling machine


Product features

Shockproof: fill in the inside cold rolling metal plate housing by shockproof structure design, which meets the requirements of good security and nice reliability.

Large current: large current output and the largest output is 3C.

Data communication management: adopt software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
*
*
