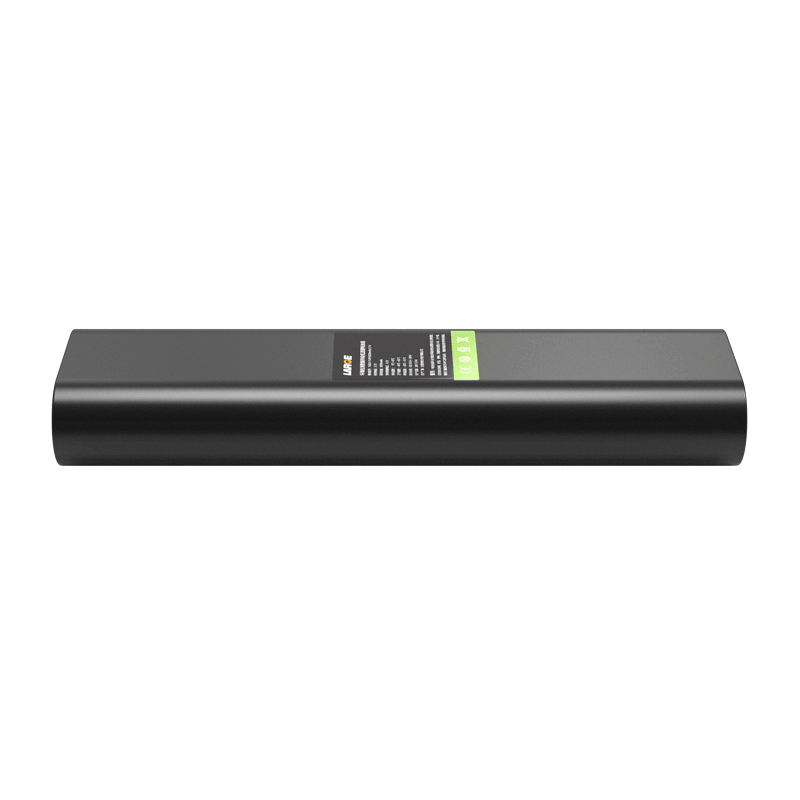

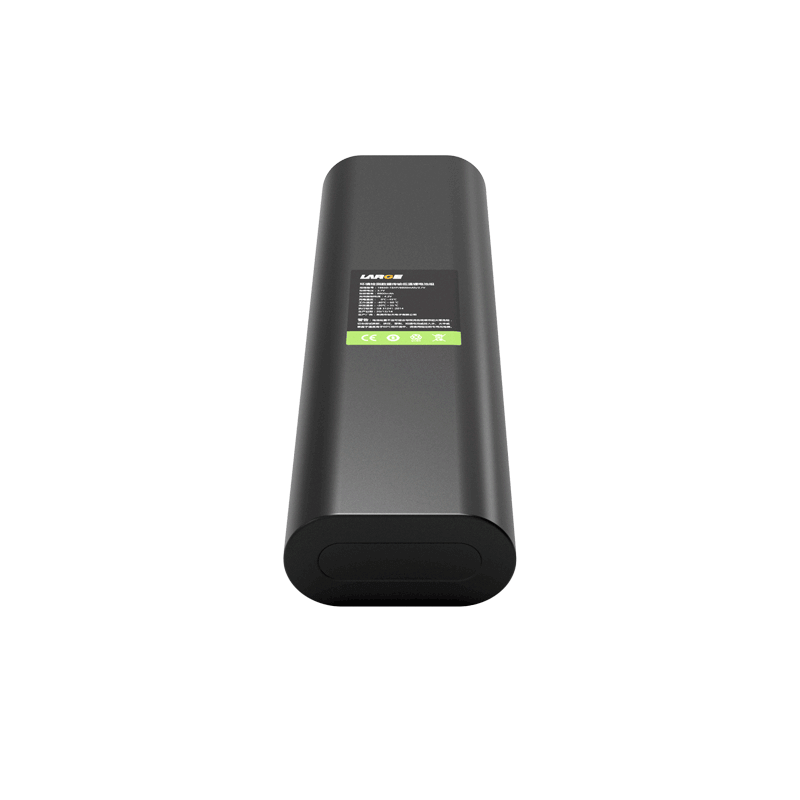

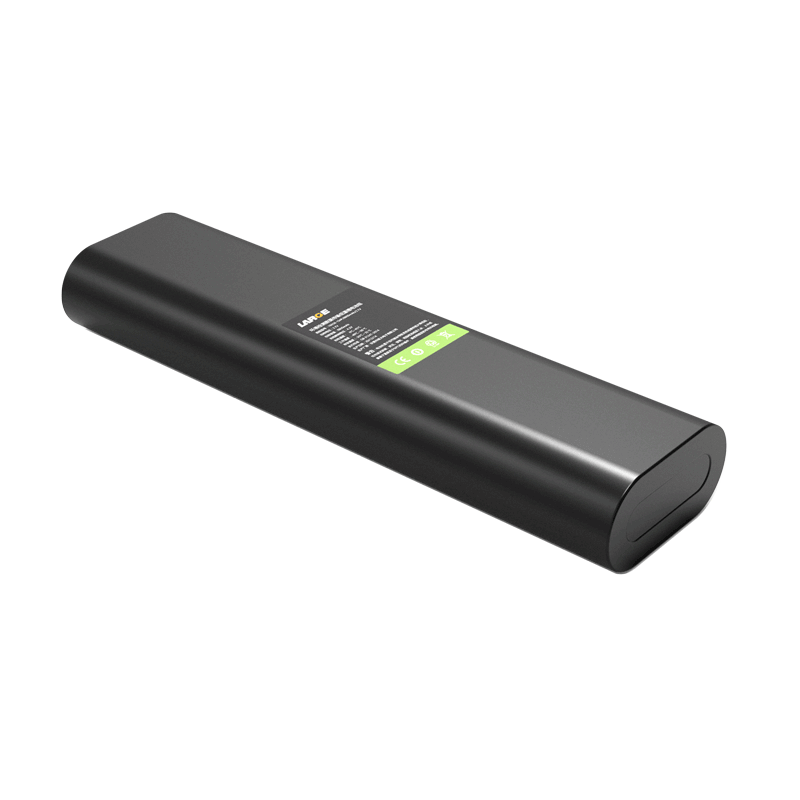

18650 3.7V 8800mAh Low Temperature Battery LARGE Battery Ternary Battery for Environmental Detection Data Transmission

Product Number: 33DZ016-01

Cell model: 18650/3.7V/2200mAh

Battery specification: 18650-1S4P/8800mAh/3.7V

Nominal voltage: 3.7V

Nominal capacity: 8800mAh

Charging voltage: 4.2V

Charging current: ≤3A

Discharging current: 3A

Instantaneous discharge current: 4A

Discharge cut-off voltage: 2.5V

Finished product internal resistance: 200 mΩ or less

Battery weight: 200g

Product dimension: 136×38×20mm (L×W×H)

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60℃

Storage temperature: -20 ~ 35℃

Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.

Application: Environment detection data transmission
