22 Years' Battery Customization

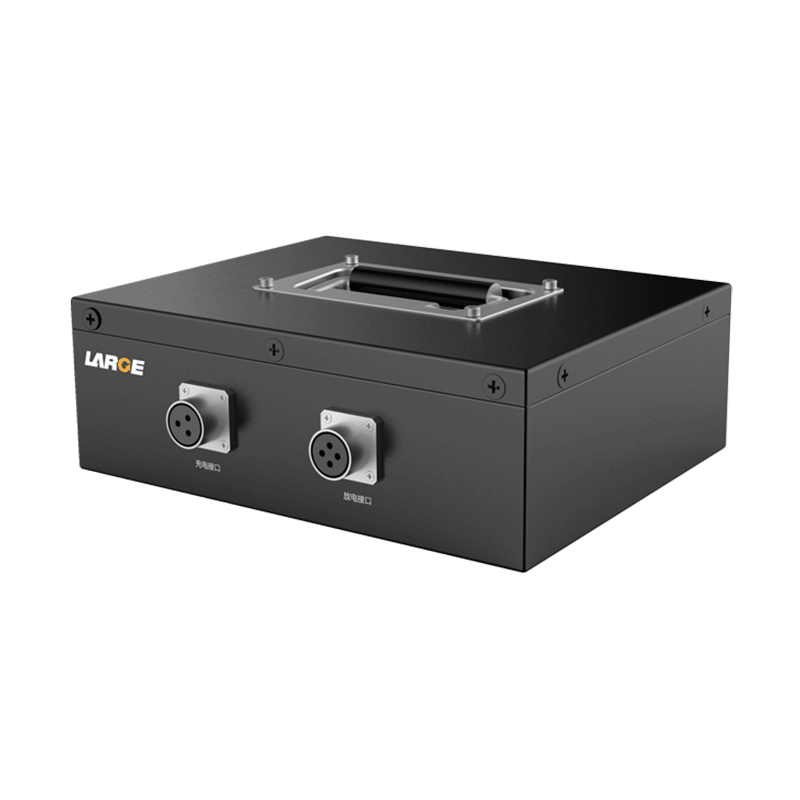

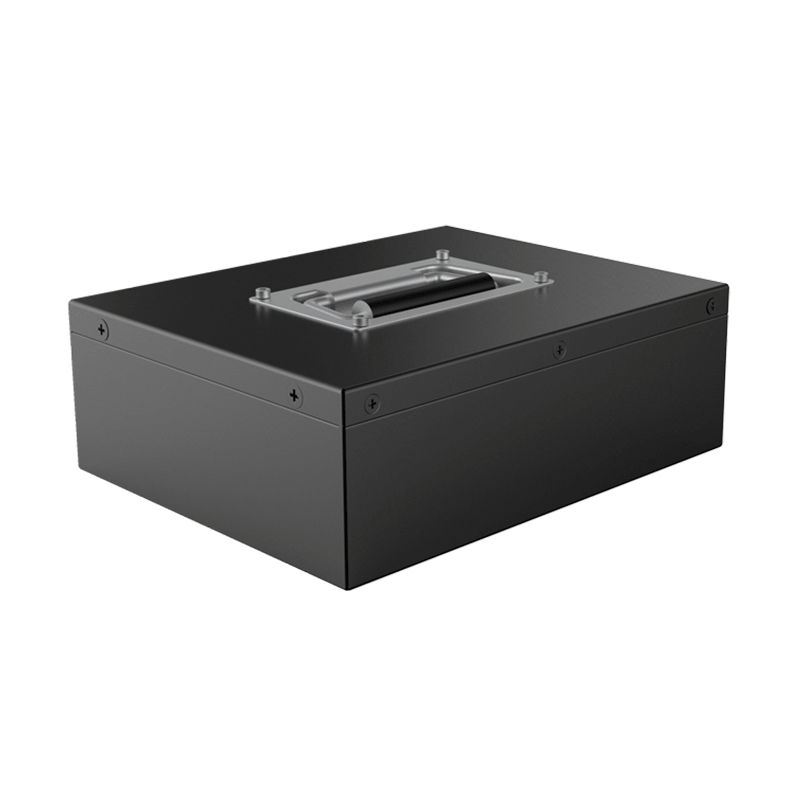

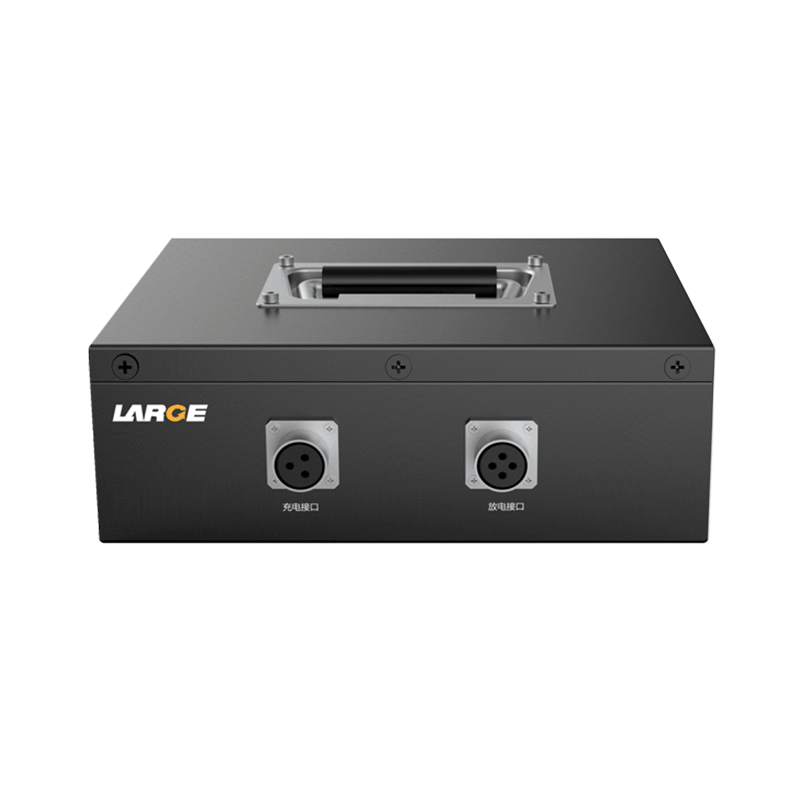

26650 25.6V 20Ah LiFePO4 Battery for Photovoltaic Control Box with RS485 Communication Port

26650 25.6V 20Ah LiFePO4 Battery for Photovoltaic Control Box with RS485 Communication Port
26650 25.6V 20Ah LiFePO4 Battery for Photovoltaic Control Box with RS485 Communication Port
26650 25.6V 20Ah LiFePO4 Battery for Photovoltaic Control Box with RS485 Communication Port
26650 25.6V 20Ah LiFePO4 Battery for Photovoltaic Control Box with RS485 Communication Port

Product Detail

Product number: 04EQ0100-01

Cell model:26650/3.2V/3.3Ah

Battery specification: 26650/8S6P/25.6V/20Ah

Nominal voltage:25.6V

Nominal capacity:20Ah

Charging voltage: 29.2V

Charging current: ≤10A

Discharging current: 10A

Instant discharging current: 20A

End-off voltage: 20V

Internal resistance: ≤200m?

Battery weight: 6kg

Product dimension: 250×200×85(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60 ℃

Storage temperature: -20~40 ℃

Battery case: cold rolling and metal plate

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, etc.

Application field: photo-voltaic controller, photovoltaic auxiliary product


Product features

1. Dustproof and shock-resistant: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of dustproof and shock-resistant.

2. Reliable connection: apply aviation connector, which is efficient, safe and reliable.

3. Charge automatically: charge automatically when the voltage decreases to 80%.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

*
*
*
