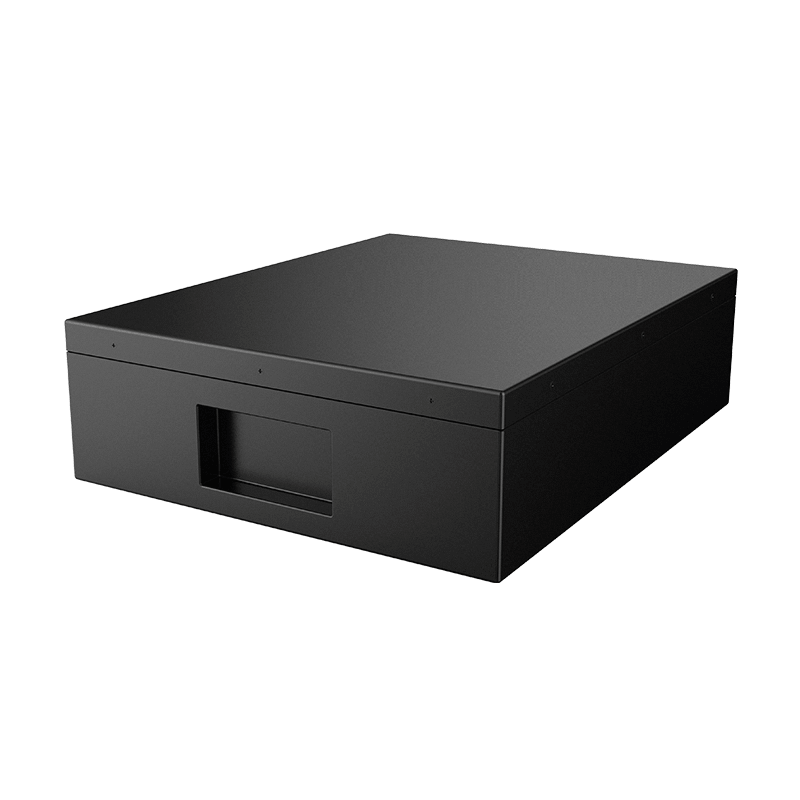

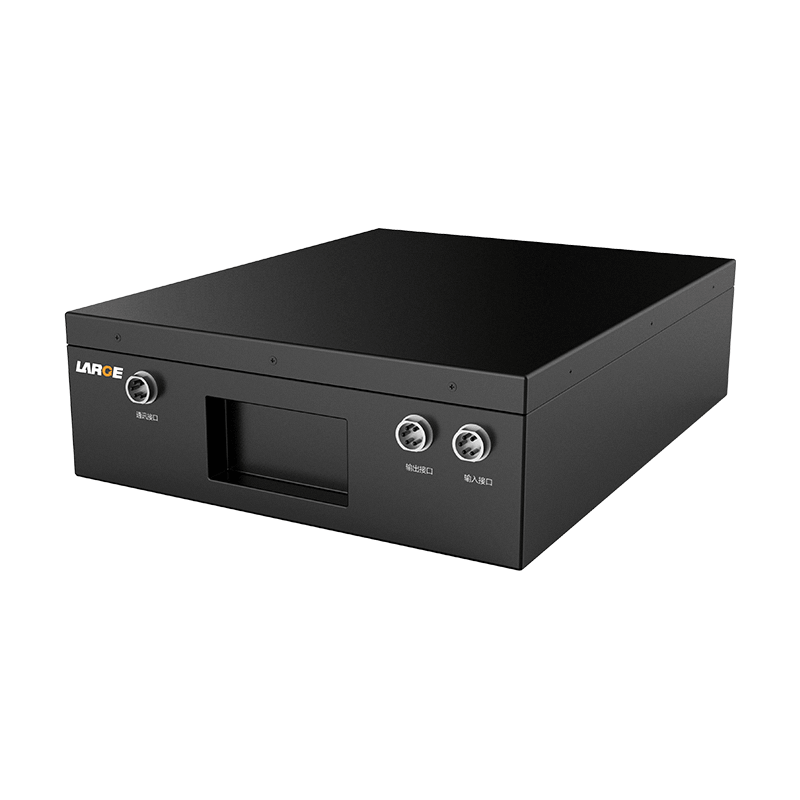

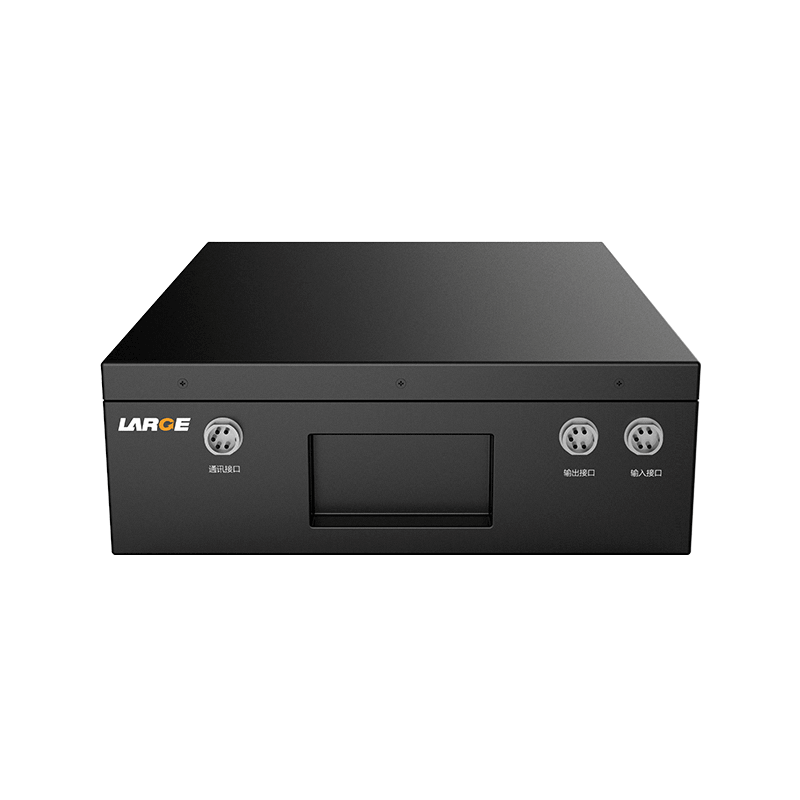

Custom Lithium ion Battery Pack

26650 25.6V 40Ah Lifepo4 battery for industrial backup power supply with Can communication

  • Model number:30AQ035-01

  • Nominal voltage:25.6V

  • Nominal capacity:40000mAh

  • Battery cell:26650/3200mAh/3.2V

  • Dimension:365*275*95mm(Max)

  • Application:industrial backup power

Product Detail

Product number: 30AQ035-01

Cell model:26650/3200mAh/3.2V

Battery specification: 26650-8S13P-40Ah-25.6V

Nominal voltage:25.6V

Nominal capacity:40Ah

Charging voltage: 29.2V

Charging current: ≤20A

Discharging current: 20A

Instant discharging current: 20A

End-off voltage: 20V

Internal resistance: ≤200mΩ

Battery weight: 15Kg

Product dimension: 365*275*95mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55℃

Storage temperature: -20~45℃

Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection, overcurrent protection, equilibrium, 232 & 485 communication, etc.

Application field: industrial backup power


Product features

1. Current: the maximum continuous discharging current is 20A.

2. Data communication management: adopt imported software management chip, CAN communicating function, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

3. Battery feature: the battery has long cycle life, which is 2000 cycles. It can keep charging and discharging under large power.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
