Custom Lithium ion Battery Pack

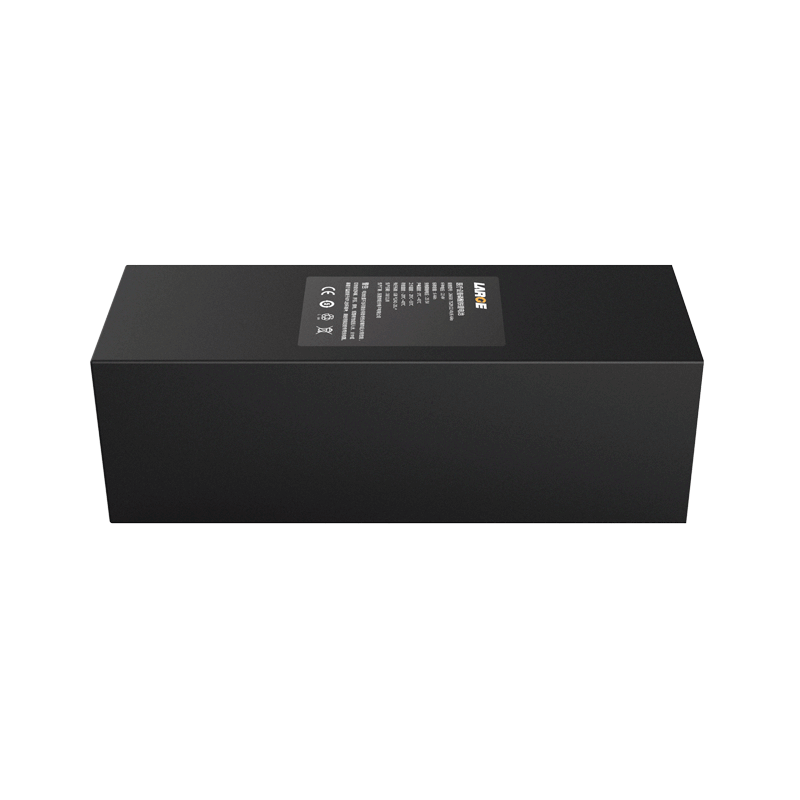

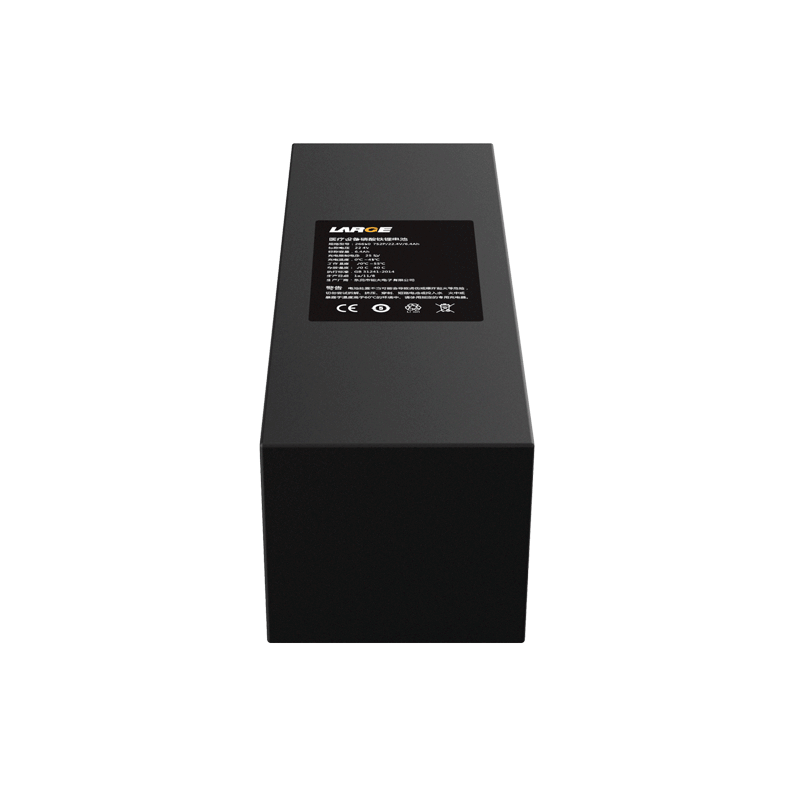

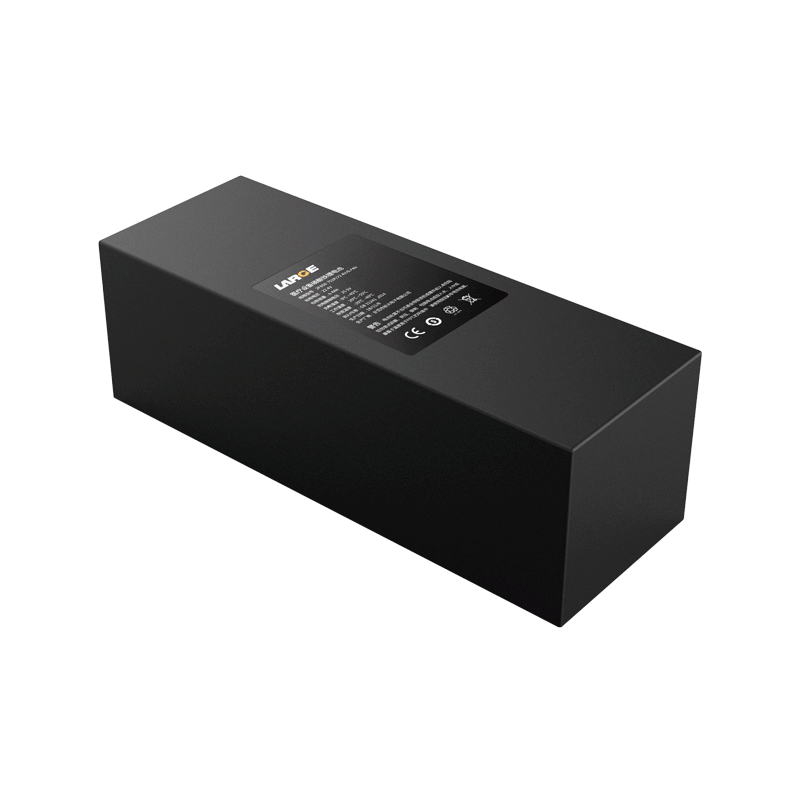

26650 22.4V 6.4Ah LiFePO4 battery for Medical Device

  • Model number:30AQ188-01

  • Nominal voltage:22.4V

  • Nominal capacity:6400mAh

  • Battery cell:26650/3.2V/3.2Ah

  • Dimension:200*70*64mm(Max)

  • Application:laptop

Product Detail

Cell model:26650/3.2V/3.2Ah

Battery specification: 26650-7S2P/22.4V/6.4Ah

Nominal voltage:22.4V

Nominal capacity:6.4Ah

Charging voltage: 25.5V

Charging current: 2A

Discharging current: 3A

Instant discharging current: 5A 5s

End-off voltage: 20V

Internal resistance: ≤200mΩ

Battery weight: 1.7kg

Product dimension: 200*70*64mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55℃

Storage temperature: -20~40℃

Temperature protection: 60℃±5℃

Battery case: plastic housing

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, power display, low power alarm, etc.

Application field: laptop


Product features

1.Paremeter function: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, power display, low power alarm, etc.

2. Data communication management: adopt TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

3. The battery pack has good security, national standard, stable performance and long cycle life.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.


*
*
*
