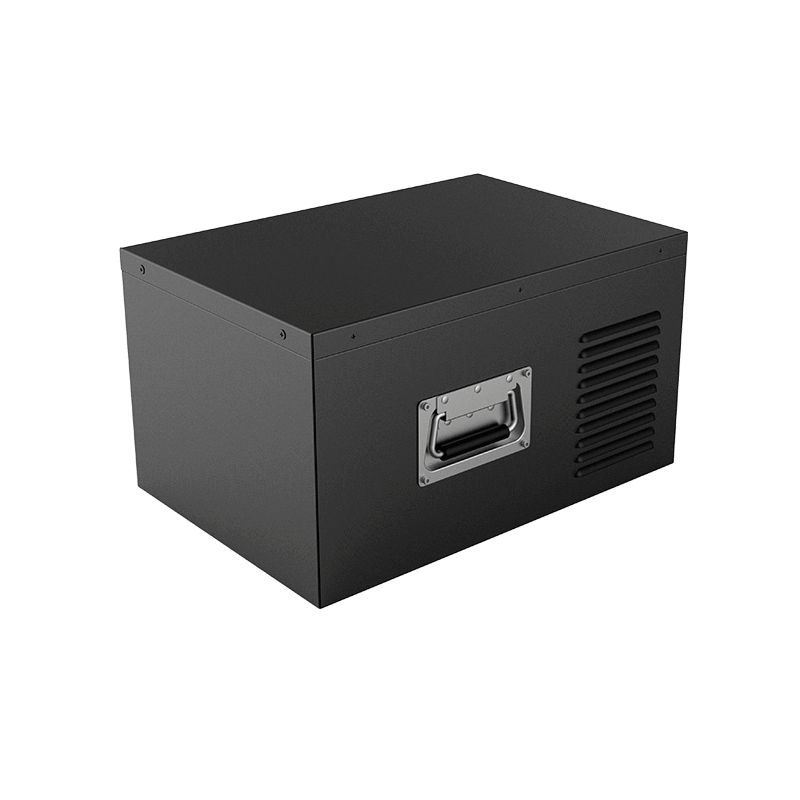

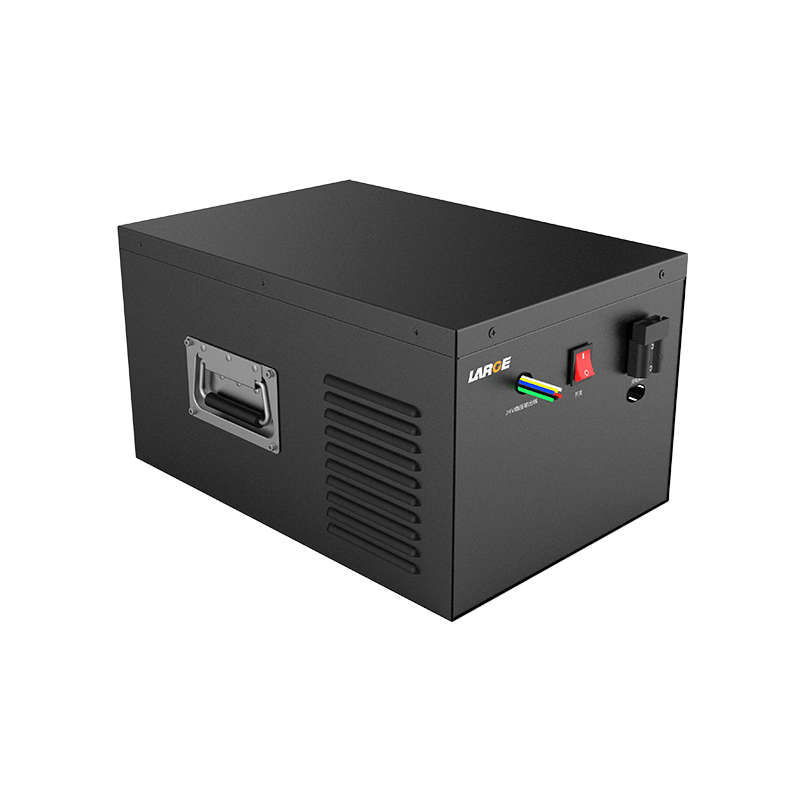

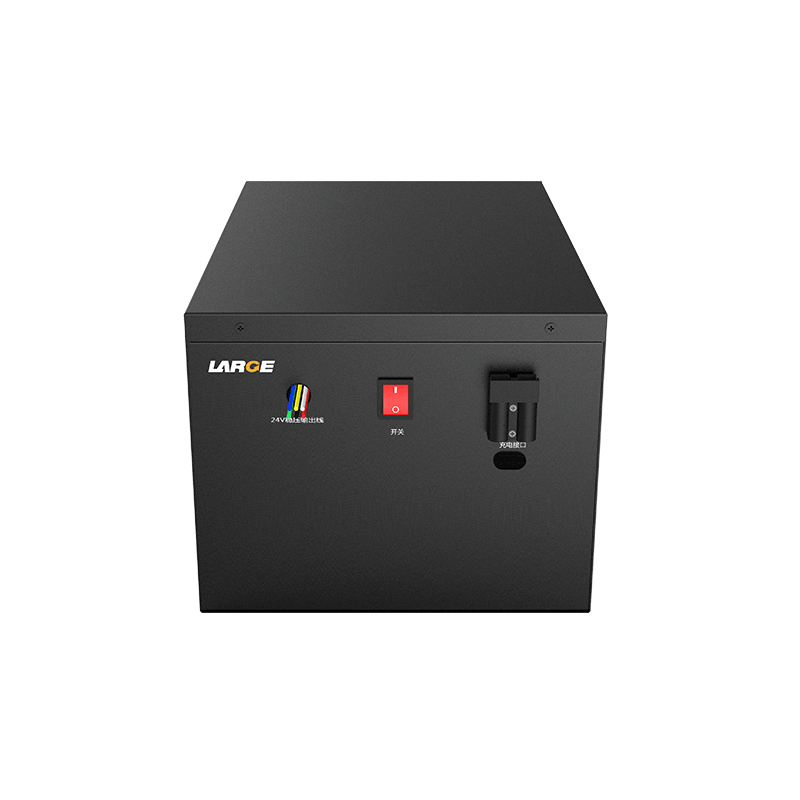

25.6V 100Ah LiFePO4 Battery for Industrial Backup Power Supply with RS485 Communication

Product Detail

Product number: 31AQ049-01

Cell model:CA100/100Ah/3.2V

Battery specification: 10S1P/25.6V/20Ah

Nominal voltage:25.6V

Nominal capacity:100Ah

Charging voltage: 29.2V

Charging current: ≤20A

Discharging current: 20A

Instant discharging current: 20A

End-off voltage: 20V

Internal resistance: ≤100mΩ

Battery weight: 27Kg

Product dimension: 440*280*243mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~55℃

Storage temperature: -20~45℃

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, equilibrium, RS485 communication, etc.

Application field: industrial backup power

Product features

1. Current: the maximum continuous discharging current is 20A.

2. Data communication management: adopt imported software management chip, 485 communicating function, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

3. Battery feature: the battery has very long cycle life, which is 2000 cycles. It can keep charging and discharging under large power.

4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
