Custom Lithium ion Battery Pack

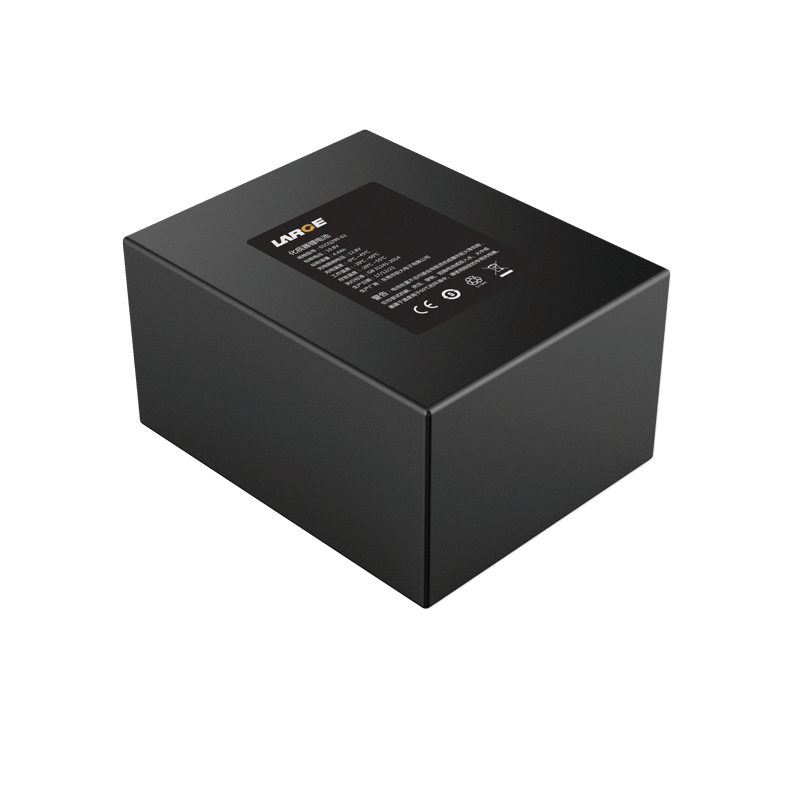

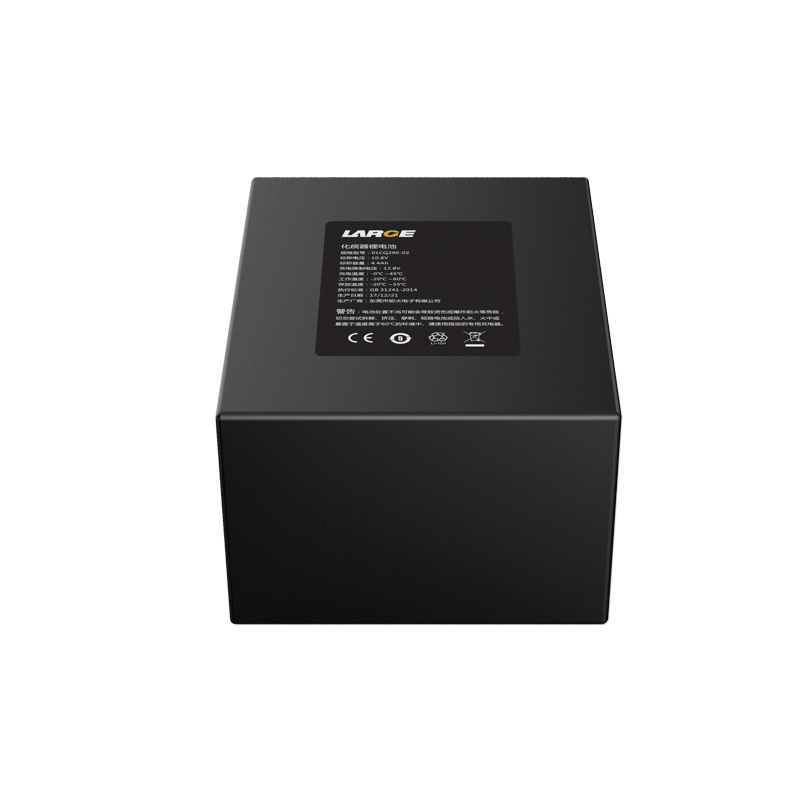

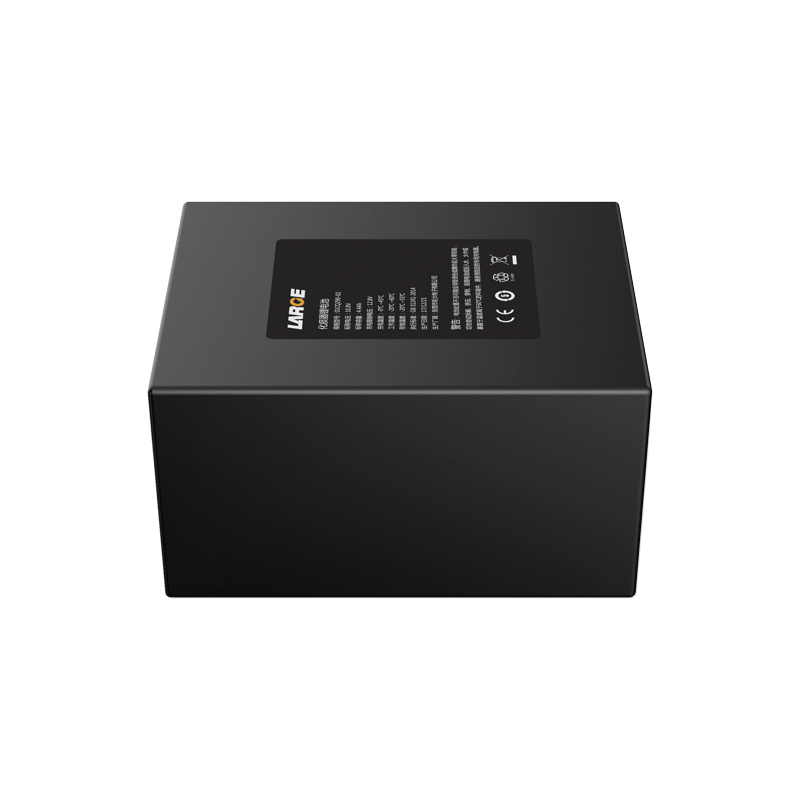

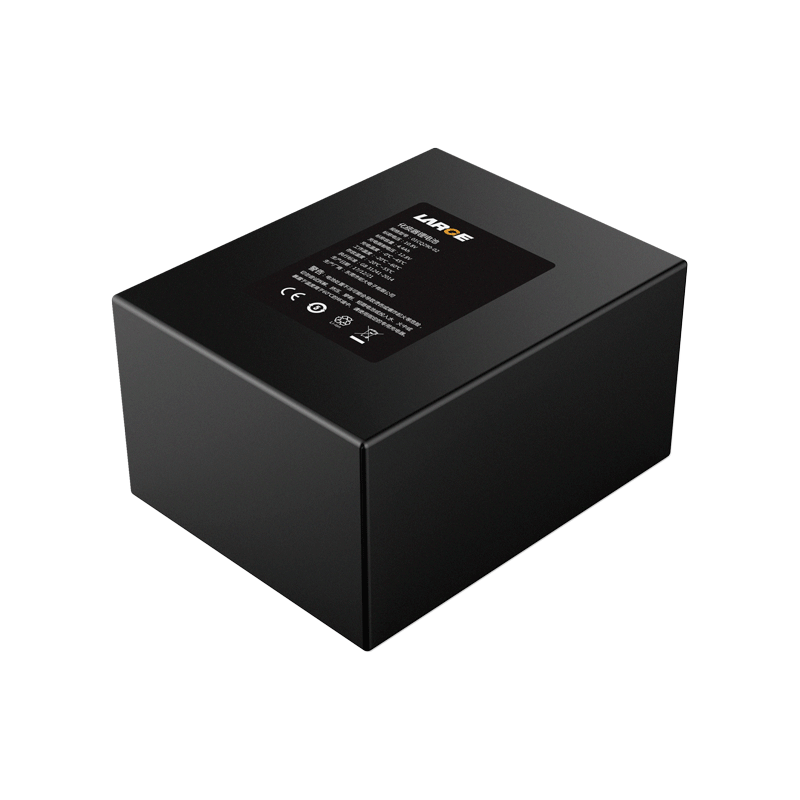

10.8V 4.4Ah 18650 Lithium Ion Battery BIC Battery for Phlegm Apparatus

  • Model number:01CQ290-02

  • Nominal voltage:10.8V

  • Nominal capacity:4400mAh

  • Battery cell:18650/3.6V/2.2Ah

  • Dimension:72*57*38.5mm(Max)

  • Application:phlegm apparatus, medical device, etc.

Product Detail

Product number: 01CQ290-02

Cell model:18650/3.6V/2.2Ah

Battery specification: 18650-3S2P/10.8V/4.4Ah

Nominal voltage:10.8V

Nominal capacity:4.4Ah

Charging voltage: 12.8V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 3.0A

End-off voltage: 9.0V

Internal resistance: ≤250mΩ

Battery weight: 300g

Product dimension: 72*57*38.5mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Battery case: blue PVC

Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: phlegm apparatus, medical device, etc.

*
*
*
