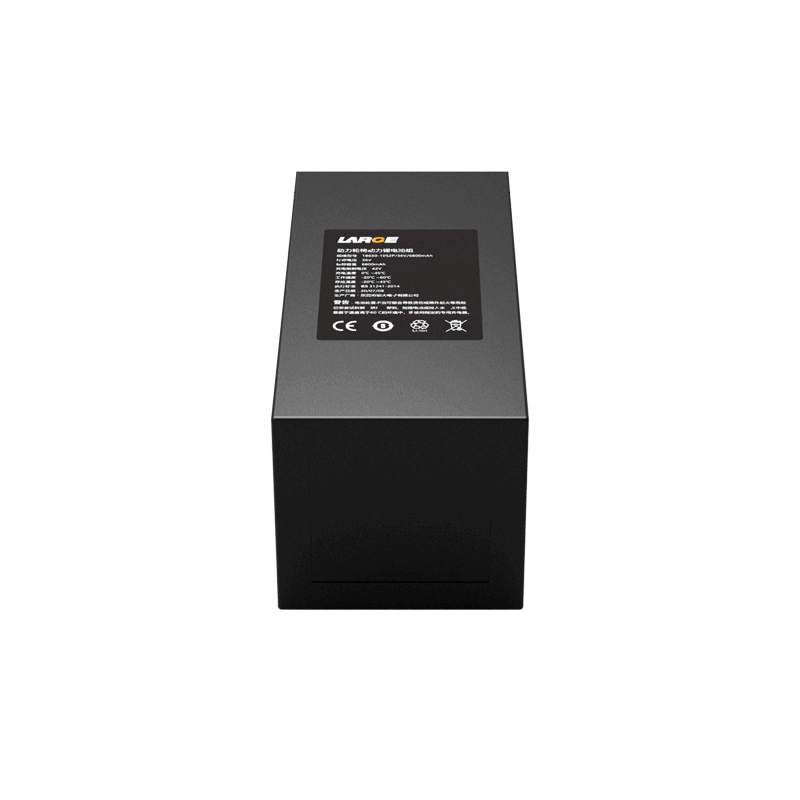

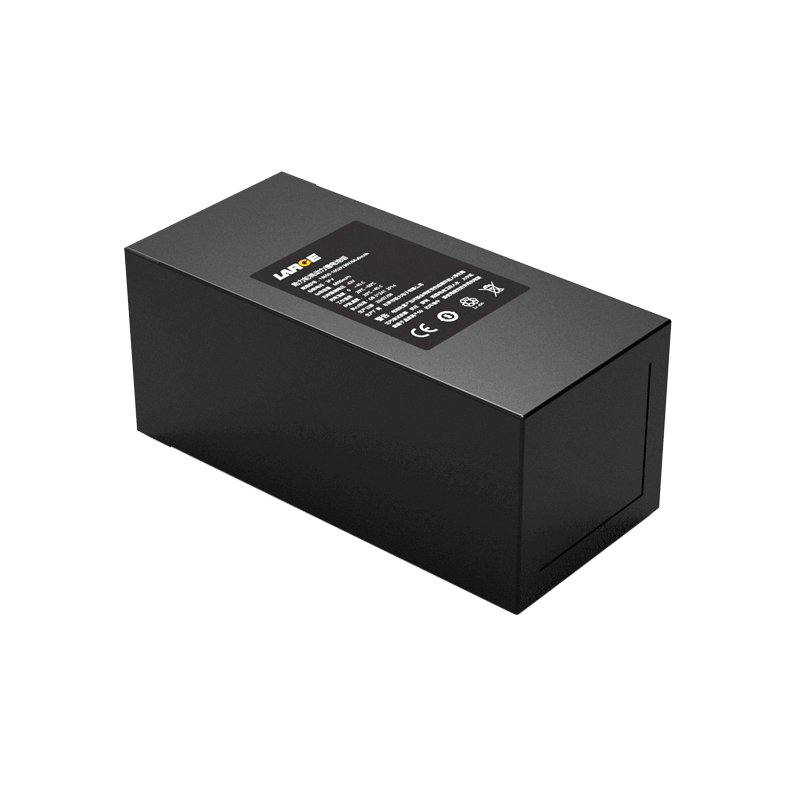

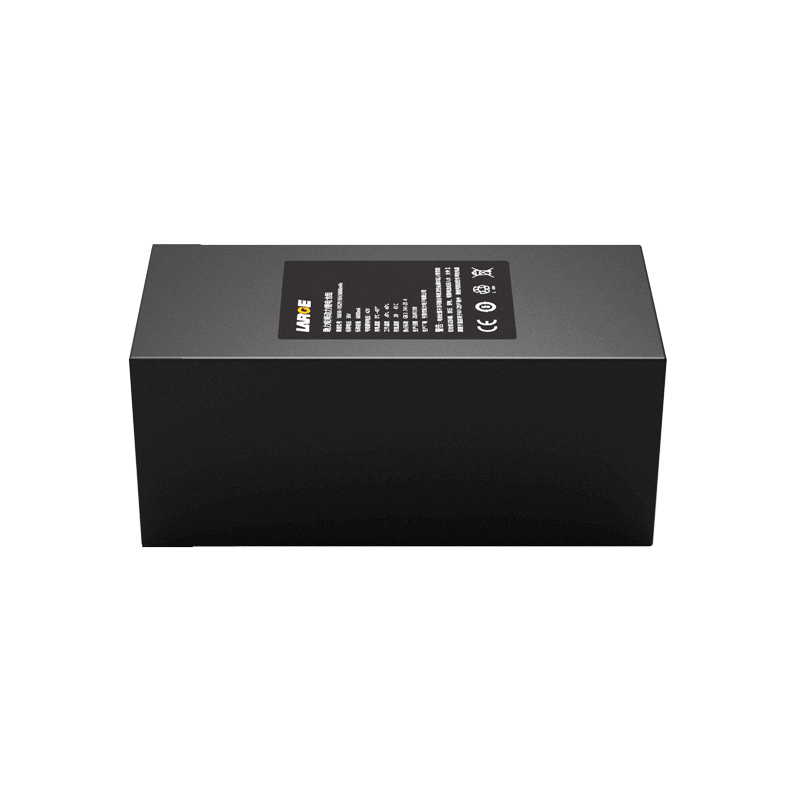

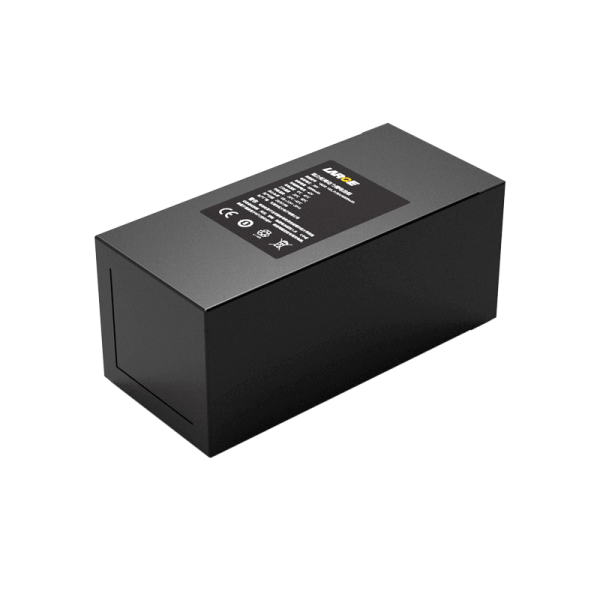

36V 6800mAh Samsung Power Lithium Battery Pack For Power Assisted Wheelchair

Product Detail

Project number: 37DZ009-02

Cell model:18650/3.6V/3400mAh

Battery specification: 18650-10S2P/36V/6800mAh

Nominal voltage:36V

Nominal capacity:6800mAh

Charging voltage: 42V

Charging current: ≤3.4A

Discharging current: 6.8A

Instant discharging current: 20A

End-off voltage: 25V

Internal resistance: ≤250mΩ

Battery weight: 945g

Product dimension: 69*74*156mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~45℃

Battery case: PVC

Lithium ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection, etc.

Application field: power assisted wheelchair

*
*
*
